Schneider Electric NSYKDB12U6F 19 inch Wall cabinet 12 U Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Number of doors: 1
- Type of ventilation: Without
- Design of the surface: Powder-coated
- Profile rail design: Without
- Max. load 50 kg
- With attic: Yes
- With earthing: No.
- With front door: Yes
- With side walls: Yes
- Mounting level: Front
- RAL number: 7035
- Grid pitch 482.6 mm (19 inches)
- Protection class (NEMA): 1
- Dismantling: Yes
- Suitable for server rack cabinet (inch)
19 inch
- Rack unit
12 U
- Dim
(W x H x D) 600 x 618 x 600 mm
- Material
Steel
- Content
1 pc(s)
- Factory colour
Grey
- Width
600 mm
- Height
618 mm
- Depth
600 mm
IP20
- Type
With fixed frame
- Product type
Wall cabinet
Documents & Downloads
Datasheet
Datasheet 3755702 Schneider Electric NSYKDB12U6F 19 inch Wall cabinet 12 U Grey
User & Safety Instructions
User & Safety Instructions 3755702 Schneider Electric NSYKDB12U6F 19 inch Wall cabinet 12 U Grey
Description

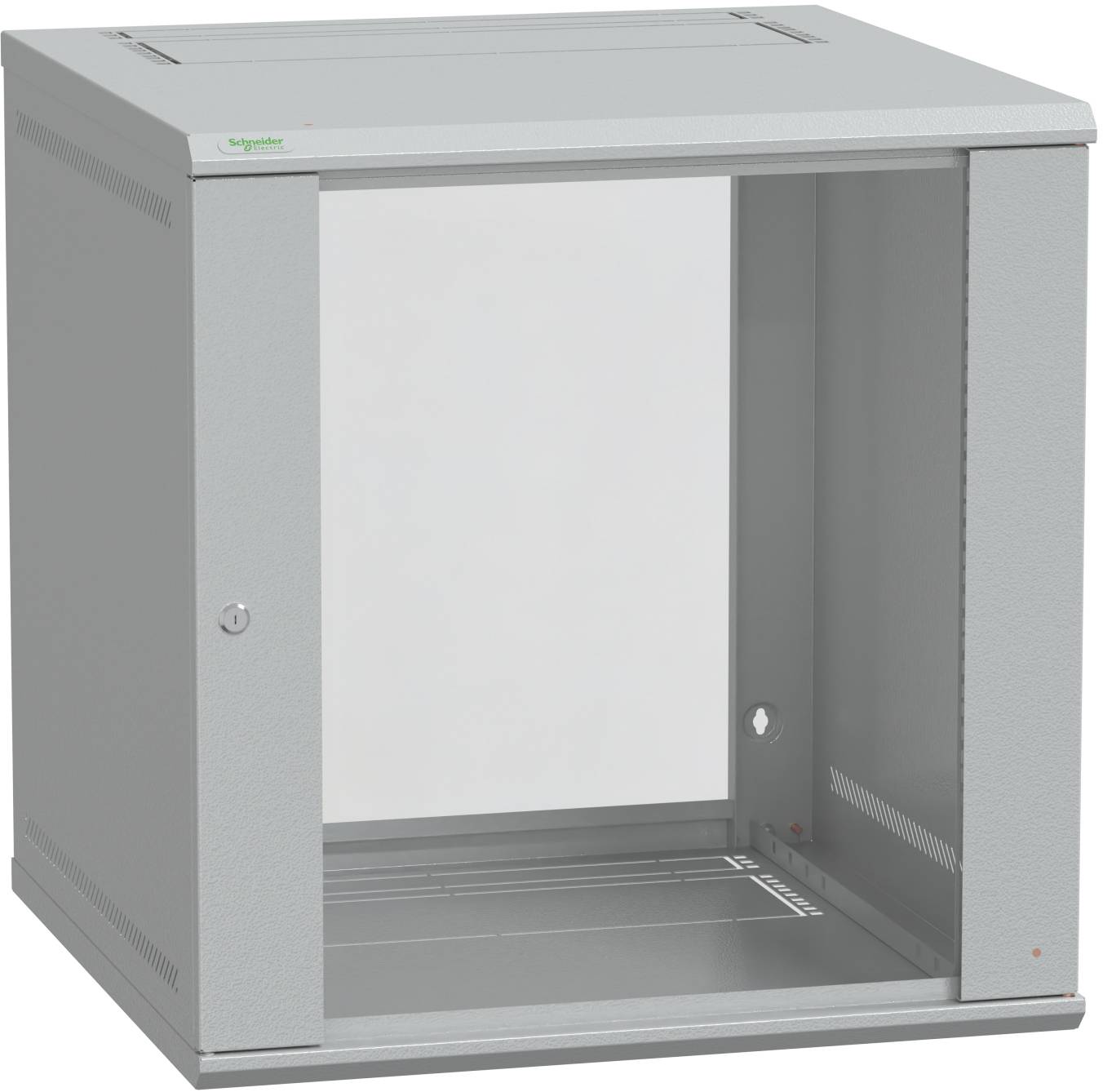

This product is a flat-packed wall housing, dismantled in 1 package, made of welded steel plate, powder coated, leather structure surface, RAL 7035 light gray epoxy polyester. 12U, 600 mm wide and 600 mm deep. The housing consists of a body, a pair of 19-inch fixed stands and a transparent door made of security glass with key No. 333.
