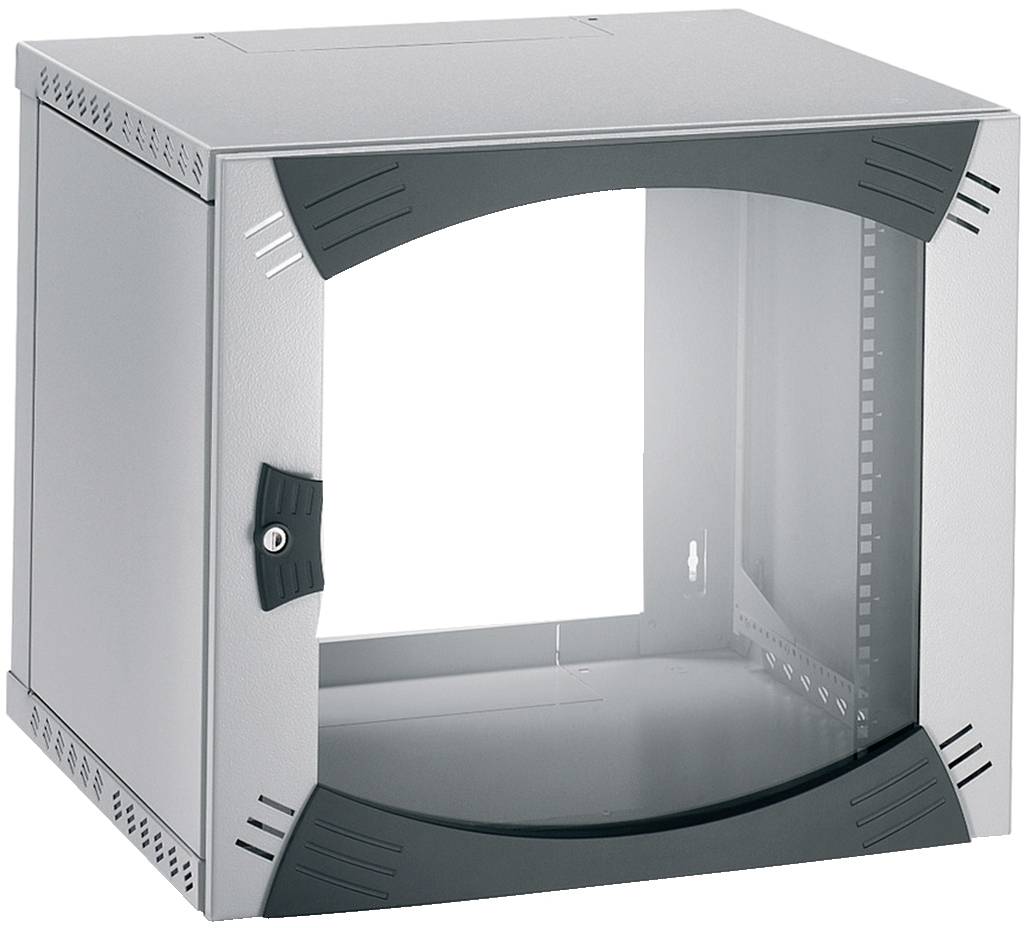

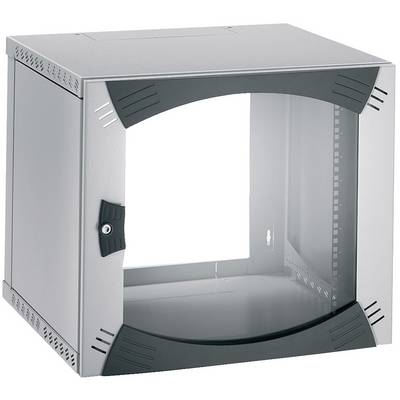

Schneider Electric NSYOPB12U4FR 19 inch Wall cabinet 12 U Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Number of doors: 1
- Type of ventilation: Without
- Design of the surface: Powder-coated
- Profile rail design: Without
- Max. load 50 kg
- With attic: Yes
- With earthing: No.
- With front door: Yes
- With side walls: Yes
- Mounting level: Front and rear
- RAL number: 7035
- Grid pitch 482.6 mm (19 inches)
- Protection class (NEMA): 1
- Dismantling: Yes
- Suitable for server rack cabinet (inch)
19 inch
- Rack unit
12 U
- Dim
(W x H x D) 600 x 650 x 400 mm
- Material
Steel
- Content
1 pc(s)
- Factory colour
Grey
- Width
600 mm
- Height
650 mm
- Depth
400 mm
IP20
- Type
With fixed frame
Grey
600 mm
With permanent frame
650 mm
400 mm
7035
1
None
50 kg
Steel
12
IP20
Powder coating
Front and rear
None
TRUE
FALSE
TRUE
TRUE
TRUE
482.6 mm (19 inch)
1
- Product type
Wall cabinet
Documents & Downloads
Datasheet
Datasheet 3755602 Schneider Electric NSYOPB12U4FR 19 inch Wall cabinet 12 U Grey
User & Safety Instructions
User & Safety Instructions 3755602 Schneider Electric NSYOPB12U4FR 19 inch Wall cabinet 12 U Grey
Description
This Actassi OPB is a wall housing made of folded and welded steel plate, powder coated, with leather structure, RAL 7035 light gray epoxy polyester. The housing consists of a body, 2 folding and removable side panels, 19-inch stands and a transparent door made of security glass with key No. 333. Protection against foreign bodies IP20 and against shock load IK10 for the simple door. A fixed 19-inch rack that can hold up to 3 kg per unit and up to 50 kg per enclosure according to IEC62208. The dimensions of this housing are 650 mm in height (or 12 U), 600 mm in width and 400 mm in depth.
