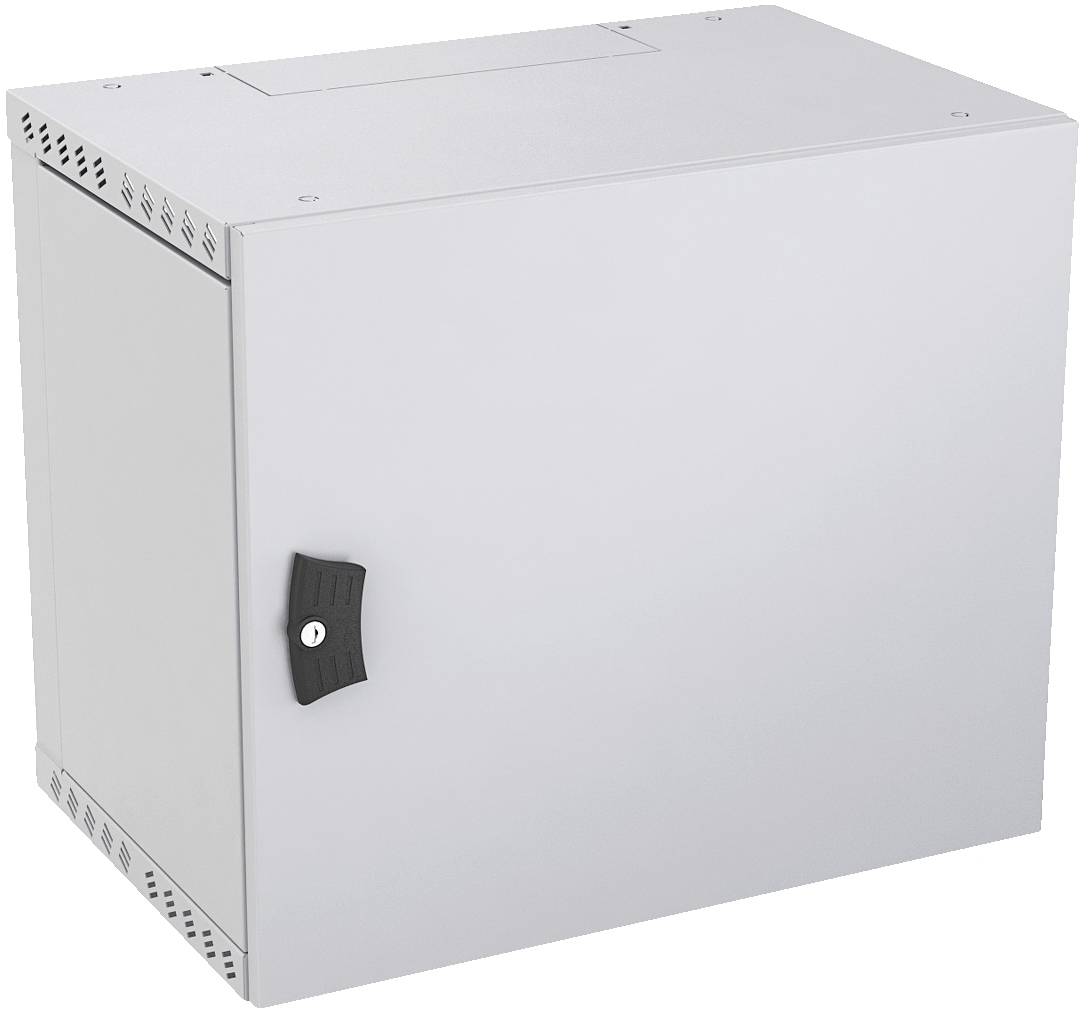

Schneider Electric NSYOPB18U5FR 19 inch Wall cabinet 18 U Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 503.36 / piece)
€
Technical specifications
- Number of doors: 1
- Type of ventilation: Without
- Design of the surface: Powder-coated
- Profile rail design: Without
- Max. load 50 kg
- With attic: Yes
- With earthing: No.
- With front door: Yes
- With side walls: Yes
- Mounting level: Front and rear
- RAL number: 7035
- Grid pitch 482.6 mm (19 inches)
- Protection class (NEMA): 1
- Dismantling: Yes
- Product type
Wall cabinet
- Suitable for server rack cabinet (inch)
19 inch
- Rack unit
18 U
- Dim
(W x H x D) 600 x 915 x 500 mm
- Material
Steel
- Content
1 pc(s)
- Factory colour
Grey
- Width
600 mm
- Height
915 mm
- Depth
500 mm
IP20
- Type
With fixed frame
Documents & Downloads
Datasheet
Datasheet 3755665 Schneider Electric NSYOPB18U5FR 19 inch Wall cabinet 18 U Grey
User & Safety Instructions
User & Safety Instructions 3755665 Schneider Electric NSYOPB18U5FR 19 inch Wall cabinet 18 U Grey
Description
This Actassi OPB is a wall housing made of folded and welded steel plate, powder coated, with leather structure, RAL 7035 light gray epoxy polyester. The housing consists of a body, 2 folding and removable side panels, 19-inch stands and a transparent door made of security glass with key No. 333. Protection against foreign bodies IP20 and against shock load IK10 for the simple door. A fixed 19-inch rack that can hold up to 3 kg per unit and up to 50 kg per enclosure according to IEC62208. The dimensions of this housing are 915 mm in height (or 18 U), 600 mm in width and 500 mm in depth.
