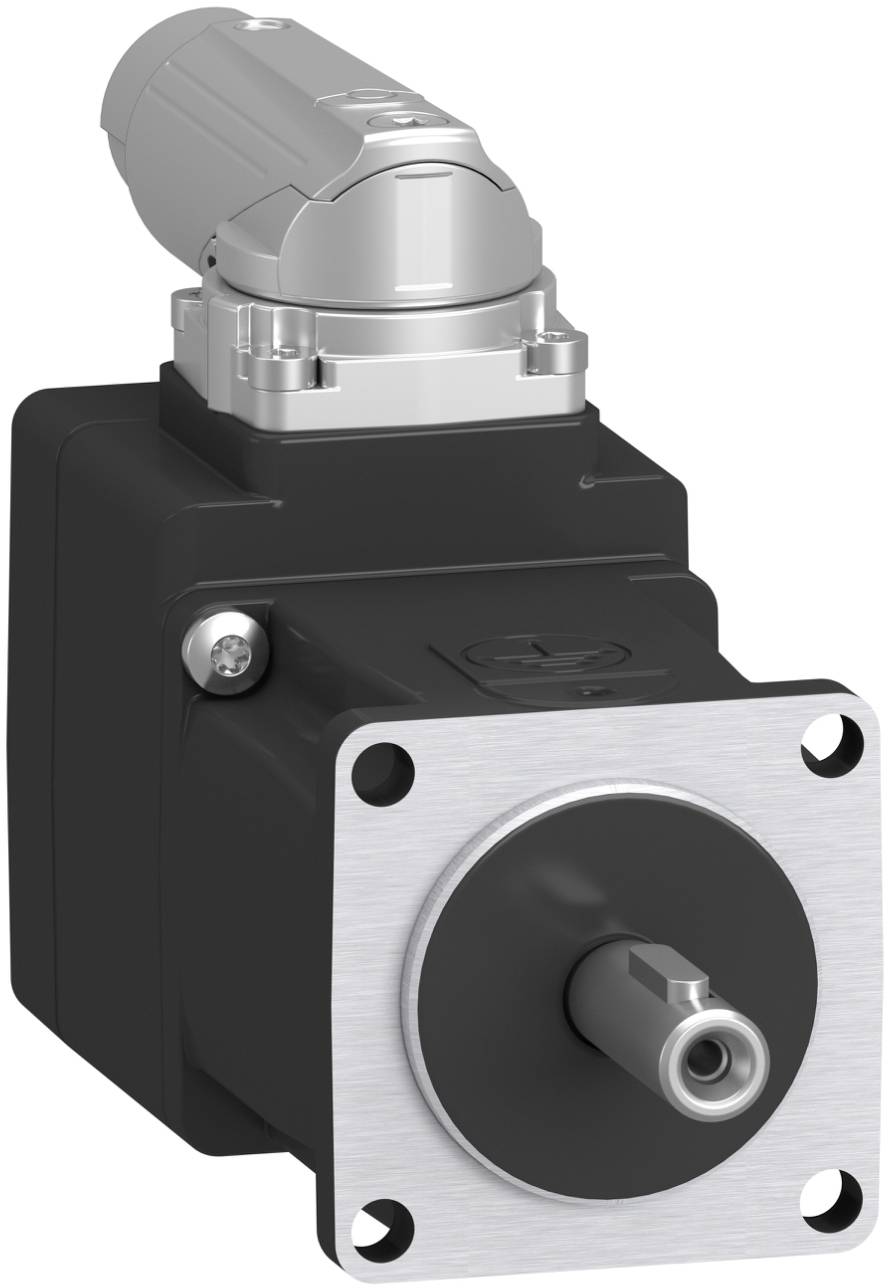

Schneider Electric Servo motor SH30401P1DA4000
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Number of phases: 3
- Shaft end design: Other
- Design: Other
- Load cycle: Other
- Rated frequency 50-60 Hz
- Rated voltage: 230 V
- Operating temperature -15 °C
- Suitable for frequency control: No.
- Intrinsic safety (IS): Without
- Insulation class IEC: Other
- Breakdown torque ratio: 0.75
- Cooling method: Other
- With condensation protection: No.
- With positive temperature coefficient resistor (PTC): No.
- With resistance thermometer detector (RTD): No.
- Motor energy efficiency class: Other
- Voltage type AC
- Housing material: Other
- Overload capability: No.
- Manufacturer part #
SH30401P1DA4000
- Type
SH30401P1DA4000
IP65
- Type
Other
- Number of pins
5
Other
AC
230 V
3
Other
5
Other
50-60 Hz
-15-120 °C
IP65
Other
0.75
FALSE
FALSE
None
FALSE
Other
Other
Other
FALSE
Other
FALSE
- Product type
Servo motor
Documents & Downloads
Datasheet
Datasheet 3756867 Schneider Electric Servo motor SH30401P1DA4000
User & Safety Instructions
User & Safety Instructions 3756867 Schneider Electric Servo motor SH30401P1DA4000
Description
Lexium SH3 servomotor for motion-based automation with PacDrive 3. This range of AC servomotors has a low rotor moment of inertia which enables a high acceleration capability for dynamic applications. Owing to the winding technology, a higher power density results in a compact design This servo has a flange dimension of 40 mm and a motor length of 1 stack. Its winding is optimized for torque and speed. It has a continuous standstill torque of 0.21 Nm and a peak torque of 0.75 Nm. The voltage-dependent rated speed reaches 9000 rpm with a nominal power of up to 0.17 kW. The shaft end is fitted with a key. The absolute value encoder is designed as a multiturn with medium resolution of 15 bits and transmission via DSL. There is no integrated holding brake. The connection is made via hybrid cable for OMC (One-Motor-Cable) with a M17 connector to corresponding Lexium 62 servo drives. The protection class of the shaft is in IP54 and of the housing in IP65.
