Schneider Electric Servo motor SH31403P1BA4000
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Number of phases: 3
- Shaft end design: Other
- Design: Other
- Load cycle: Other
- Rated frequency 50-60 Hz
- Rated voltage: 230 V
- Operating temperature -15 °C
- Suitable for frequency control: No.
- Intrinsic safety (IS): Without
- Insulation class IEC: Other
- Breakdown torque ratio: 90.2
- Cooling method: Other
- With condensation protection: No.
- With positive temperature coefficient resistor (PTC): No.
- With resistance thermometer detector (RTD): No.
- Motor energy efficiency class: Other
- Voltage type AC
- Housing material: Other
- Overload capability: No.
- Manufacturer part #
SH31403P1BA4000
- Type
SH31403P1BA4000
IP65
- Type
Other
- Number of pins
5
Other
AC
230 V
3
Other
5
Other
50-60 Hz
-15-120 °C
IP65
Other
90.2
FALSE
FALSE
None
FALSE
Other
Other
Other
FALSE
Other
FALSE
- Product type
Servo motor
Documents & Downloads
Datasheet
Datasheet 3757323 Schneider Electric Servo motor SH31403P1BA4000
User & Safety Instructions
User & Safety Instructions 3757323 Schneider Electric Servo motor SH31403P1BA4000
Description

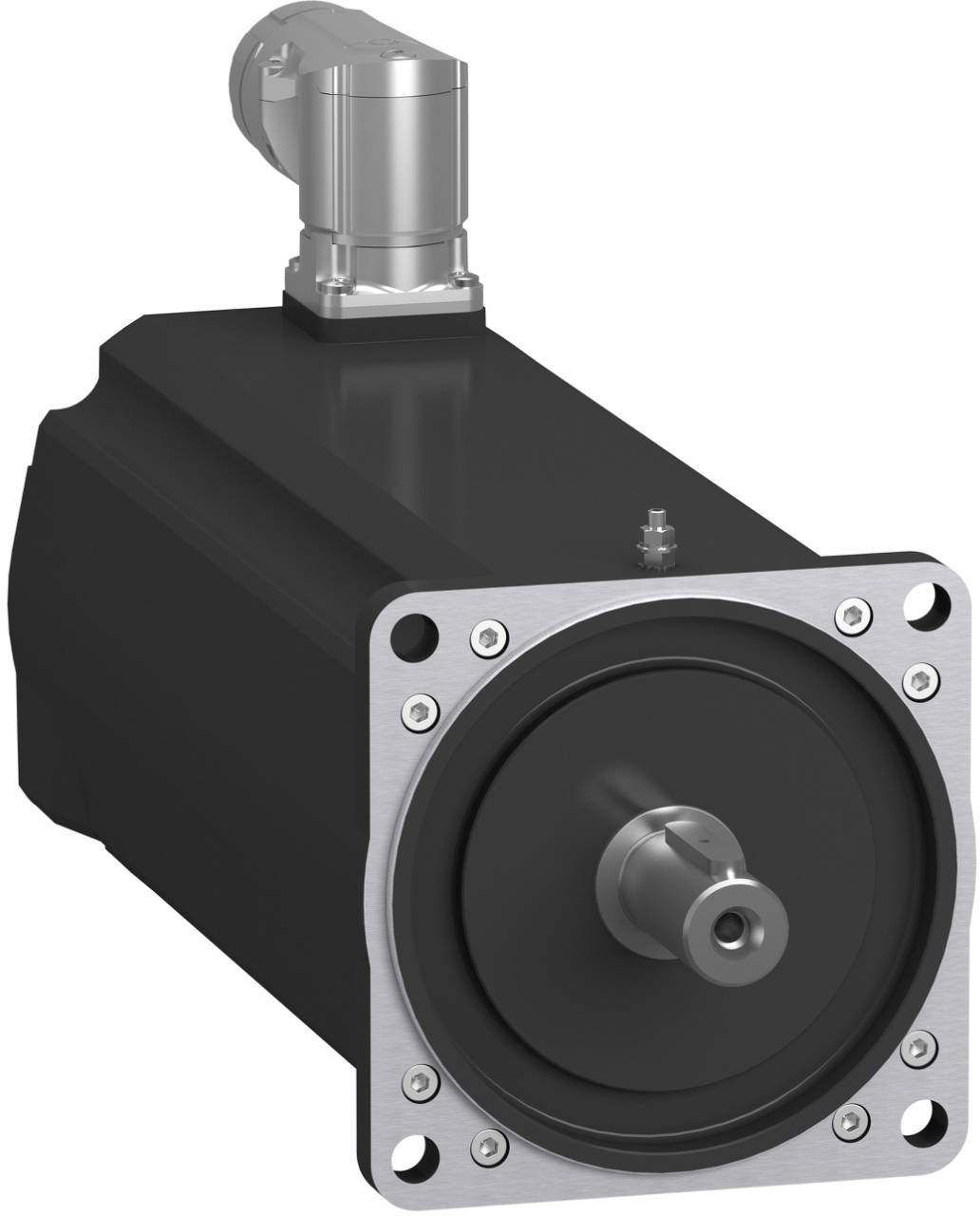

Lexium SH3 servomotor for motion-based automation with PacDrive 3. This range of AC servomotors has a low rotor moment of inertia which enables a high acceleration capability for dynamic applications. Owing to the winding technology, a higher power density results in a compact design This servo has a flange dimension of 140 mm and a motor length of 3 stacks. Its winding is optimized for torque and speed. It has a continuous standstill torque of 27.8 Nm and a peak torque of 90 Nm. The voltage-dependent rated speed reaches 3000 rpm with a nominal power of up to 4.05 kW. The shaft end is fitted with a key. The absolute encoder is designed as a multiturn with high resolution of 18 bits and transmission via DSL. There is no integrated holding brake. The connection is made via hybrid cable for OMC (One-Motor-Cable) with a M40 connector to corresponding Lexium 62 servo drives. The protection class of the shaft is in IP54 and of the housing in IP65.
This text is machine translated.
This text is machine translated.
