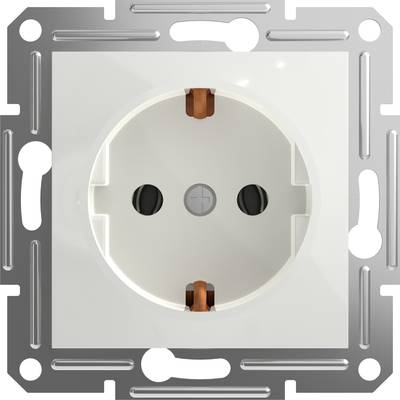

White socket in a metal mounting, pictured head-on. Suitable for wall installation.

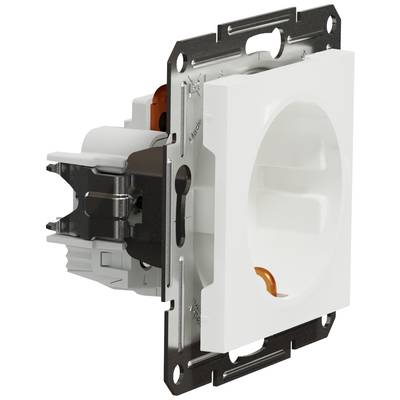

White socket with mounted metal bracket, viewed from the side, showing the plug contacts and mounting structure.

Side view of an electrical switch with a sophisticated mechanism, copper wire connections, and robust housing.

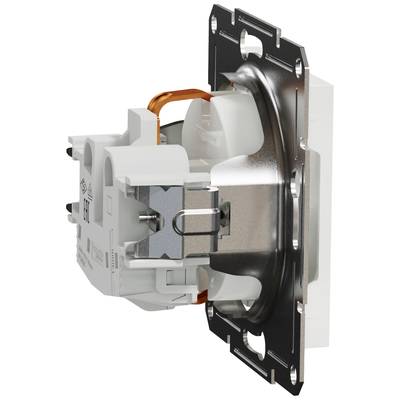

'Perspective of an electrical switch unit from a side view, featuring a metal plate frame and plastic components.'

Side view of an electrical switch mechanism with metal and plastic components, showing internal structure and contacts.

A white wall-mounted box with metal bracket, suitable for indoor electrical installations.

White electric wall socket insert, partially visible, with metal frame and plastic housing, in side perspective.

White wall socket with a metal mounting bracket, shown from the side. Suitable for mounting in a wall.

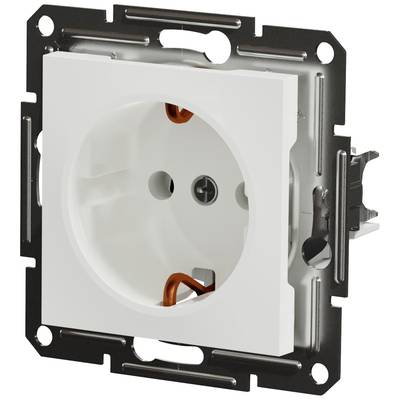

White socket with metal frame, partially recessed. Simple, square shape with two holes for plug pins.

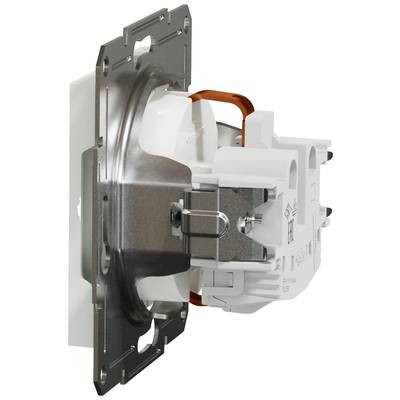

A poorly installed mechanical switch, not flush, with a white plastic component and metal plate fitted at an angle.

A white light switch with a metal frame and mounting bracket, viewed from the side, reveals the depth of the mechanism and the fastenings.

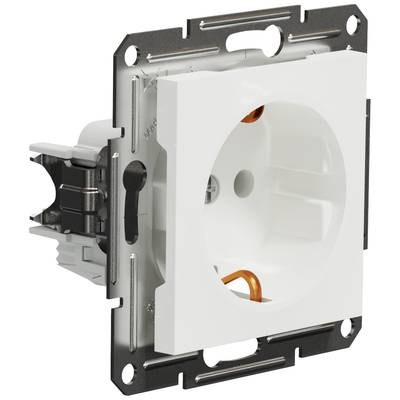

White socket with silver frame viewed from the side. Cable slots visible, suitable for flush-mounting installation.

White socket and switch on a wall above a wooden desk, with a black desk lamp beside it.

A smiling couple stands next to a selection of modern switches and sockets in front of a background with the inscription 'Asfora Switch Design: All the functions you need.'

'Simple selection process with two components: insert and frame, available from single to quadruple.'

1/15

Datasheet (PDF)

4151 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Number

Piece(s)

Total (€ 1.25 / piece)

€

Report legal concerns

Highlights & Details

Schneider Electric Socket Asfora White (RAL 9003) EPH2970121D 1 pc(s)

Busch & Jaeger Switch Product Range

Technical specifications

Type: Schneider Electric, socket 16A UP, white, AsFORA, EPH2970121D

Switch type function: Socket

Product type: Switch product range

Type series: Asfora

Factory colour: White (RAL 9003)

Nominal voltage: 250 V AC

Nominal current: 16 A

Switching capacity: 3680 W

: IP20

Dim

Content: 1 pc(s)

Material: ABS

VDE standard: 0620-1

Documents & Downloads

Datasheet

Datasheet 2997235 Schneider Electric Socket Asfora White (RAL 9003) EPH2970121D

User & Safety Instructions

User & Safety Instructions 2997235 Schneider Electric Socket Asfora White (RAL 9003) EPH2970121D

Information

Information 2997235 Schneider Electric Socket Asfora White (RAL 9003) EPH2970121D

Description

This Schneider Electric device is an outlet 16 A/230 VAC of the Asfora design line, without frame in white. The socket pole configuration of this socket is 2P + E with side ground. The device is fixed in place by screws or claws. Its operating voltage is 250 VAC and the nominal current is 16 A. The power range of this equipment is 3680 W. This equipment allows flush mounting. Dimensions are (W) 71 mm x (H) 71 mm x (D) 42 mm and the projection depth is 10 mm. It weighs 68 g. The color of this device is white (RAL 9003) with a glossy surface. It consists of ABS+PC material. It achieves protection class IP20. Asfora includes elegant controls for switches and sockets, dimmer for indoor and area lighting, shutters and sockets for TV/R/SAT, power, data as well as USB. All Asfora products comply with the latest standards and are made of robust materials that can withstand everyday use for years. The device also fulfills the standard IEC 60884-1. It also received TSE and VDE certificates.
Complete device consisting of flush-mounted insert with front-side cover (see product photo). Device is still to be supplemented with an Asfora frame (white).

This text is machine translated.

Scope of delivery

Complete device: Flush-mounting with front-side cover.

Hints

Safety relevant component - Only by skilled workers

System requirements

1-way frame, Asfora white: EPH5800121D
2-way frame, horizontal, Asfora white: EPH5800221D
3-way frame, horizontal, Asfora white: EPH5800321D
4-way frame, horizontal, Asfora white: EPH5800421D
2-way frame, vertical, Asfora white: EPH5810221D
3-way frame, vertical, Asfora white: EPH5810321D
Blind cover, Asfora white: EPH5670121D
