Buy Schneider Electric TM173OFM22S Expansion

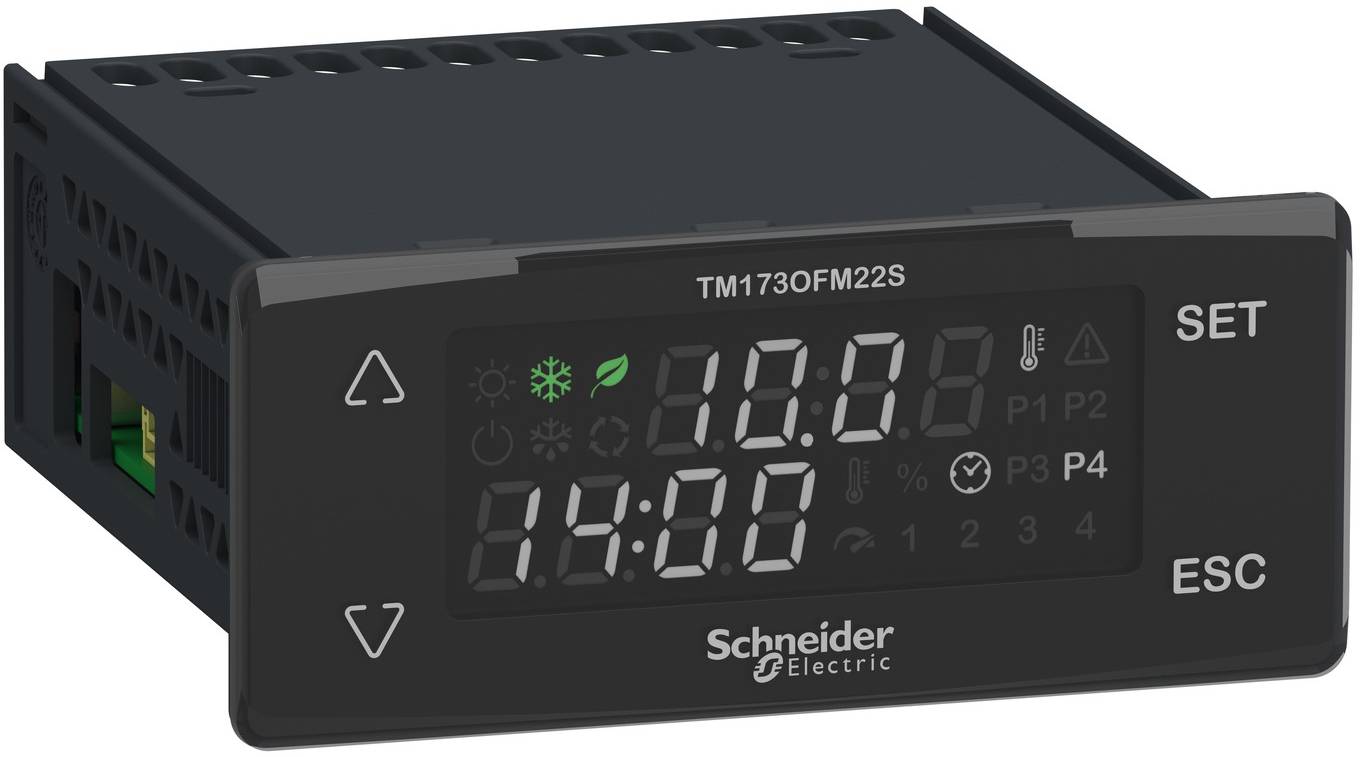

Schneider Electric digital temperature controller with dual LED displays showing 10.0 and 14:00, and SET and ESC buttons on the right.

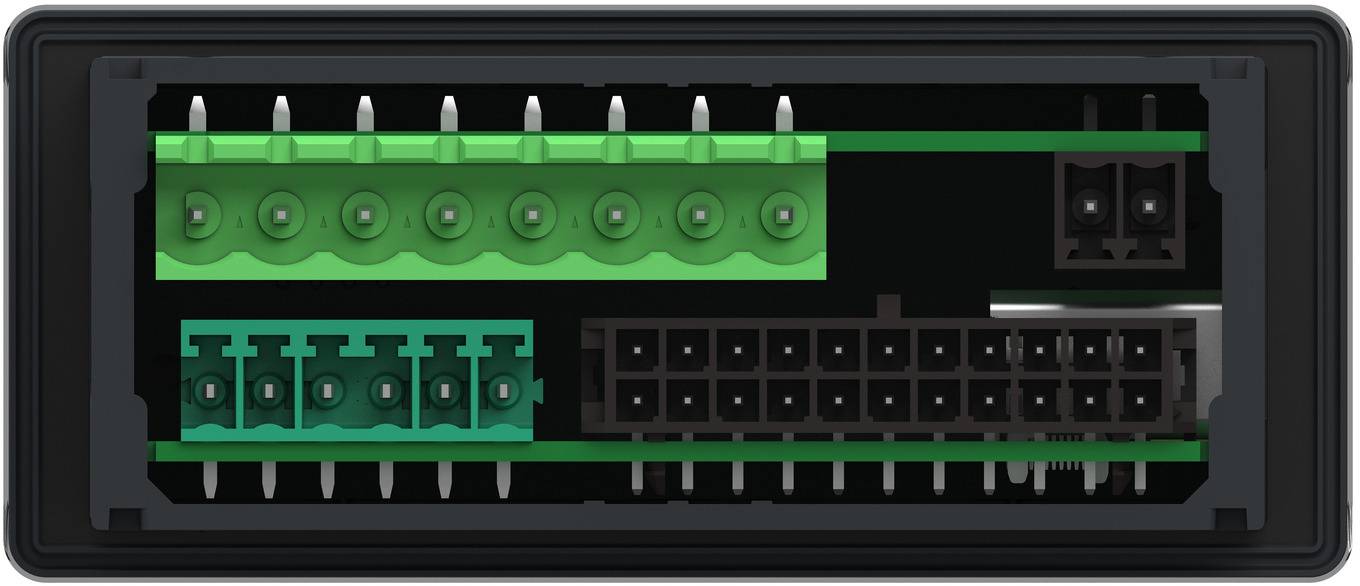

Close-up of a black computer power connector showing green and black pin sockets inside the plug.

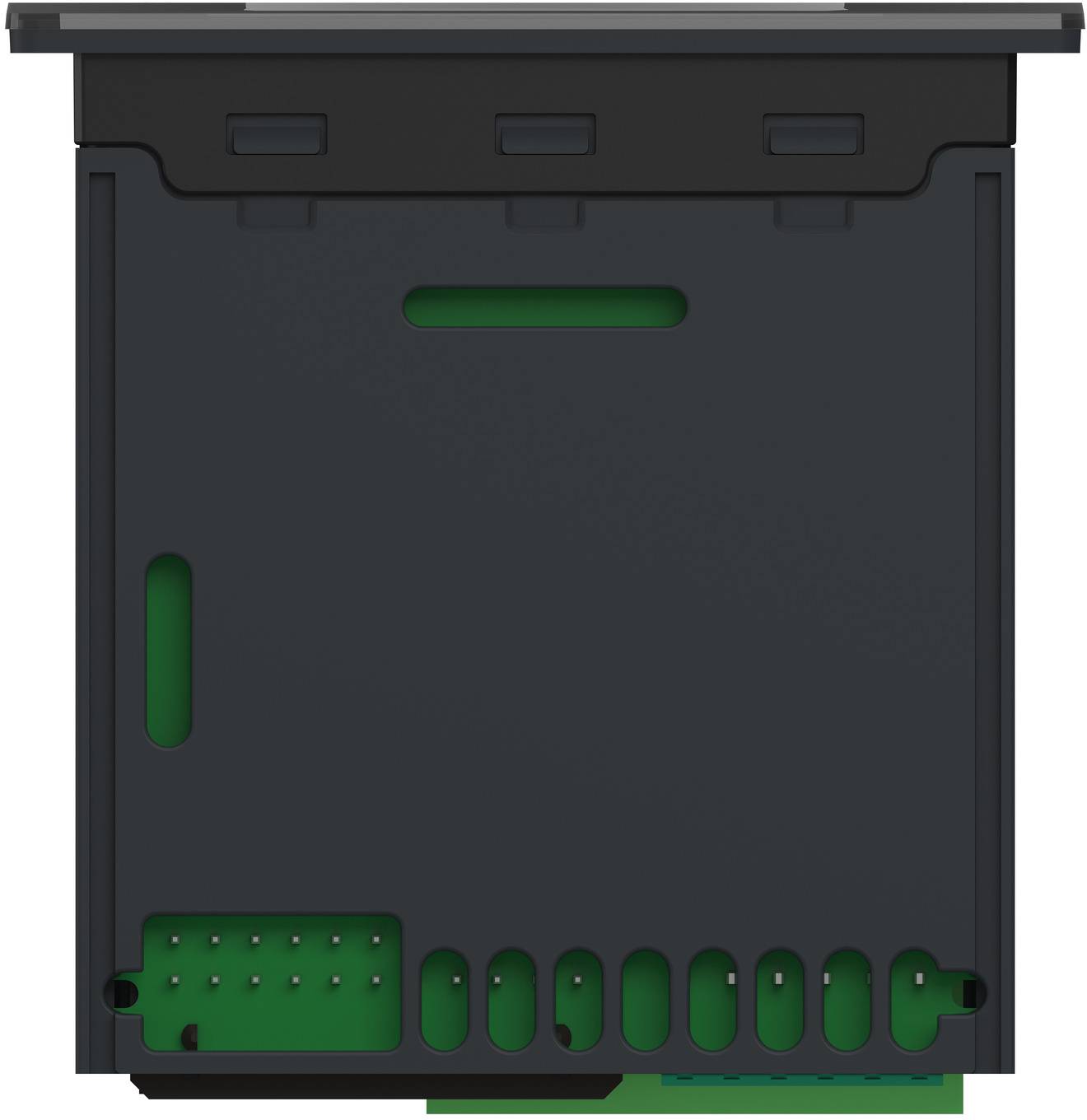

Black electronic enclosure with vent slots and green circuit board visible at the bottom<br>

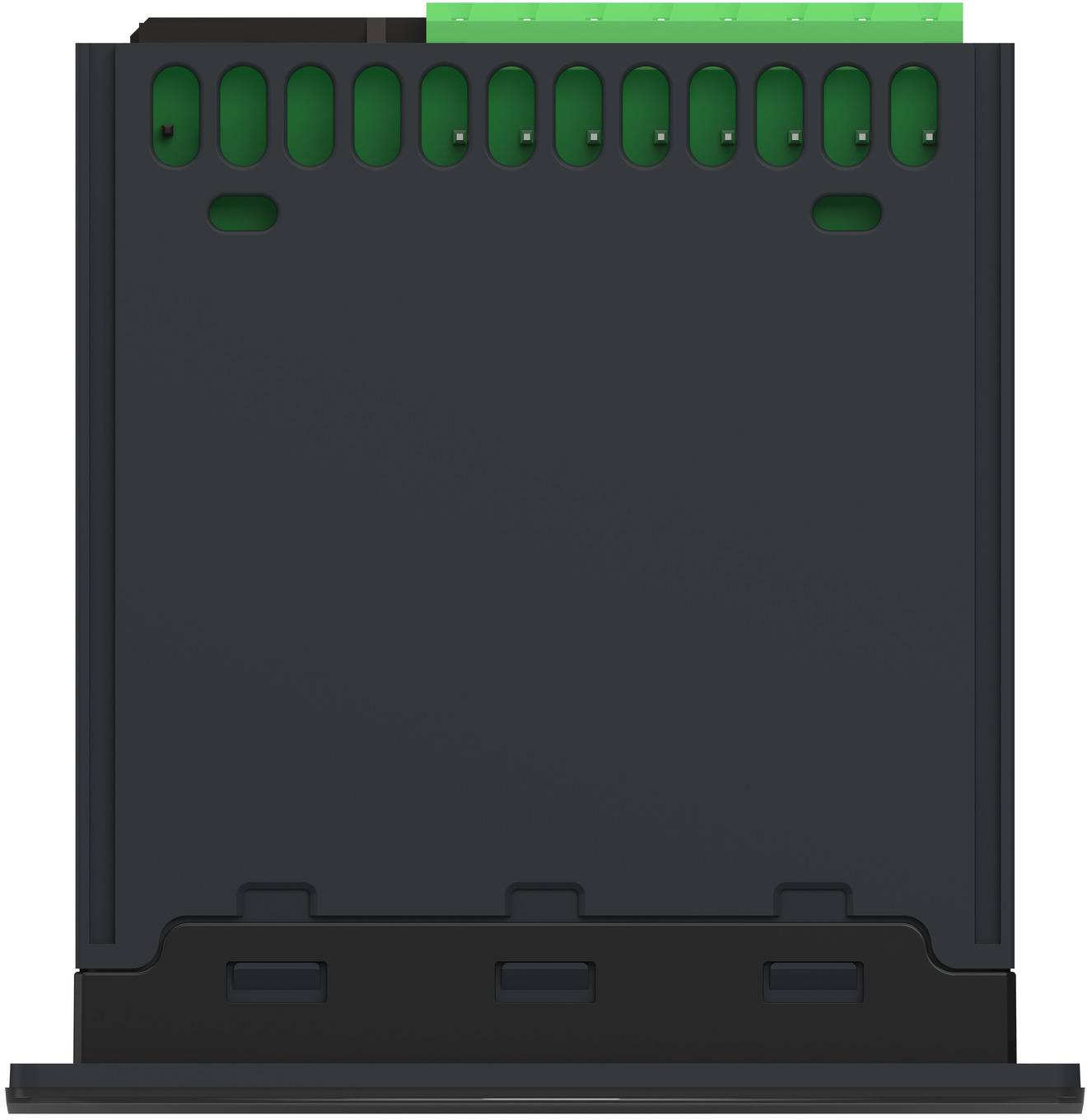

Rear view of a black electronic module or enclosure with ventilation slots along the top and a green circuit board peeking out.

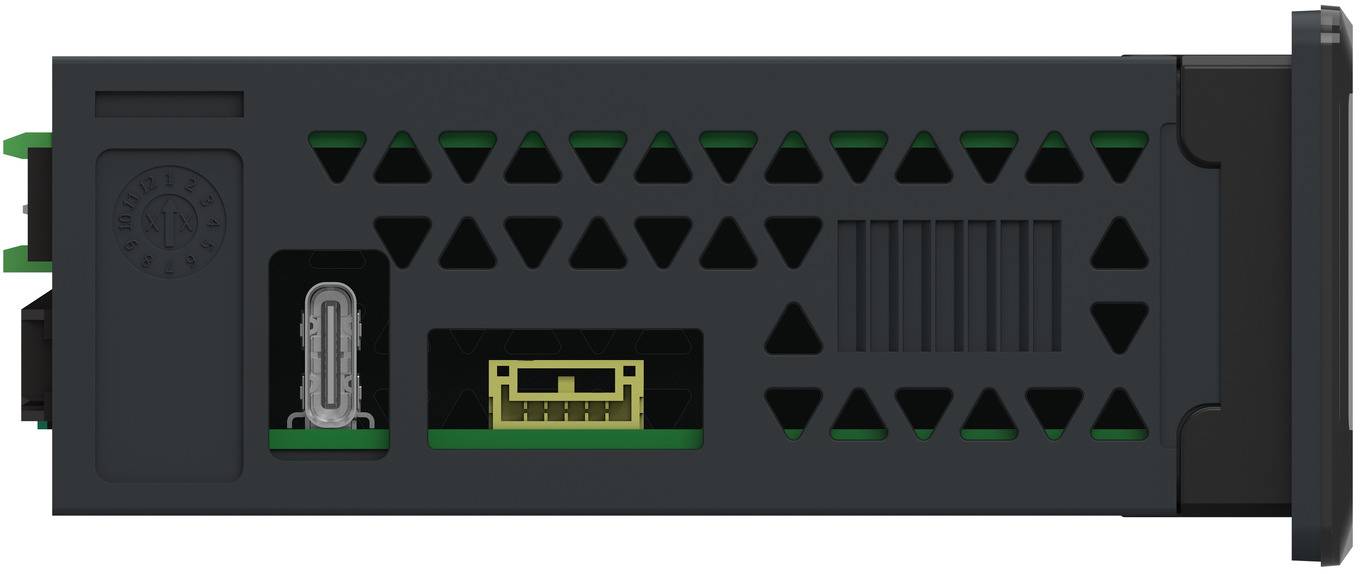

Rear panel of a black electronic device with a USB-C port, yellow Ethernet port, ventilation slots, and side cables connected.

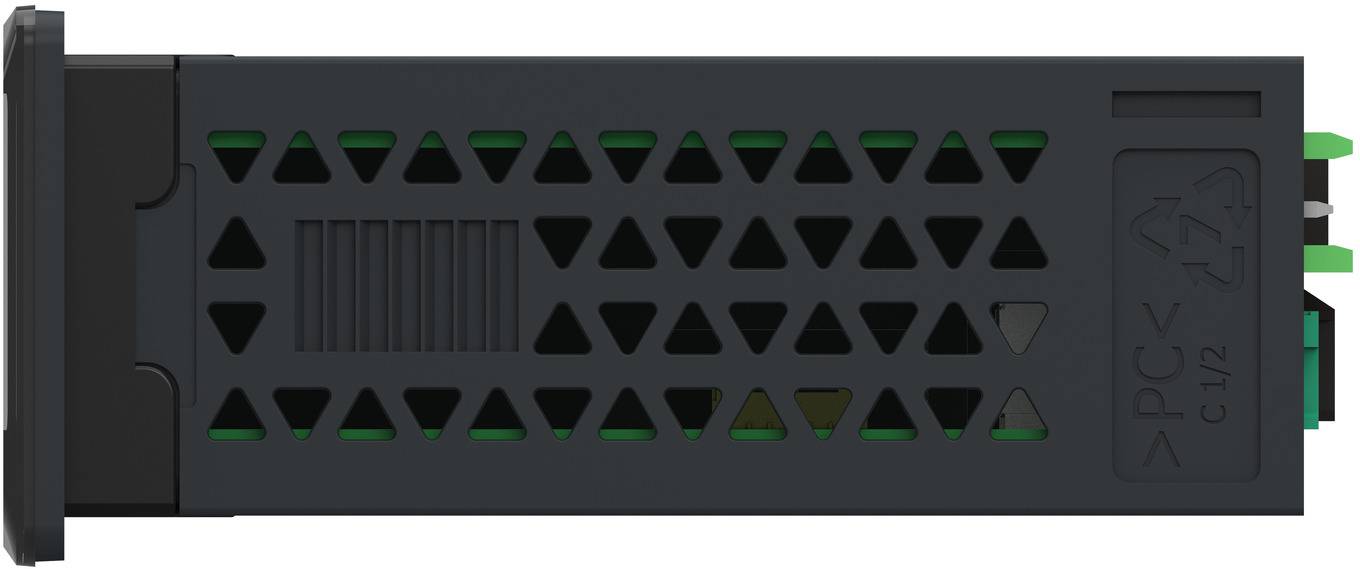

Black rectangular electronic module with vented triangular cutouts and green connector tabs on the right, labeled 'PCV 1/2'.

1/6

Datasheet (PDF)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 193.27 / piece)

€

Report legal concerns

Highlights & Details

SPS Control, Modicon M173, Optimized, Mount, 22 I/O, 2 solid state relays (SSR), 2 RS485, 24 VAC/DC

SIMATIC S7-200 is easy: programming software with Windows user interface
instructions for quick access to PLC technology
easy installation onto a top hat profile rail
SIMATIC S7-200 is compact: e.g. CPU 222: (W x H x D) 90 x 80 x 62 mm
own S7-200 net with PPI protocol
freely programmable interface.

Technical specifications

Number of analog outputs: 4
Number of analog inputs: 7
Number of digital outputs: 5
Number of digital inputs: 6
Number of HW interfaces Industrial Ethernet: 0
Number of HW interfaces in parallel: 0
Number of HW interfaces serial RS-232: 0
Number of HW interfaces serial RS-422: 0
Number of HW interfaces serial RS-485: 2
Number of HW interfaces Other: 0
Number of HW interfaces USB: 2
Number of HW interfaces Wireless: 0
Number of relay outputs: 5
Number of PROFINET interfaces: 0
Explosion protection category for gas: Without
Explosion protection category for dust: Without
Front mounting possible: No.
Wireless standard Bluetooth: No.
Wireless standard GPRS: No.
Radio standard GSM: No.
Wireless standard UMTS: No.
Wireless standard WLAN 802.11: No.
Suitable for security functions: No.
IO-Link Master: No.
With display: Yes
With optical interface: No.
Performance level according to EN ISO 13849-1: Without
Program memory expansion possible: No.
Rack mounting possible: No.
Redundancy capability: No.
SIL according to IEC 61508: Without
Voltage type of supply voltage: AC/DC
Memory type: Other
Memory 1024 kB
System component: No.
Rail mounting possible: Yes
Supports protocol for AS-Interface Safety at Work: No.
Supports protocol for ASI: No.
Supports protocol for CAN: No.
Supports protocol for data highway: No.
Supports protocol for DeviceNet: No.
Supports protocol for DeviceNet Safety: No.
Supports protocol for DNP3: No.
Supports protocol for EtherCAT: No.
Supports protocol for Ethernet/IP: No.
Supports protocol for FOUNDATION Fieldbus: No.
Supports protocol for IEC 60870: No.
Supports protocol for IEC 61850 Ethernet: No.
Supports protocol for INTERBUS: No.
Supports protocol for INTERBUS-Safety: No.
Supports protocol for KNX: No.
Supports protocol for LON: No.
Supports protocol for Modbus: Yes
Supports protocol for PROFIBUS: No.
Supports protocol for PROFINET CBA: No.
Supports protocol for PROFINET IO: No.
Supports protocol for PROFIsafe: No.
Supports protocol for SafetyBUS p: No.
Supports protocol for SERCOS: No.
Supports protocol for other bus systems: No.
Supports protocol for SUCONET: No.
Supports protocol for TCP/IP: No.
Supply voltage AC 50 Hz: 24-24 V
Supply voltage AC 60 Hz: 24-24 V
Supply voltage DC 24-24 V
Wall/direct mounting possible: No.
Certified for UL-danger range Division 1: No.
Certified for UL-danger range Division 2: No.
Certified for UL danger range Group A (acetylene): No.
Certified for UL danger area group B (hydrogen): No.
Certified for UL danger area Group C (ethylene): No.
Certified for UL danger range Group D (propane): No.
Certified for UL danger area Group E (metal dust): No.
Certified for UL danger range Group F (carbon-containing dusts): No.
Certified for UL danger area Group G (non-conductive dusts): No.
Certified for UL-danger range Class I: No.
Certified for UL-danger range Class II: No.
Certified for UL-danger range Class III: No.
Associated equipment (Ex ia): No.
Associated equipment (Ex ib): No.

Height: 34.5 mm

Width: 80.5 mm

Type: TM173OFM22S

Manufacturer part #: TM173OFM22S

Dim: (W x H x D) 80.5 x 34.5 x 82.7 mm

Type: compact

Depth: 82.7 mm

Product type: Expansion

Documents & Downloads

Datasheet

Datasheet 3755993 Schneider Electric TM173OFM22S Expansion

User & Safety Instructions

User & Safety Instructions 3755993 Schneider Electric TM173OFM22S Expansion

Description

The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Application areas such as:
small and special machine construction: packaging, strapping and coiling machines · food industry: kneading, cutting machines, mix granulating machines · laboratories: laboratory mixers, heating cabinets, vacuum pumps, suction equipment.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU by a connector.
