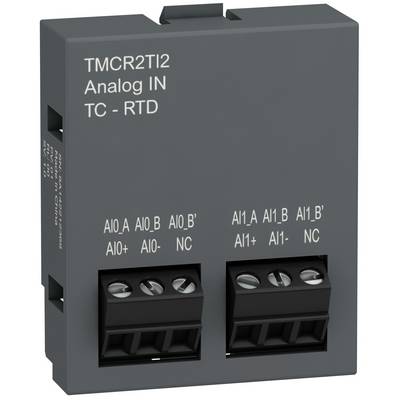

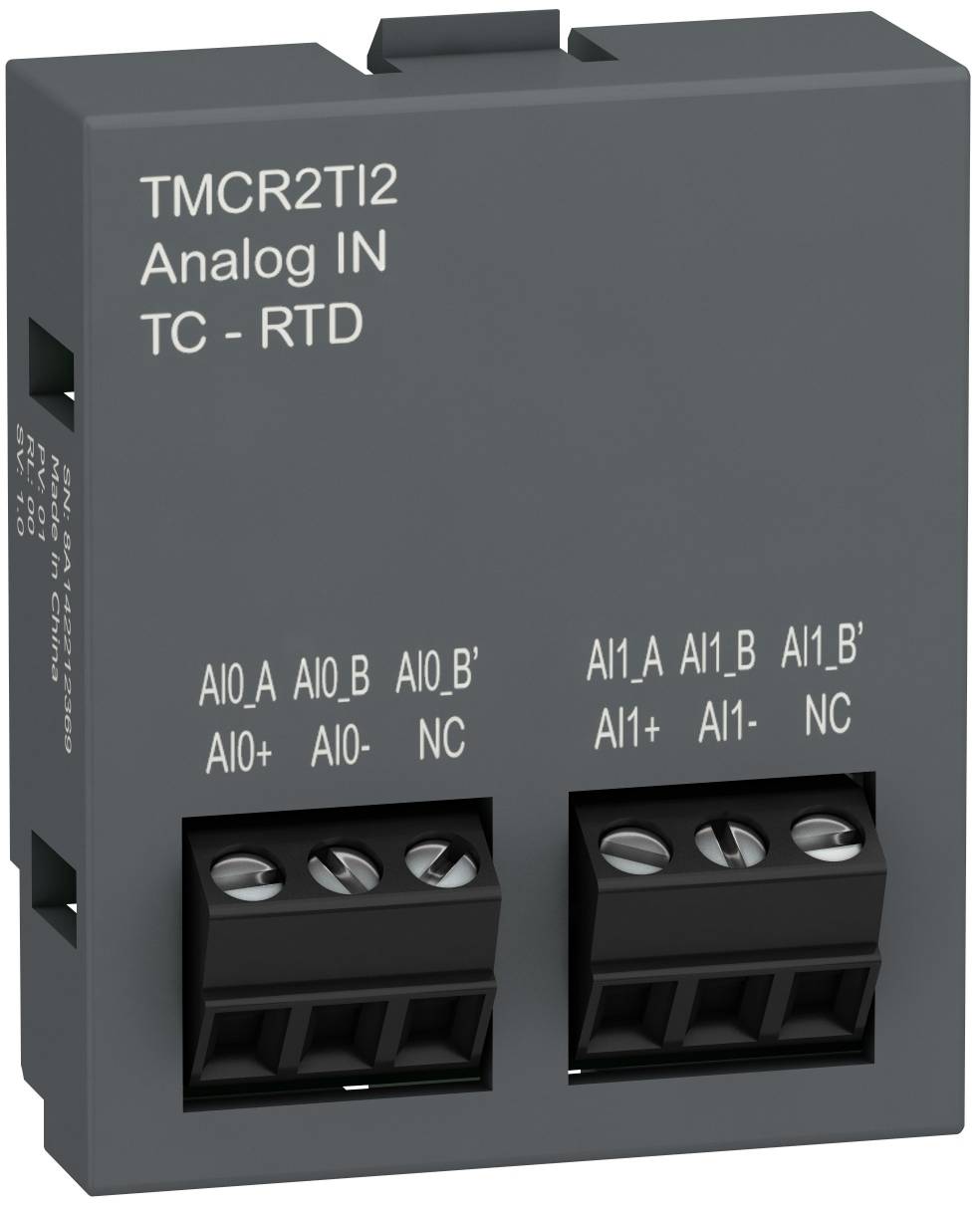

Schneider Electric TMCR2TI2 Expansion
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 415.97 / piece)
€
Highlights & Details
Easy Modicon M200, optional plug-in module, 2 temperature inputs
- SIMATIC S7-200 is easy: programming software with Windows user interface
- instructions for quick access to PLC technology
- easy installation onto a top hat profile rail
- SIMATIC S7-200 is compact: e.g. CPU 222: (W x H x D) 90 x 80 x 62 mm
- own S7-200 net with PPI protocol
- freely programmable interface.
Technical specifications
- Analogue outputs can be configured: No.
- Analogue inputs can be configured: No.
- Number of analog outputs: 0
- Number of analog inputs: 2
- Resolution of the analogue inputs 14 bits
- Design of electrical connection: Screw connection
- Output, voltage: No.
- Output, current: No.
- Output signal can be configured: No.
- Input, voltage: No.
- Input, current: No.
- Input, thermocouple: No.
- Input, resistance: No.
- Input, resistance thermometer: Yes
- Input signal can be configured: No.
- Explosion protection category for gas: Other
- Explosion protection category for dust: Other
- Suitable for security functions: No.
- Performance level according to EN ISO 13849-1: Without
- SIL according to IEC 61508: Without
- Associated equipment (Ex ia): No.
- Associated equipment (Ex ib): No.
- Product type
Expansion
- Height
41 mm
- Width
35 mm
- Type
TMCR2TI2
- Manufacturer part #
TMCR2TI2
- Dim
(W x H x D) 35 x 41 x 15 mm
- Depth
15 mm
Documents & Downloads
Datasheet
Datasheet 3756200 Schneider Electric TMCR2TI2 Expansion
User & Safety Instructions
User & Safety Instructions 3756200 Schneider Electric TMCR2TI2 Expansion
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Application areas such as:
small and special machine construction: packaging, strapping and coiling machines · food industry: kneading, cutting machines, mix granulating machines · laboratories: laboratory mixers, heating cabinets, vacuum pumps, suction equipment.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU by a connector.
Application areas such as:
small and special machine construction: packaging, strapping and coiling machines · food industry: kneading, cutting machines, mix granulating machines · laboratories: laboratory mixers, heating cabinets, vacuum pumps, suction equipment.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU by a connector.
