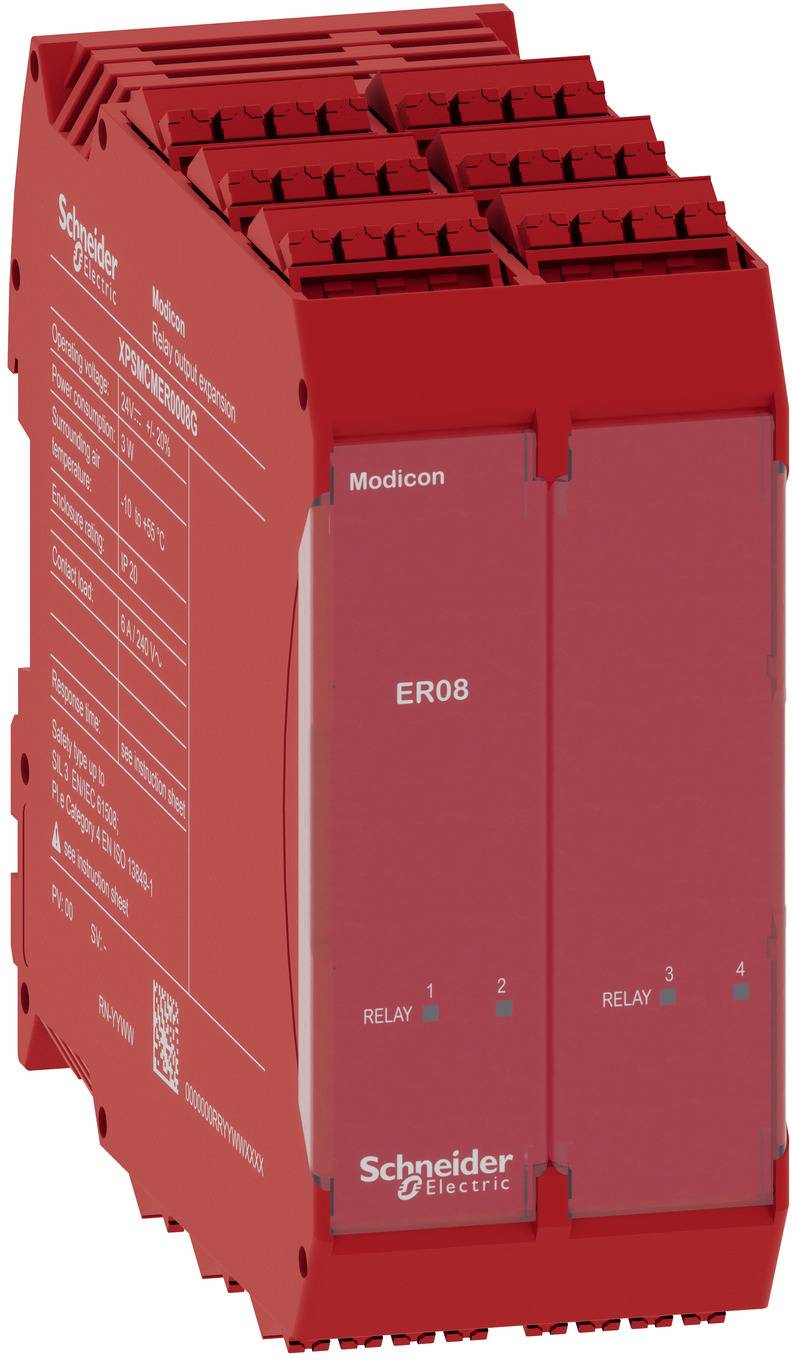

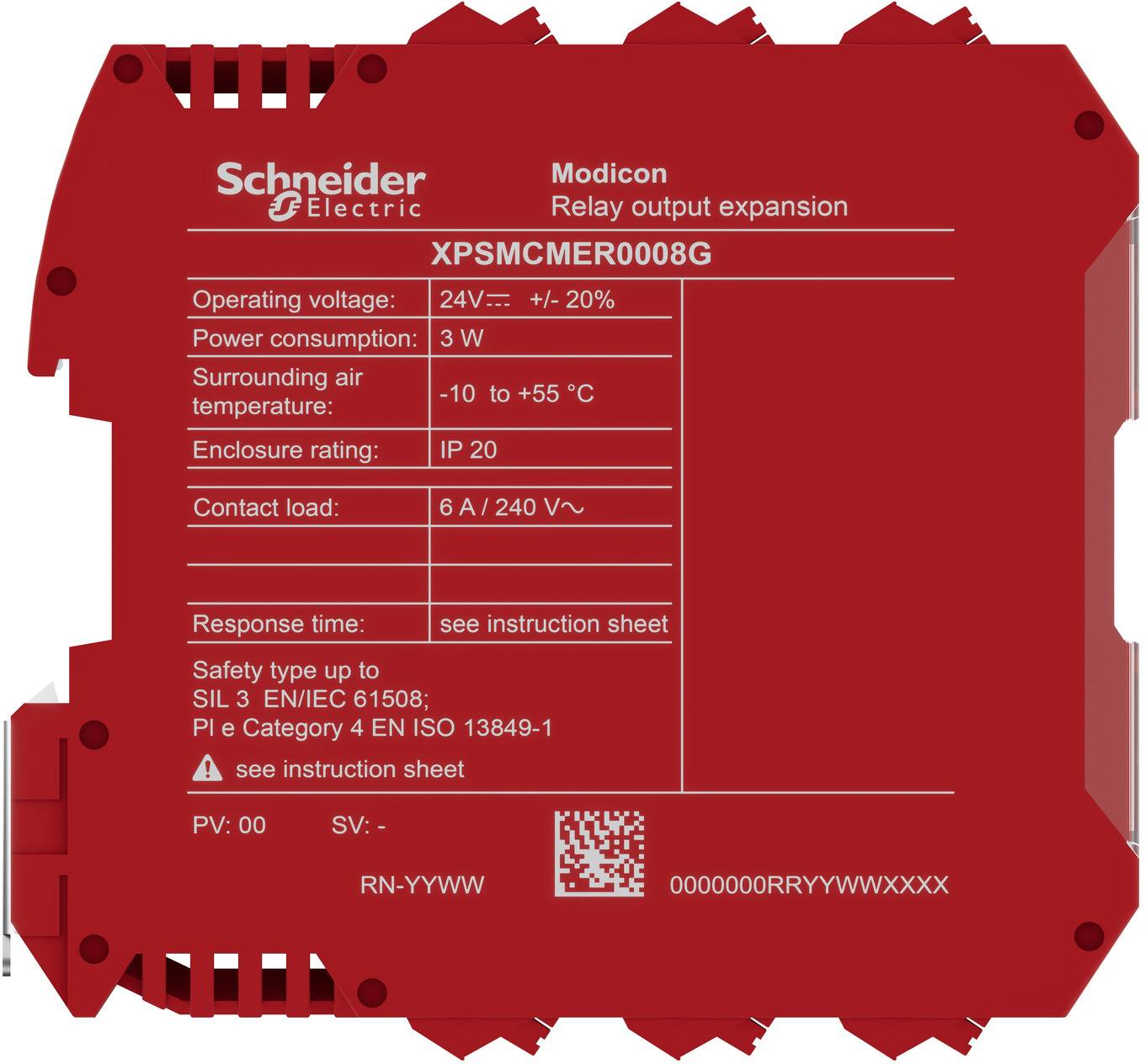

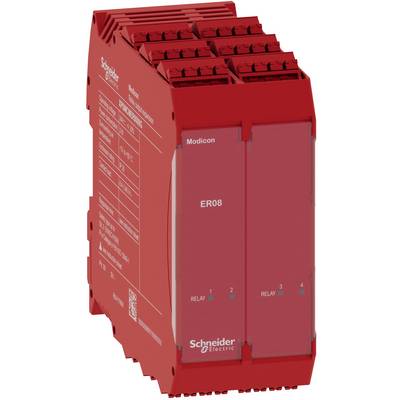

Schneider Electric XPSMCMER0008G Monitoring relay
EAN:
Part number:
Item no:
Product type
Monitoring relay
Type
XPSMCMER0008G
Dim
(W x H x D) 45 x 118 x 114.5 mm
Width
45 mm
Height
118 mm
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 449.58 / piece)
€
Technical specifications
- Number of outputs, alarm function, undelayed, semiconductor: 0
- Number of outputs, signaling function, instantaneous, contact afflicted: 8
- Number of outputs, signaling function, delayed, semiconductor: 0
- Number of outputs, signaling function, delayed, contact afflicted: 0
- Number of outputs, safety-related, instantaneous, semiconductor: 0
- Number of outputs, safety-related, instantaneous, contact-afflicted: 8
- Number of outputs, safety-related, delayed, semiconductor: 0
- Design of electrical connection: Spring-loaded connection
- Evaluation of the inputs: Other
- Rated switching current 6 A
- Operating voltage DC 24-24 V
- Suitable for monitoring magnetic switches: No.
- Suitable for monitoring emergency-OFF circuits: No.
- Suitable for monitoring proximity switches: No.
- Suitable for monitoring opto-electronic protection devices: No.
- Suitable for monitoring position switches: No.
- Suitable for monitoring tactile sensors: No.
- Suitable for monitoring valves: No.
- Power consumption: 3 W
- With removable terminals: Yes
- With muting function: No.
- With feedback circuit: No.
- With start input: No.
- With TÜV approval: Yes
- With approval for BG BIA: No.
- With UL approval: Yes
- Performance level according to EN ISO 13849-1: Level e.
- Off-delay 0,012-0,012 s
- Security type according to IEC 61496-1: 4
- SIL according to IEC 61508:3
- Voltage type of the operating voltage: DC
- Voltage type of supply voltage: DC
- Control voltage 1 24-24 V
- Control voltage type 1: AC/DC
- Stop category according to IEC 60204: 0 + 1

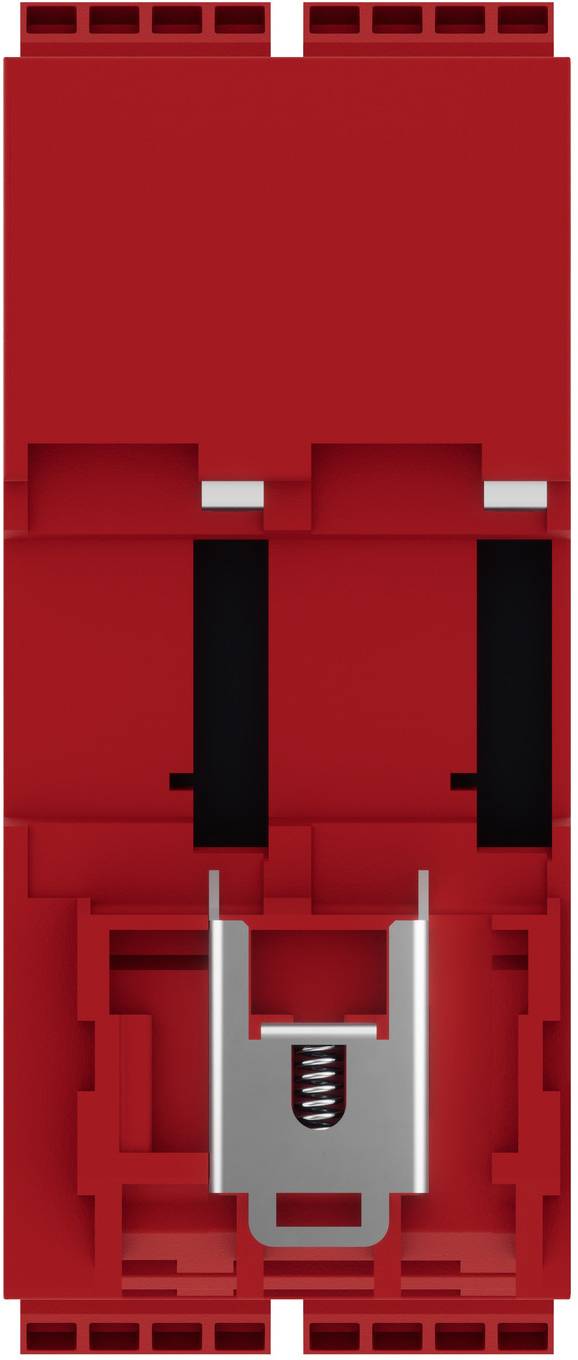

- Rail mounting possible: Yes
- Supply voltage DC 24-24 V
- Type
XPSMCMER0008G
- Product type
Monitoring relay
- Dim
(W x H x D) 45 x 118 x 114.5 mm
- Width
45 mm
- Height
118 mm
- Depth
114.5 mm
- Type
Extension device
Documents & Downloads
Datasheet
Datasheet 3756141 Schneider Electric XPSMCMER0008G Monitoring relay
User & Safety Instructions
User & Safety Instructions 3756141 Schneider Electric XPSMCMER0008G Monitoring relay
Description

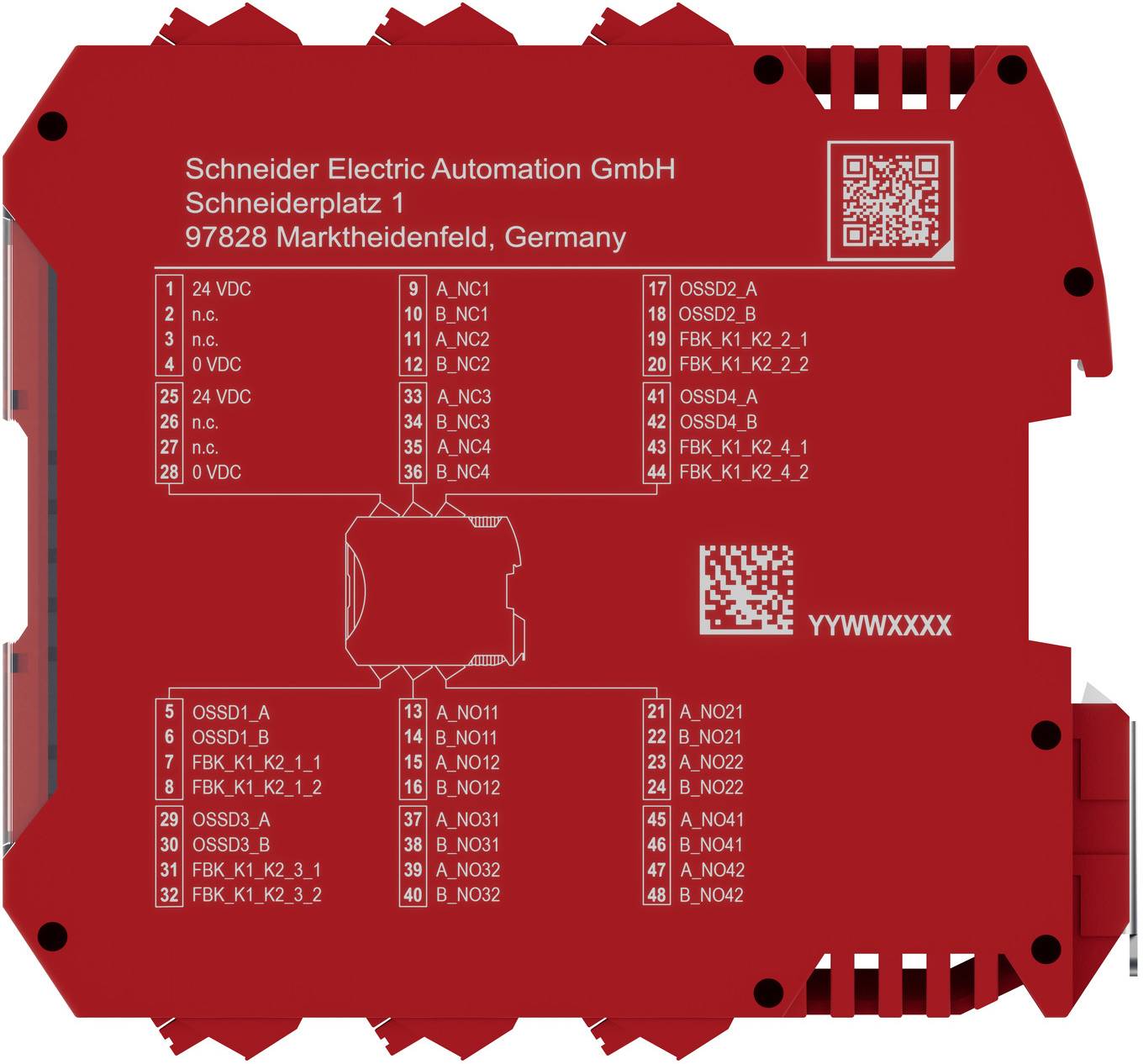

With the Modicon modular safety controller XPSMCM, security applications can be easily configured and the system can be flexibly expanded with modules according to the application. This expansion module provides 4 safe relay group outputs. One relay group consists of 2 relay closers and 1 relay openers which are reliably controlled by 2 OSSD outputs. Four return circuits (EDM) are available. This module is not included with a rear-bus connector since it is not needed. This module has removable spring terminals and has a width of 45 mm. This expansion module can be used with all CPU-versions. To support your sustainability goals, detailed information on material content, environmental impact and recycling management is provided.
