Schneider Electric ZB4BG3K4241A Front piece 100 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number (Package size 100 pc(s))
Total (€ 54.83 / piece)
€
Technical specifications
- Number of switch positions: 3
- Actuator type: Key
- Design of the lens: Round
- Colour of actuator: Black
- Colour of front ring: Chrome
- Suitable for lighting: No.
- Hole diameter 22.5 mm
- With front ring: Yes
- Switching function latching: No
- Protection class (NEMA): Other
- Button: No.
- Front ring material: Metal
IP66 (front)
- Content
100 pc(s)
- Type
ZB4BG3K4241A
22.5 mm
3
FALSE
FALSE
Chrome
IP66
Metal
TRUE
Round
Key
Black
FALSE
Other
- Product type
Front piece
Documents & Downloads
Datasheet
Datasheet 3756187 Schneider Electric ZB4BG3K4241A Front piece 100 pc(s)
User & Safety Instructions
User & Safety Instructions 3756187 Schneider Electric ZB4BG3K4241A Front piece 100 pc(s)
Description

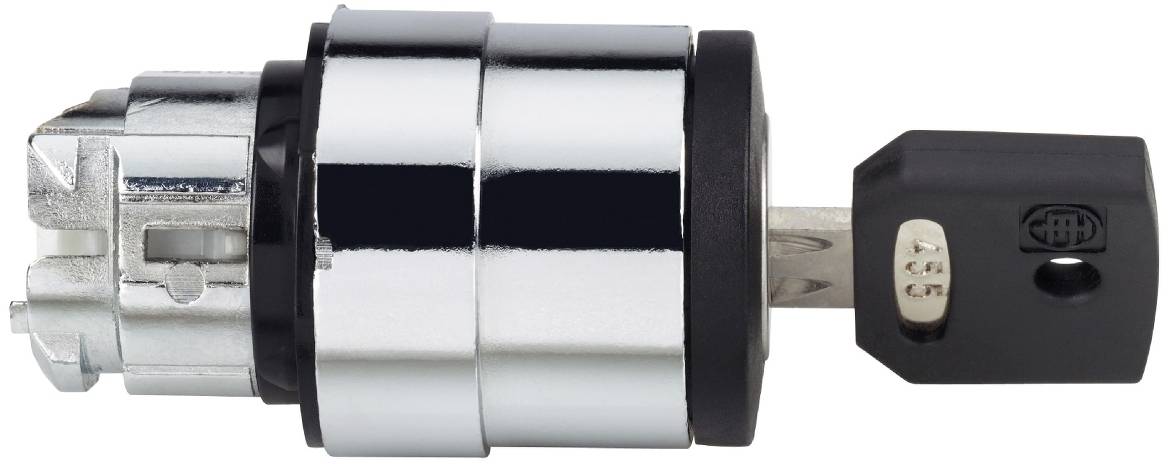

Front element for key switch Harmony ZB4. 3 positions +/- 45°. Dimensions (WxHxD) 29x29x72 mm, mounting diameter 22 mm. Mechanical lifespan 1000000 cycles. Type of lock special key, round head. With high vibration resistance and chemical resistance, ambient temperature -40 to +70 degree C. The modular metal program with 22mm mounting dimensions combines easy installation, efficiency and modern design.
