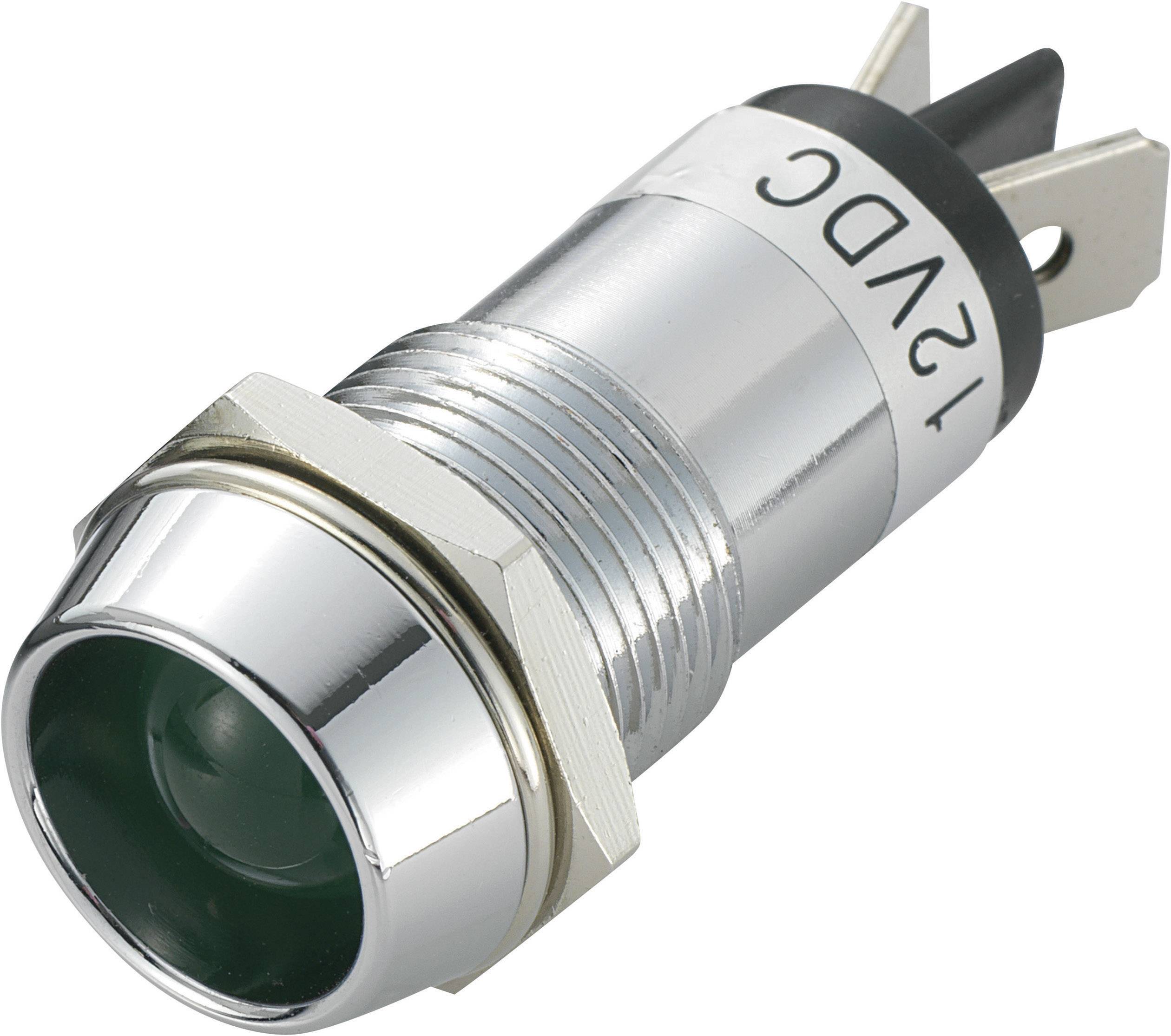

SCI 140338 LED indicator light Green 12 V DC 20 mcd
EAN:
Part number:
Item no:
Product type
LED indicator light
Operating voltage
12 V DC
Operating current
20 mA
Recess diameter
14 mm
Light intensity I(V)
20 mcd
Datasheet (PDF)
Show alternatives
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
5
7% = € 0.30
€ 4.31
10
9% = € 0.42
€ 4.19
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 4.61 / piece)
€
Technical specifications
- Lens: diffuse
- Product type
LED indicator light
- Type
R 9-86 L-01-WG
- Factory colour
Green
- Operating voltage
12 V DC
- Operating current
20 mA
- Recess diameter
14 mm
- Case colour
Chrome
- Material
Brass
- Material properties
shiny
- Mounting type
Screw
- Light intensity I(V)
20 mcd
- Radiation angle
40°
- LED features
Built-in reflector
- Connection
Type C CEE 7/16 plug 6.3 mm
- Dim
(Ø x L) 16 mm x 39.7 mm
- Length
39.7 mm
- (Ø)
16 mm
- Min. temperature
-20 °C
- Max. temperature
85 °C
- RoHS-compliant
Yes
n.rel.
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 140338 SCI 140338 LED indicator light Green 12 V DC 20 mcd
