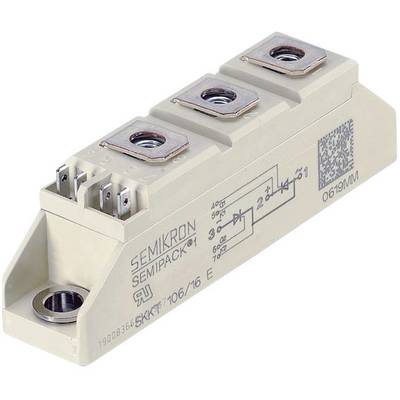

Image similar
Image similar
Semikron SKKT27/12E Thyristor (SCR) - Module SEMIPACK® 1 1200 V 25 A
EAN:
Part number:
Item no:
Enclosure
SEMIPACK® 1
U(DRM)
1200 V
I(T)(RMS)
50 A
Forward voltage U(F)
1.8 V
I(H)
100 mA
Datasheet (PDF)
Technical specifications
- Type
SKKT27/12E
- Enclosure
SEMIPACK® 1
- Manufacturer
Semikron
- Manuf. code
SKR
- U(DRM)
1200 V
- Gate trigger voltage U(GT)
3 V
- Gate trigger current I(GT)
150 mA
- Average forward current I(T)(AV)
25 A
- I(T)(RMS)
50 A
- Forward voltage U(F)
1.8 V
- I(H)
100 mA
- I(TSM 50 Hz)
550 A
- Mounting type
Enclosure
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+125 °C
- RoHS-compliant
- I(d)
10 mA
- Type
SKKT 27/12E
- Casing
SEMIPACK® 1
- Product type
Thyristor (SCR) - Module
Documents & Downloads
Datasheet
Datasheet 160062 Semikron SKKT27/12E Thyristor (SCR) - Module SEMIPACK® 1 1200 V 25 A
User & Safety Instructions
User & Safety Instructions 160062 Semikron SKKT27/12E Thyristor (SCR) - Module SEMIPACK® 1 1200 V 25 A
