Buy Shelly Shelly Qubino Wave PM Mini Actuator Z-Wave

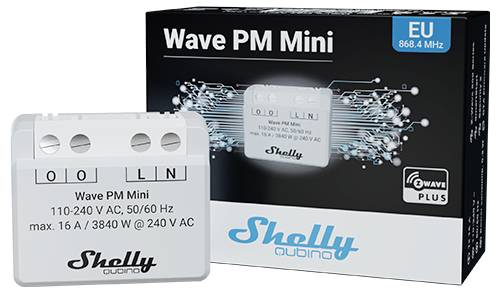

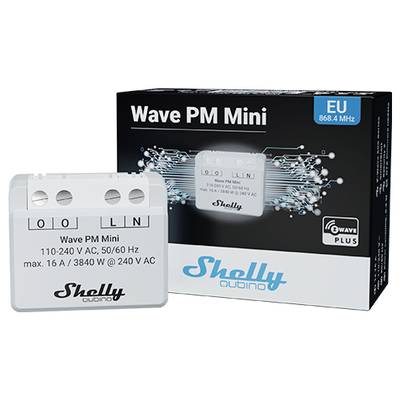

'Wave PM Mini' by Shelly, an electronic device for the EU market. Supports 110-240 V AC, max. 16 A/3840 W. Frequency: 868.4 MHz.

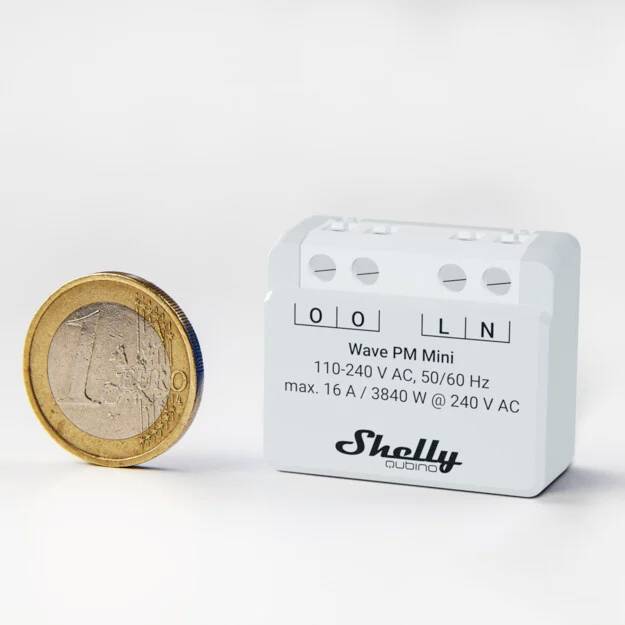

A one-euro coin next to a white Shelly 1PM Mini device displaying electrical specifications: 16 A, 3840 W, 240 V AC.

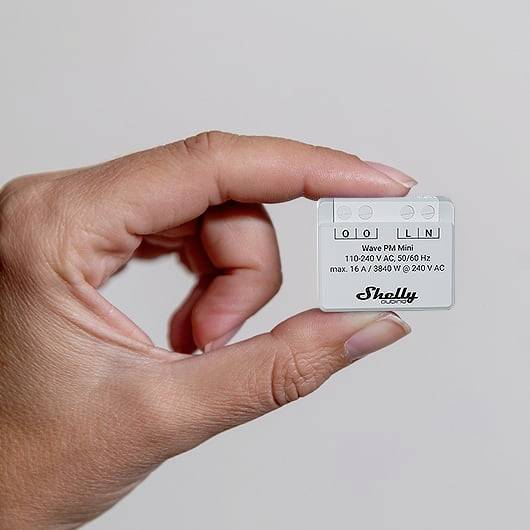

A hand is holding a small, white device with the label 'Shelly'. It displays symbols for electrical connections and voltage specifications.

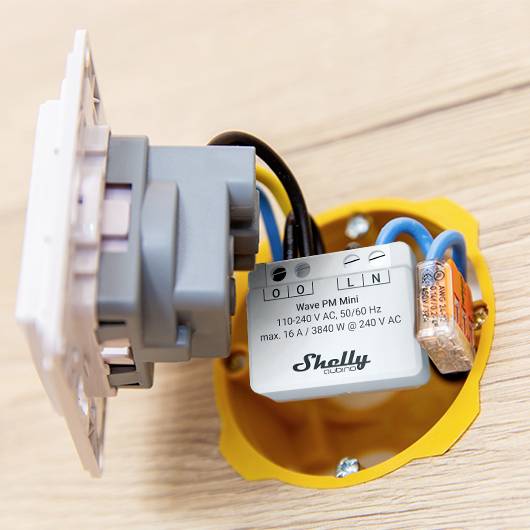

An intelligent light switch is shown from behind, with visible cables and components. It is in the installation process.

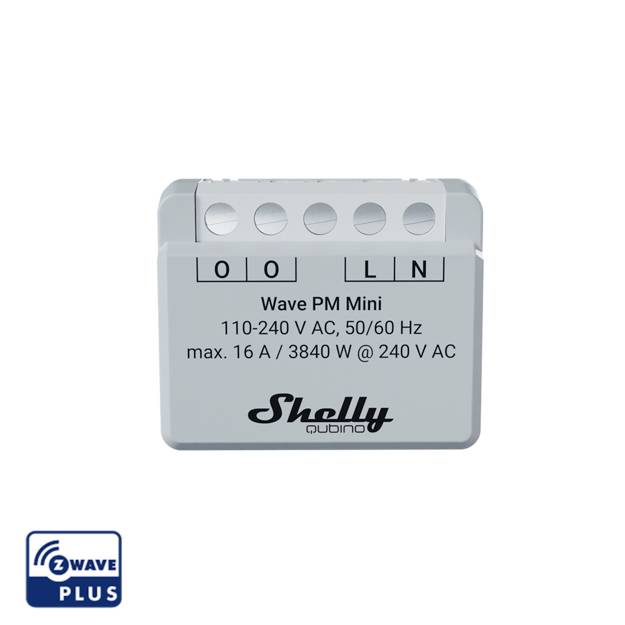

A Shelly PM Mini with connection diagram. Suitable for 110-240 V AC, 50/60 Hz, max. 16 A/3840 W at 240 V. Supports Z-Wave Plus.

1/5

Datasheet (PDF)

3 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 23.52 / piece)

€

Only 3 Piece(s) available

Report legal concerns

Highlights & Details

Shelly flush-mounted Wave PM mini relay max. 16 A, 1 channel, Z-Wave

Supports up to 16 A at 240 V AC
Performance measurement
Extremely low power consumption < 0.3 W

Technical specifications

: Alexa
Google Home

Transfer Standard (Smart Home): Z-Wave

Max. switching capacity: 3840 W

Power supply (LOV): mains-powered

Operating voltage: 230 V

Data transfer (Smart Home): Wireless

Channels: 1

Frequency: 868.4 MHz

Mounting type: Flush mount

Factory colour: Light grey

Width: 35 mm

Height: 29 mm

Depth: 16 mm

Weight: 13 g

: n.rel.

Dim: (W x H x D) 35 x 29 x 16 mm

Features: Test function

Hub: Required

Product type: Actuator

Documents & Downloads

Datasheet

Datasheet 3308348 Shelly Shelly Qubino Wave PM Mini Actuator Z-Wave

User & Safety Instructions

User & Safety Instructions 3308348 Shelly Shelly Qubino Wave PM Mini Actuator Z-Wave

Description

The world's smallest Z-Wave power meter for precise current monitoring. Monitor the power consumption of electrical devices from anywhere and optimize your energy consumption. Thanks to its compact retrofit design, it is so small that it can fit even in the narrowest rooms and electrical outlets.

This text is machine translated.

Features

868.4 MHz Z wave frequency band (CEPT countries)
Latest technology: Z-Wave 800 series
Automatic setup with SmartStart
Security 2 Authenticated for the highest security level
Supports over-the-air firmware updates
Quick and easy installation in most of the standard electrical boxes and switches
Works with Z-Wave certified gateways and over 4,000 Z-Wave devices
*A gateway (Smart hub) is not included. A gateway (Smart hub) is required to configure the device.
*This is only a power meter and not a relay.

System requirements

Z-wave, iOS, Android, HUAWEI, MQTT
