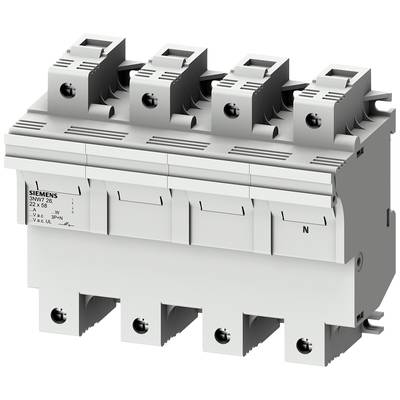

Siemens 3NW7262 3NW7262 Torpedo fuse holder 100 A 690 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Torpedo fuse holder
Nominal voltage
690 V AC
Nominal current - rounded value
100 A
Mounting type
DIN rail
Nominal current
100 A
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 159.66 / piece)
€
Technical specifications
- Number of pins: 4
- Size of the fuse link: 22 x 58 mm
- Cutout depth: 70 mm
- Number of broad division units: 8
- Product type
Torpedo fuse holder
- Nominal voltage
690 V AC
- Nominal current
100 A
- Nominal current - rounded value
100 A
- Mounting type
DIN rail
IP20
- Type
LED indicator
- Weight
686 g
- Length
70 mm
- Width
144 mm
- Height
117 mm
- Content
1 pc(s)
- Dim

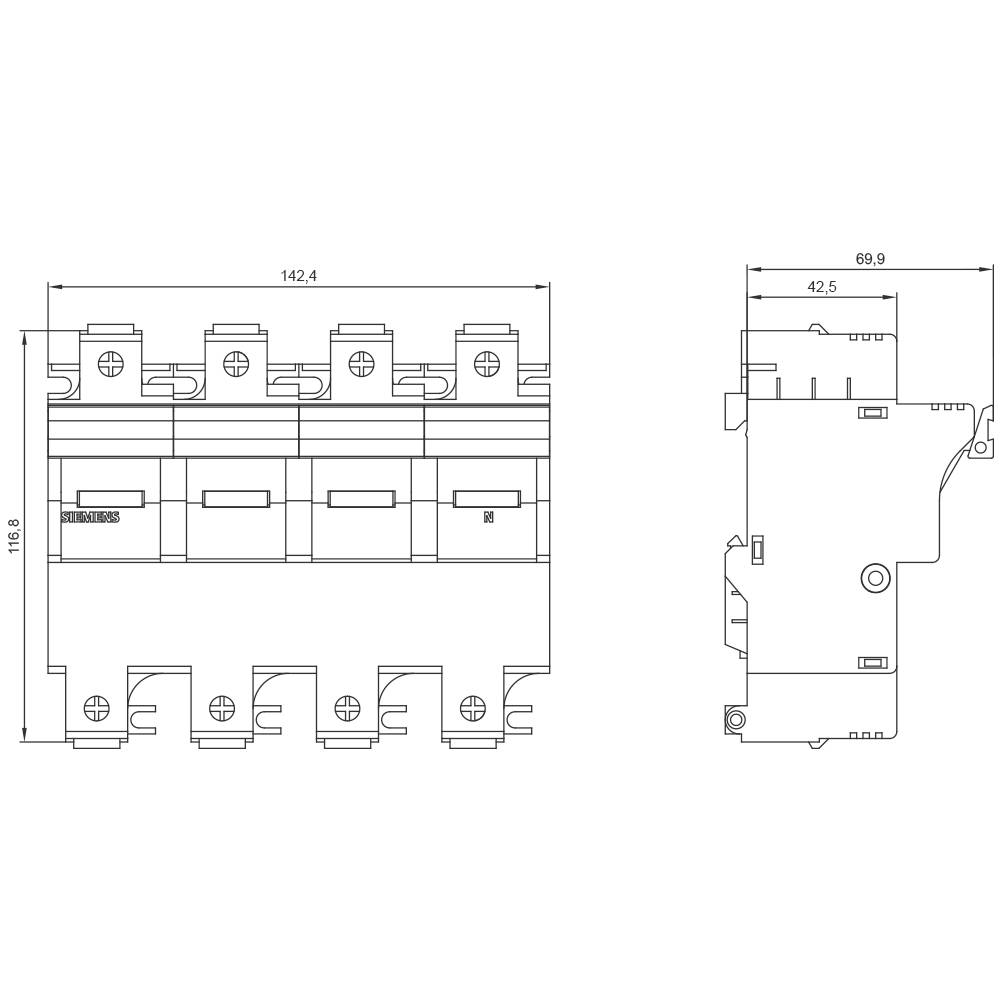

(L x W x H) 70 x 144 x 117 mm
- RoHS-compliant
Yes
- Type
3NW7262
690 V
DIN rail
FALSE
70 mm
4
8
IP20
FALSE
TRUE
22x58 mm
Documents & Downloads
Datasheet
Datasheet 1736278 Siemens 3NW7262 3NW7262 Torpedo fuse holder 100 A 690 V AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1736278 Siemens 3NW7262 3NW7262 Torpedo fuse holder 100 A 690 V AC 1 pc(s)
Description
AS-i Extension Plug Phased-out product !!! For further information, please contact our sales department Doubling of the cable length to 200 m per AS-Interface segment Degree of protection IP67 Connection via AS-Interface M12 branch 3RX9801-0AA00 must be ordered separately
