Buy Siemens 3RA2210-1DD15-2BB4 3RA22101DD152BB4 Feeder terminal Motor power at 400 V 1.1 kW 690 V Nominal current 2.7 A

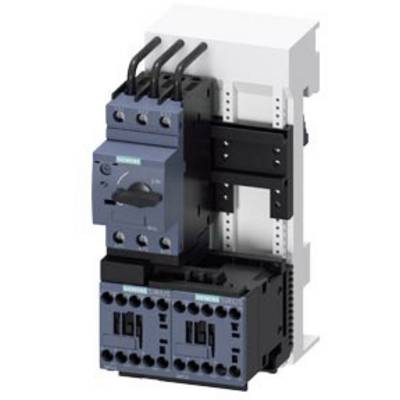

An electrical switchboard with multiple black cables, grey switches, and blue details.

Image similar

A modern car wash is controlled by a control panel with electrical components. Rain drips onto the glass of the cabin.

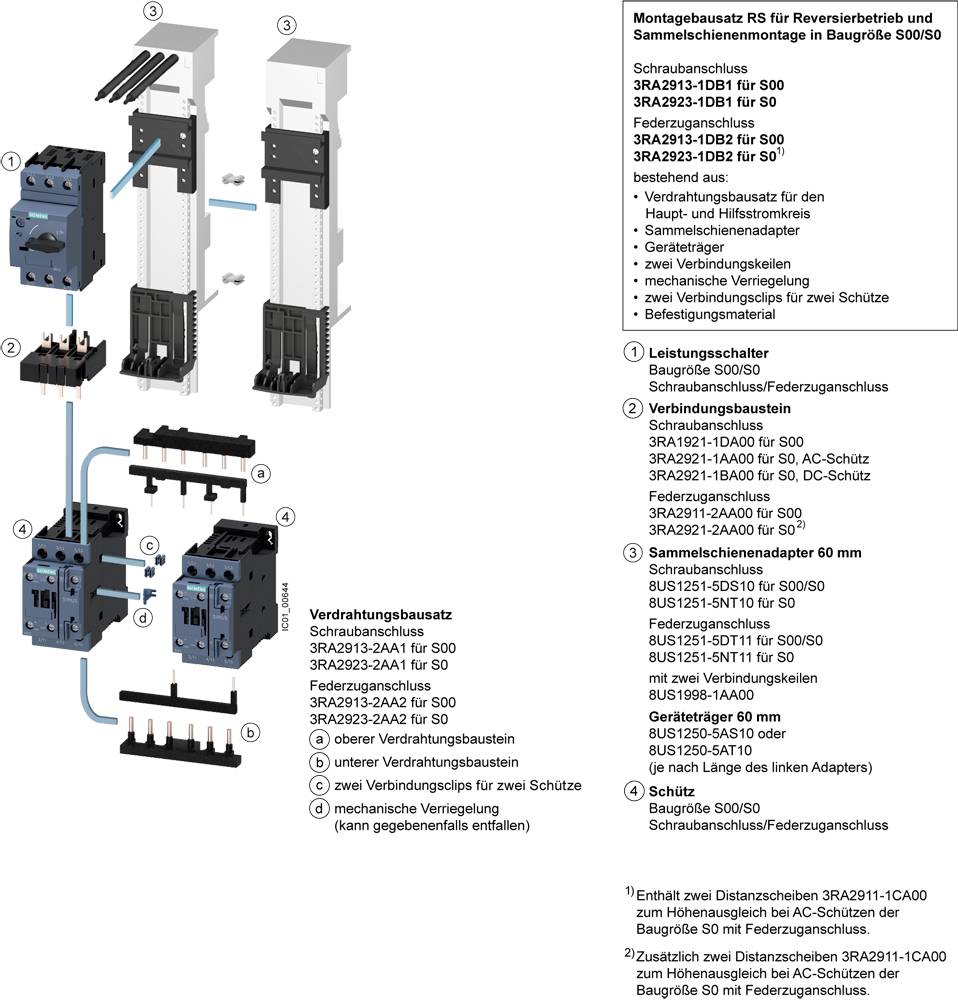

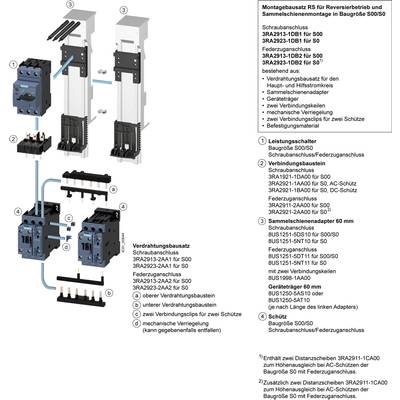

'Diagram of mounting components for RS busbar assembly, size S00/S0 with screw connection and spring-loaded terminals.'

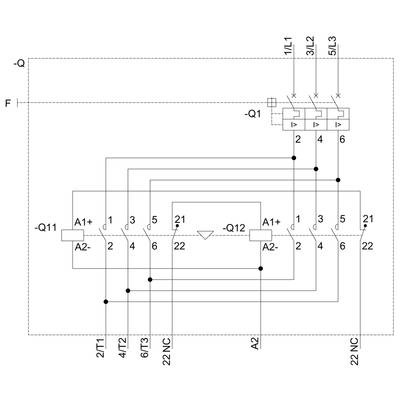

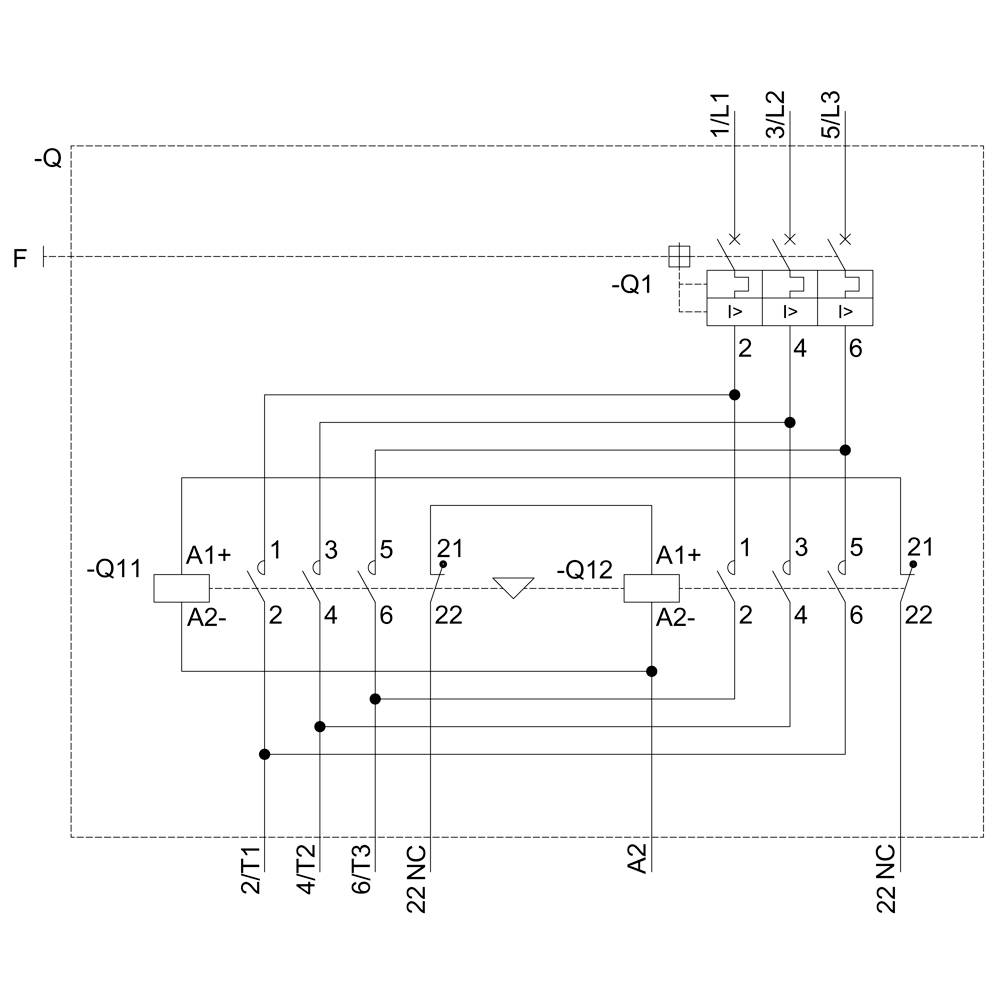

'Circuit diagram of an electrical control system with relays Q1 and Q12, inputs T1 to T4, and output contacts.'

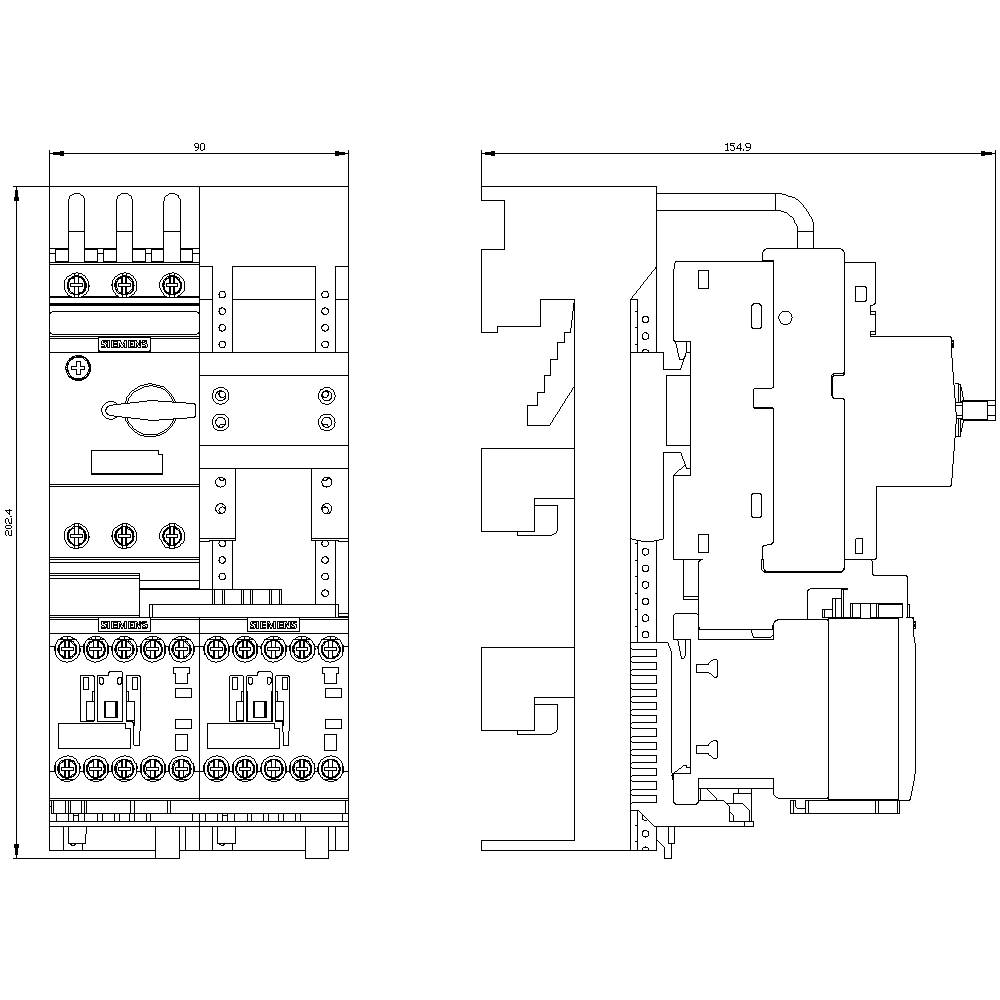

'Technical drawing of an electrical switch with dimensions: width 90 mm, height 154.5 mm. Front and side view.'

'Circuit diagram of an electrical switching system with switches and fuses. Components are labelled, showing electrical control elements.'

1/6

Image similar

Datasheet (PDF)

Sales and shipping:

Number

Piece(s)

Total (€ 315.13 / piece)

€

Report legal concerns

Technical specifications

Protection class: IP20
Design of the Electrical Connection: screw terminals.
Size of the load feeder: S00
Operating frequency: 50/60 Hz

Product type: Feeder terminal

Motor power at 400 V: 1.1 kW

Nominal voltage: 690 V

Type: Mounting type: For snapping onto 60 mm busbar system

Manufacturer part #: 3RA22101DD152BB4

Nominal current: 2.7 A

Nominal current - rounded value: 2.7 A

Type: 3RA2210-1DD15-2BB4

Dim: (W x H x D) 90 x 200 x 156 mm

Width: 90 mm

Height: 200 mm

Depth: 156 mm

Max. temperature: +60 °C

Min. temperature: -20 °C

: 90

: 204 mm

: 155 mm

: FALSE

: 1.1 kW

: 1

: 3.2 A

: 0

: 2.2-3.2 A

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: 24-24 V

: IP20

: FALSE

: FALSE

: CLASS 10

: TRUE

: FALSE

: Screw connection

: Screw connection

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: DC

: Other

: 3.2 A

: 60 °C

: 150000

: 150000

: 65000

: 30000

: Other

: Class 2

Documents & Downloads

Datasheet

Datasheet 1699087 Siemens 3RA2210-1DD15-2BB4 3RA22101DD152BB4 Feeder terminal Motor power at 400 V 1.1 kW 690 V Nominal current 2.7 A

User & Safety Instructions

User & Safety Instructions 1699087 Siemens 3RA2210-1DD15-2BB4 3RA22101DD152BB4 Feeder terminal Motor power at 400 V 1.1 kW 690 V Nominal current 2.7 A

Description

Load feeder fuseless, Reversing duty 400 V AC, Size S00 3.50...5.00 A 230 V AC screw terminal for installation on standard mounting rail Type of coordination 1, Iq = 150 kA 1 NC (contactor)
