Buy Siemens 3RA2210-1ED15-2BB4 3RA22101ED152BB4 Feeder terminal Motor power at 400 V 1.5 kW 690 V Nominal current 3.6 A

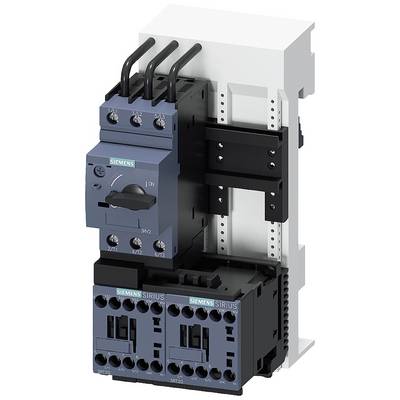

An electrical component, consisting of contactors and a main switch, mounted on a DIN rail. Used in control panels.

Image similar

Interior of a factory hall with machinery. On the left, an open electrical cabinet with cables, on the right a rain-streaked window, and blurred machinery in the background.

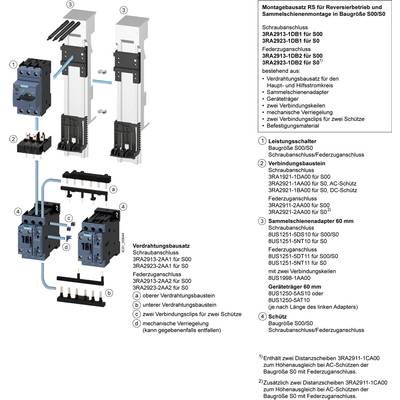

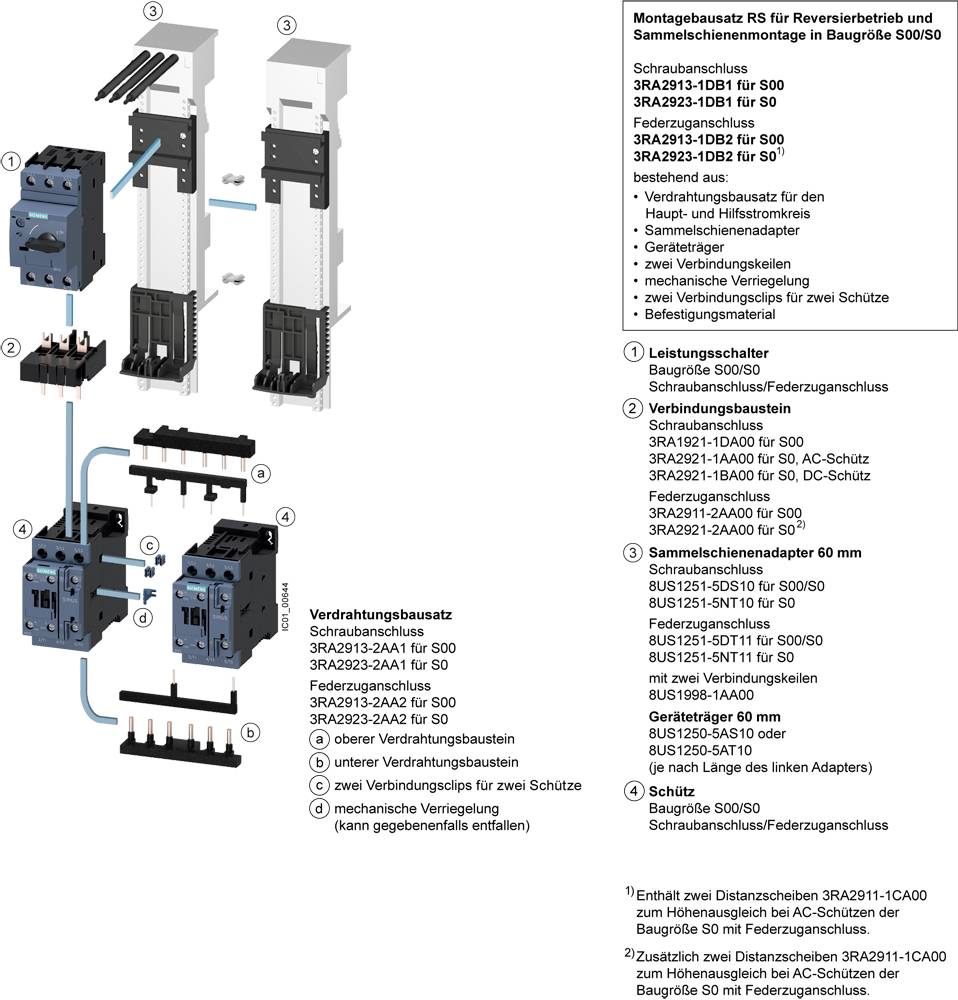

'Mounting Kit RS for Reversing Operation and Busbar Installation in Size S00/S0'. Various screw connections, circuit breakers, and wiring kits shown.

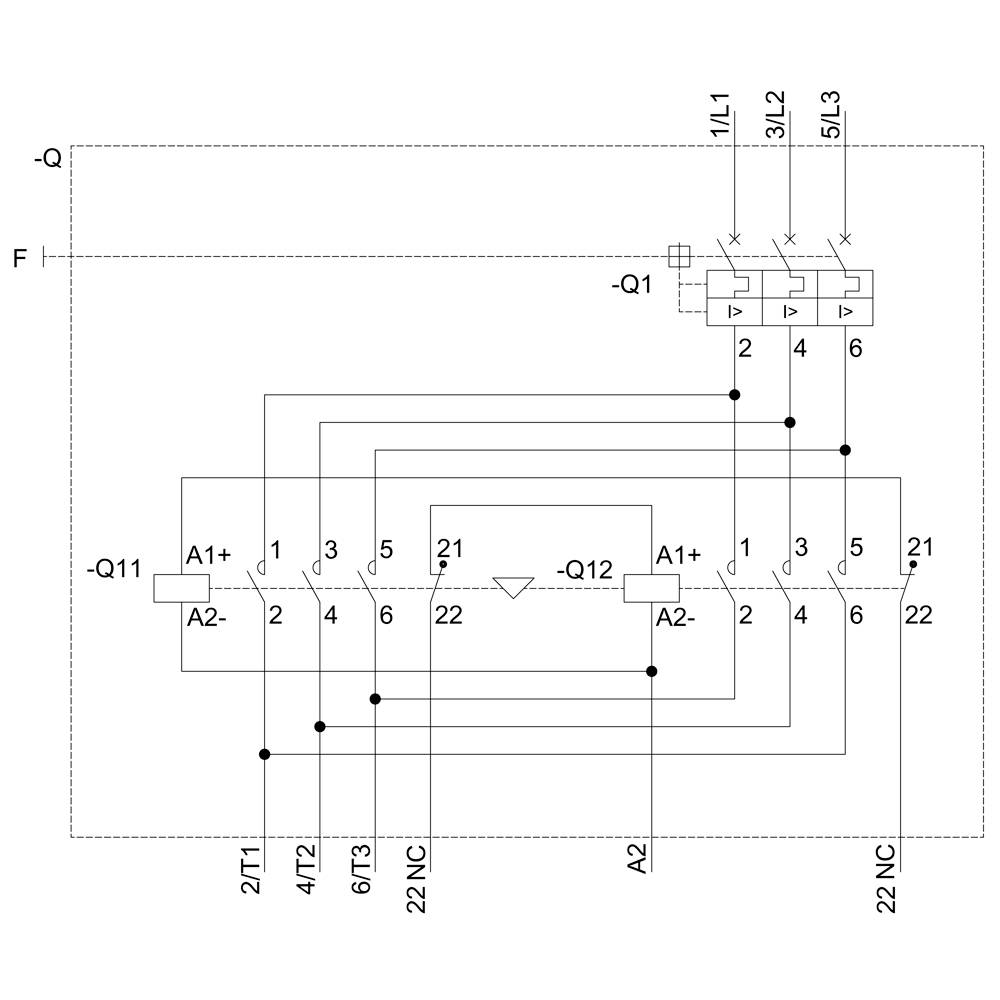

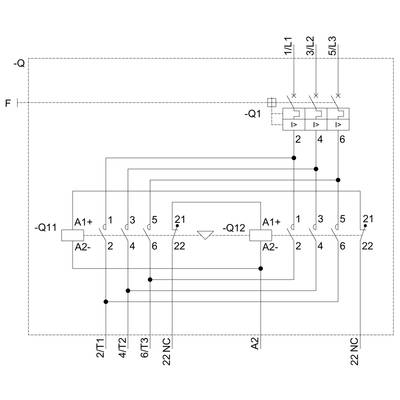

'Circuit diagram of an electrical system with two main components, Q1 and Q12, connected by multiple conductors and contacts.'

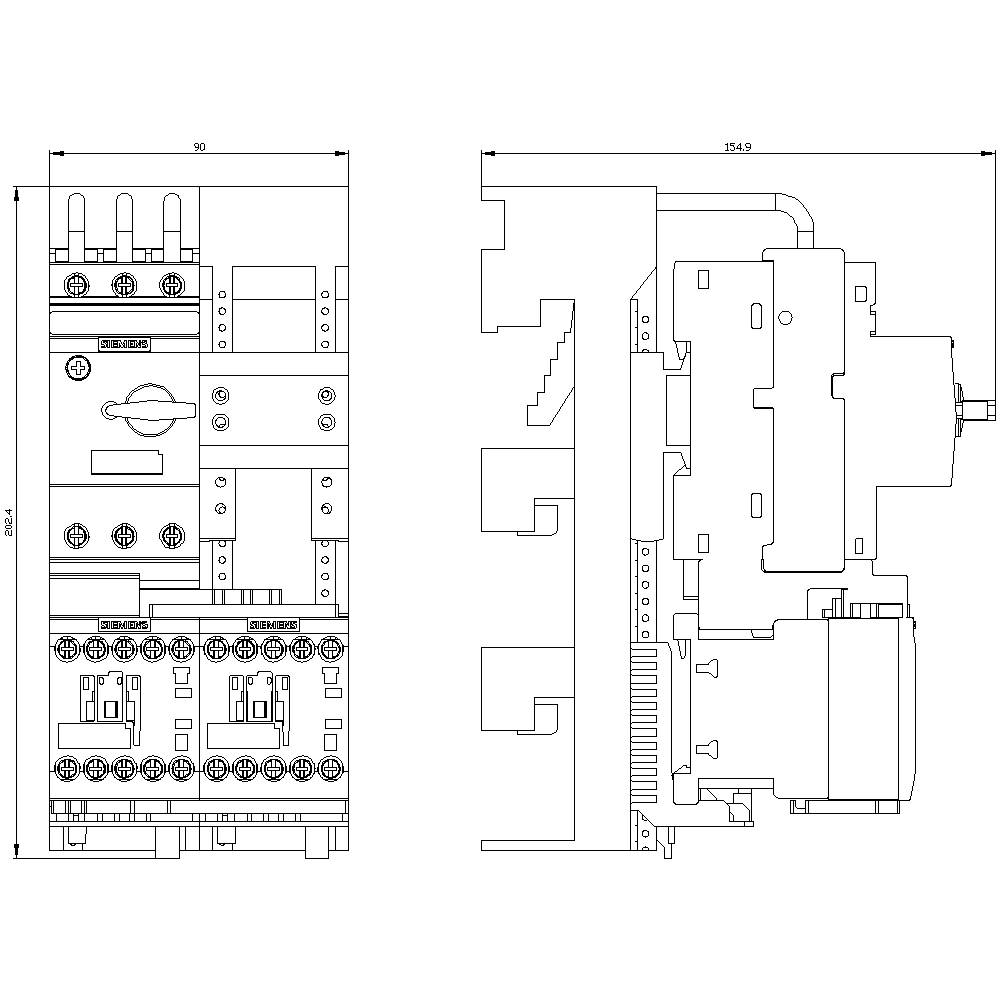

Technical Drawing of an Electrical Control Panel with Front and Side Elevations, Detailing Dimensions and Components.

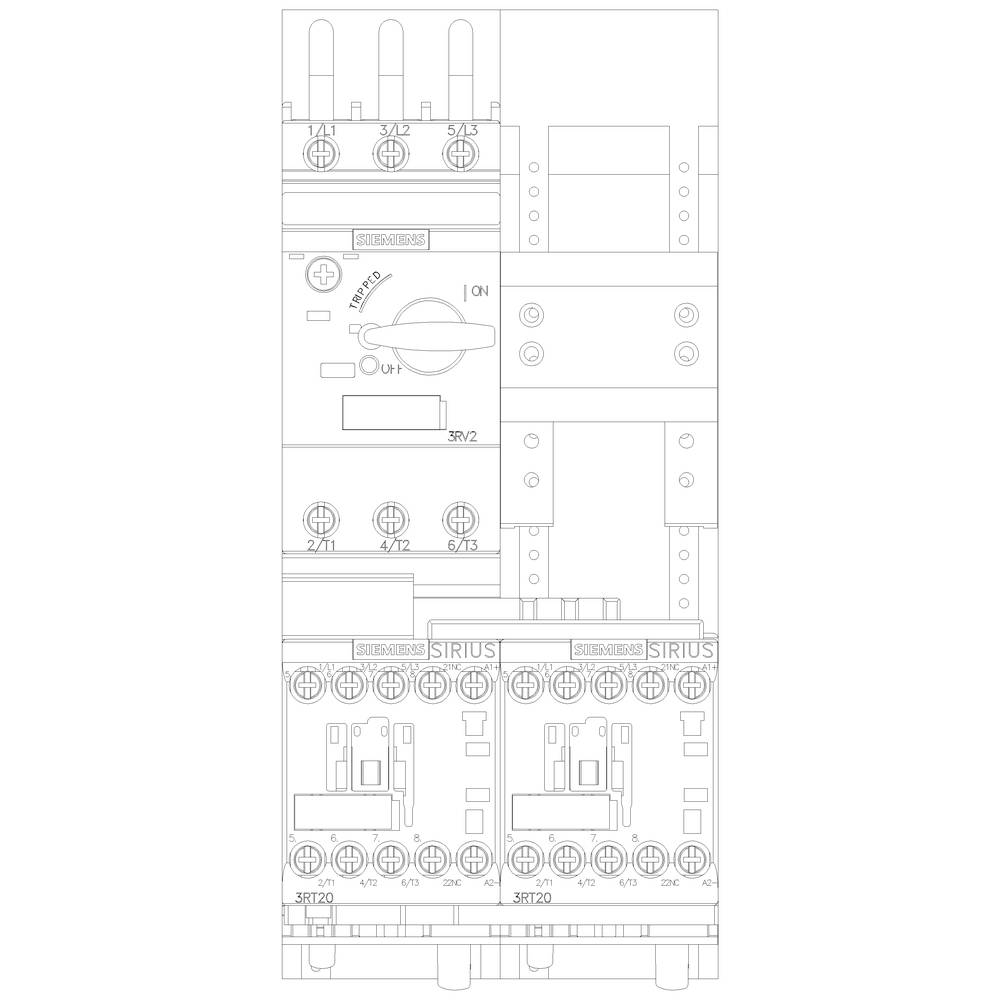

Technical drawing of a switchboard cabinet with switches and labels, showing electrical switching components and connections.

1/6

Image similar

Datasheet (PDF)

Sales and shipping:

Number

Piece(s)

Total (€ 315.13 / piece)

€

Report legal concerns

Technical specifications

Protection class: IP20
Design of the Electrical Connection: screw terminals.
Size of the load feeder: S00
Operating frequency: 50/60 Hz

Product type: Feeder terminal

Motor power at 400 V: 1.5 kW

Nominal voltage: 690 V

Type: Mounting type: For snapping onto 60 mm busbar system

Manufacturer part #: 3RA22101ED152BB4

Nominal current: 3.6 A

Nominal current - rounded value: 3.6 A

Type: 3RA2210-1ED15-2BB4

Dim: (W x H x D) 90 x 200 x 156 mm

Width: 90 mm

Height: 200 mm

Depth: 156 mm

Max. temperature: +60 °C

Min. temperature: -20 °C

: 90

: 204 mm

: 155 mm

: FALSE

: 1.5 kW

: 1

: 4 A

: 0

: 2.8-4 A

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: 24-24 V

: IP20

: FALSE

: FALSE

: CLASS 10

: TRUE

: FALSE

: Screw connection

: Screw connection

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: DC

: Other

: 4 A

: 60 °C

: 150000

: 150000

: 65000

: 30000

: Other

: Class 2

Documents & Downloads

Datasheet

Datasheet 1699286 Siemens 3RA2210-1ED15-2BB4 3RA22101ED152BB4 Feeder terminal Motor power at 400 V 1.5 kW 690 V Nominal current 3.6 A

User & Safety Instructions

User & Safety Instructions 1699286 Siemens 3RA2210-1ED15-2BB4 3RA22101ED152BB4 Feeder terminal Motor power at 400 V 1.5 kW 690 V Nominal current 3.6 A

Description

Load feeder fuseless, Reversing duty 400 V AC, Size S00 4.50...6.30 A 24 V DC screw terminal for installation on standard mounting rail Type of coordination 1, Iq = 150 kA 1 NC (contactor)
