Buy Siemens 3RA2210-1KD17-2BB4 3RA22101KD172BB4 Feeder terminal Motor power at 400 V 5.5 kW 690 V Nominal current 11.5 A

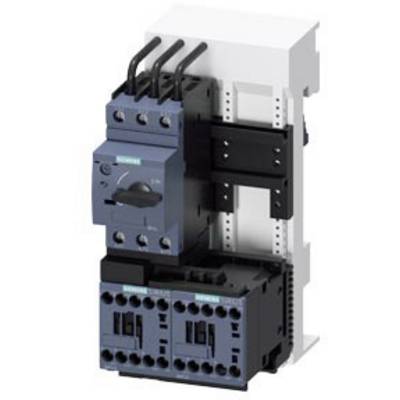

An electrical contactor with a distribution box and several black cables on top, mounted on a white mounting rack.

Image similar

Open electrical control cabinet with cables and electronic components, with a large machine to the right, partially obscured by a rain-streaked window.

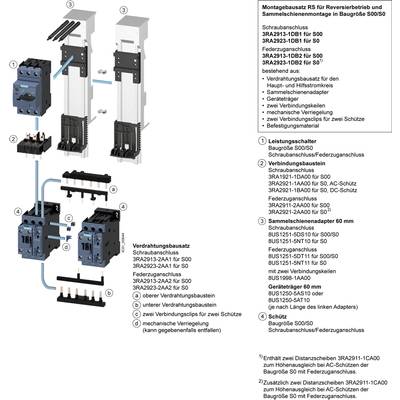

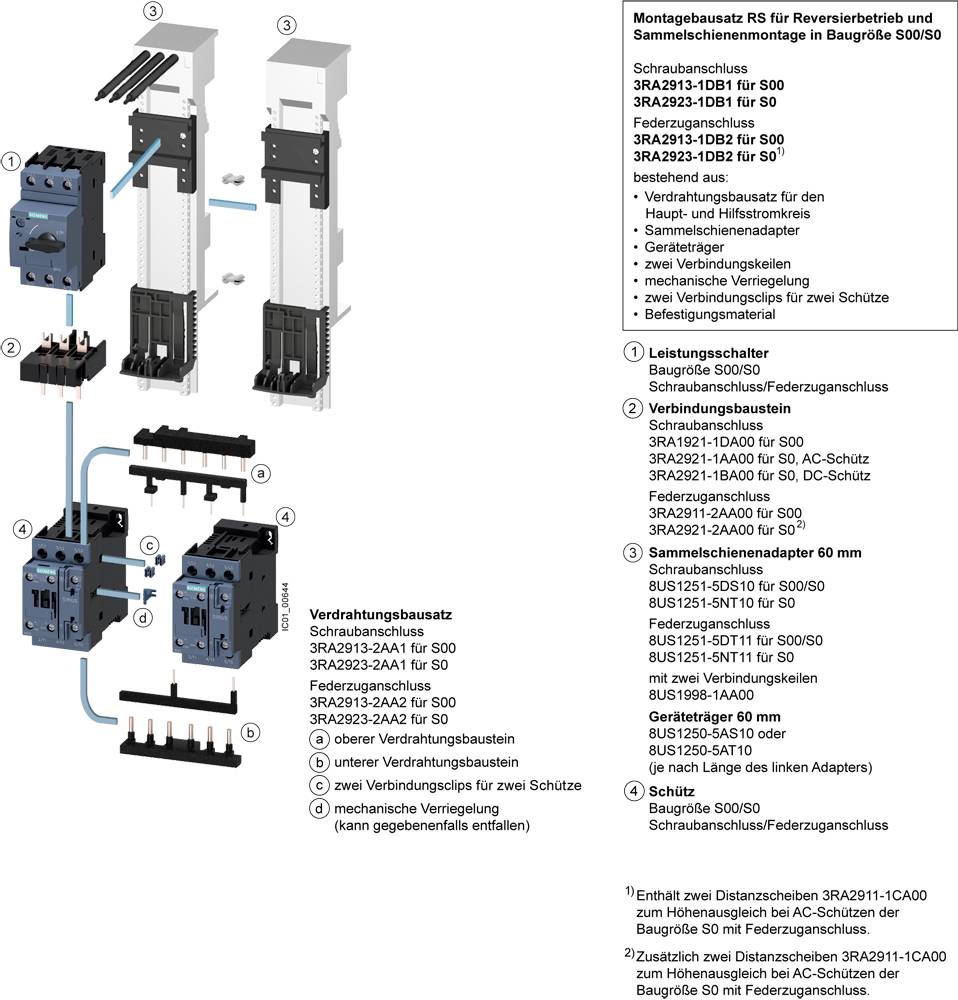

'Mounting kit RS for reversing operation and busbar assembly in size S00/S0. Details include screw connections, circuit breaker, wiring set and component list.'

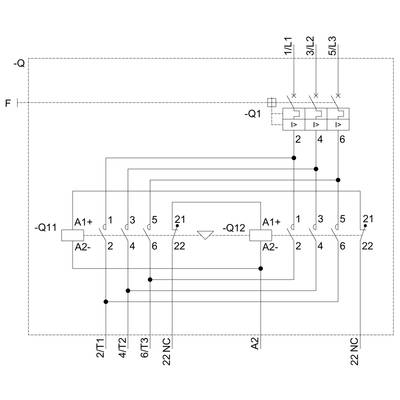

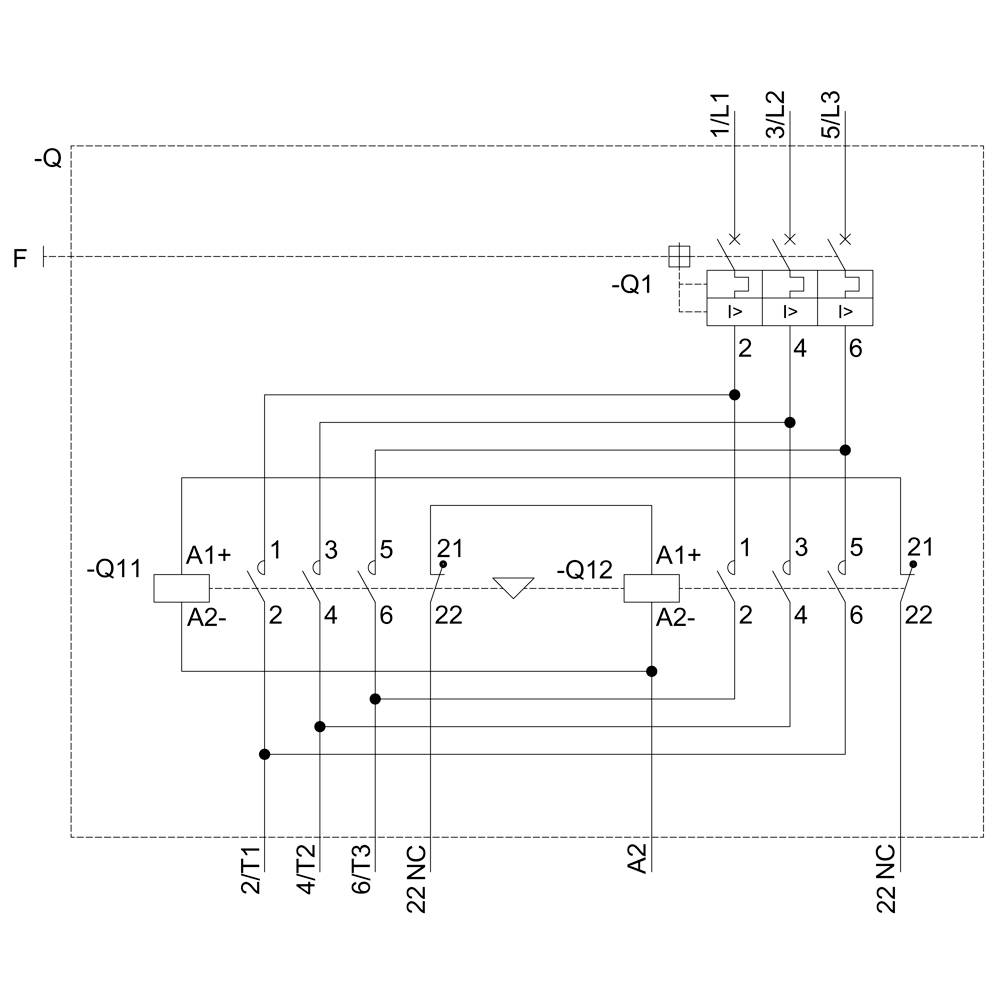

Circuit diagram of an electromechanical relay with multiple terminals and contacts. Connections and switching positions are shown.

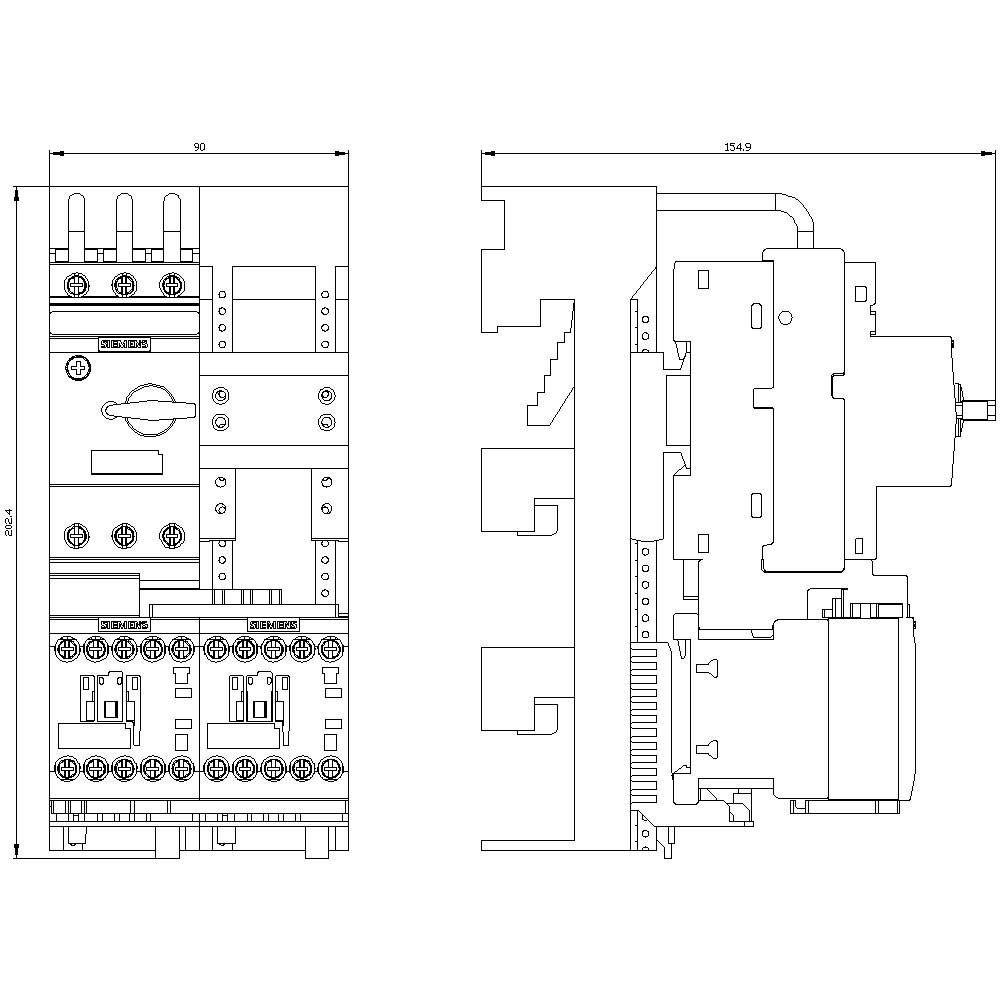

Technical drawing of an electrical switch, front and side view, with dimensions in millimetres.

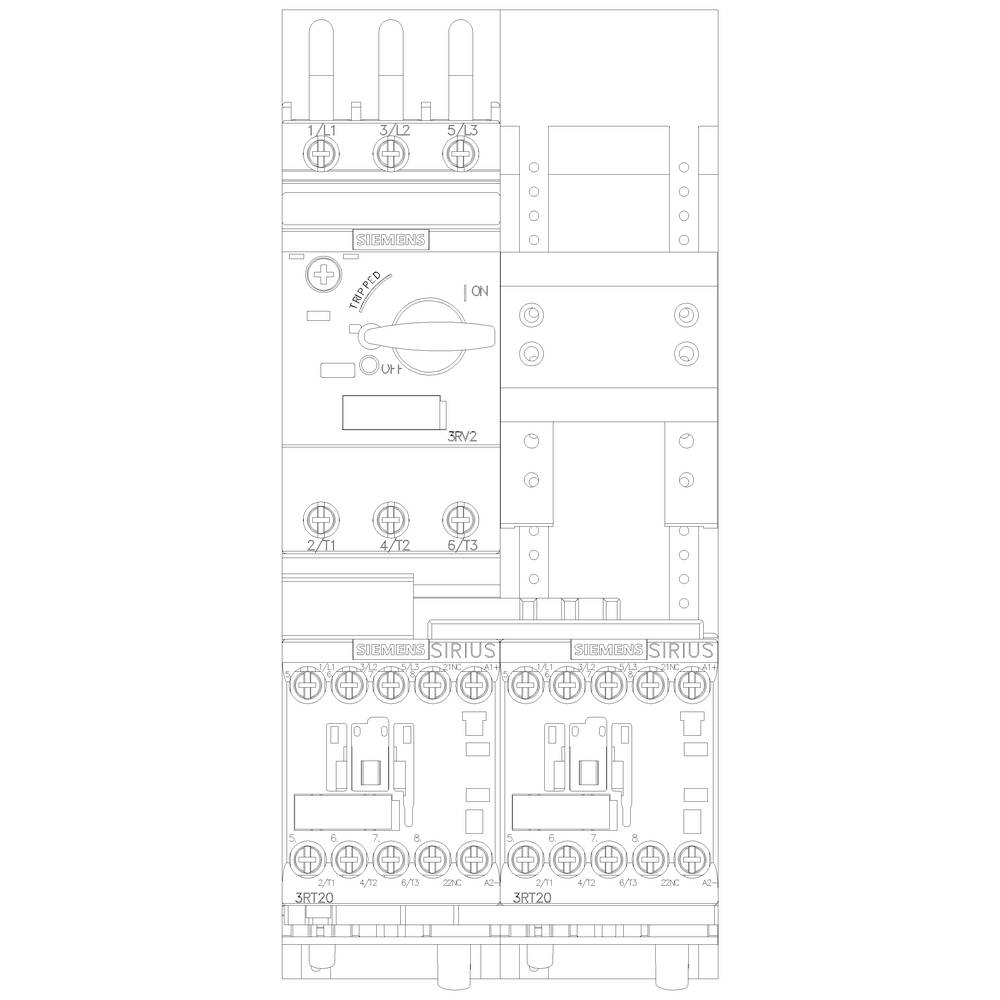

Diagram of an electrical circuit with switches and labels. Shows connections and main components of an electrical system.

1/6

Image similar

Datasheet (PDF)

Sales and shipping:

Number

Piece(s)

Total (€ 352.10 / piece)

€

Report legal concerns

Technical specifications

Protection class: IP20
Design of the Electrical Connection: screw terminals.
Size of the load feeder: S00
Operating frequency: 50/60 Hz

Product type: Feeder terminal

Motor power at 400 V: 5.5 kW

Nominal voltage: 690 V

Type: Mounting type: For snapping onto 60 mm busbar system

Manufacturer part #: 3RA22101KD172BB4

Nominal current: 11.5 A

Nominal current - rounded value: 11.5 A

Type: 3RA2210-1KD17-2BB4

Dim: (W x H x D) 90 x 200 x 156 mm

Width: 90 mm

Height: 200 mm

Depth: 156 mm

Max. temperature: +60 °C

Min. temperature: -20 °C

: 90

: 204 mm

: 155 mm

: FALSE

: 5.5 kW

: 1

: 12 A

: 0

: 9-12.5 A

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: 24-24 V

: IP20

: FALSE

: FALSE

: CLASS 10

: TRUE

: FALSE

: Screw connection

: Screw connection

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: DC

: Other

: 12 A

: 60 °C

: 65000

: 30000

: Other

: Class 1

Documents & Downloads

Datasheet

Datasheet 1704726 Siemens 3RA2210-1KD17-2BB4 3RA22101KD172BB4 Feeder terminal Motor power at 400 V 5.5 kW 690 V Nominal current 11.5 A

User & Safety Instructions

User & Safety Instructions 1704726 Siemens 3RA2210-1KD17-2BB4 3RA22101KD172BB4 Feeder terminal Motor power at 400 V 5.5 kW 690 V Nominal current 11.5 A

Description

Load feeder fuseless, Reversing duty 400 V AC, Size S00 10.0...16.0 A 24 V DC Spring-type terminal for 60 mm busbar systems Type of coordination 1, Iq = 150 kA 1 NC (contactor)
