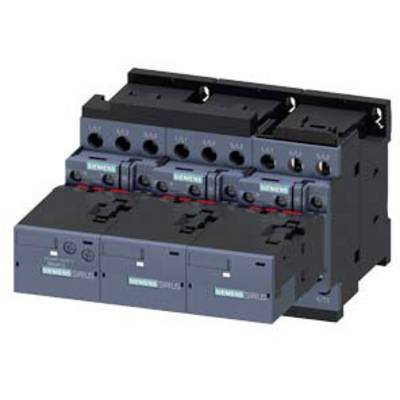

Siemens 3RA2425-8XF32-1AG2 Star-delta combo 3 makers 690 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Star-delta combo
No. of pins
3-pin
Nominal voltage
690 V AC
Connection
Screws
Type
3RA2425-8XF32-1AG2
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 567.23 / piece)
€
Technical specifications
- Type of voltage: AC
- Conductor cross-section single or multi-strand: 10 mm²
- Conductor cross-section for finely-stranded: 10 mm²
- Product type
Star-delta combo
- Type
3RA2425-8XF32-1AG2
- Type
S0
- No. of pins
3-pin
- Contact type
3 makers
- Nominal voltage
690 V AC
- Control voltage (max.)
110 V AC
- Control voltage range
110 V AC (max)
- Mounting type
Snap-in
Screw-fit
- Connection
Screws
- Durability
1000 0000
IP20
- Min. temperature
-25 °C
- Max. temperature
+60 °C
- Width
135 mm
- Height
101 mm
- Depth
171 mm

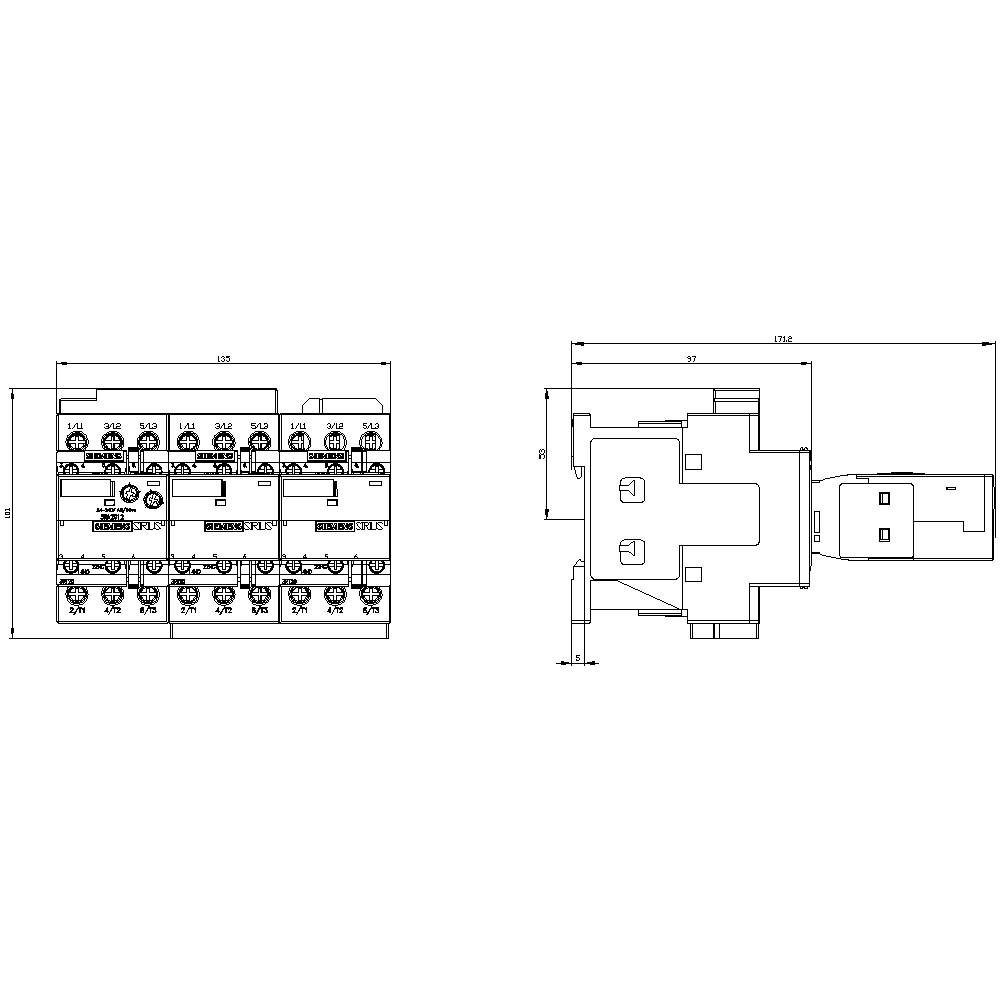

- Dim
(W x H x D) 135 x 101 x 171 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Star-delta contactor
15 kW
3
0
40 A
IP20
Screw connection
AC
Other
Documents & Downloads
Datasheet
Datasheet 1702507 Siemens 3RA2425-8XF32-1AG2 Star-delta combo 3 makers 690 V AC 1 pc(s)
Datasheet 1702507 Siemens 3RA2425-8XF32-1AG2 Star-delta combo 3 makers 690 V AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1702507 Siemens 3RA2425-8XF32-1AG2 Star-delta combo 3 makers 690 V AC 1 pc(s)
Description

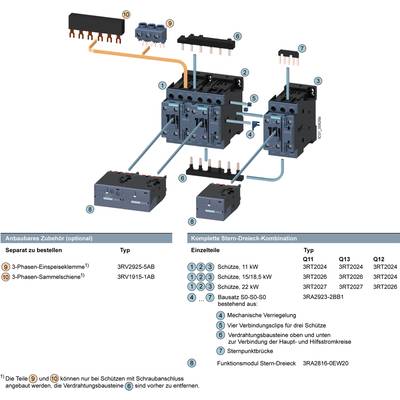

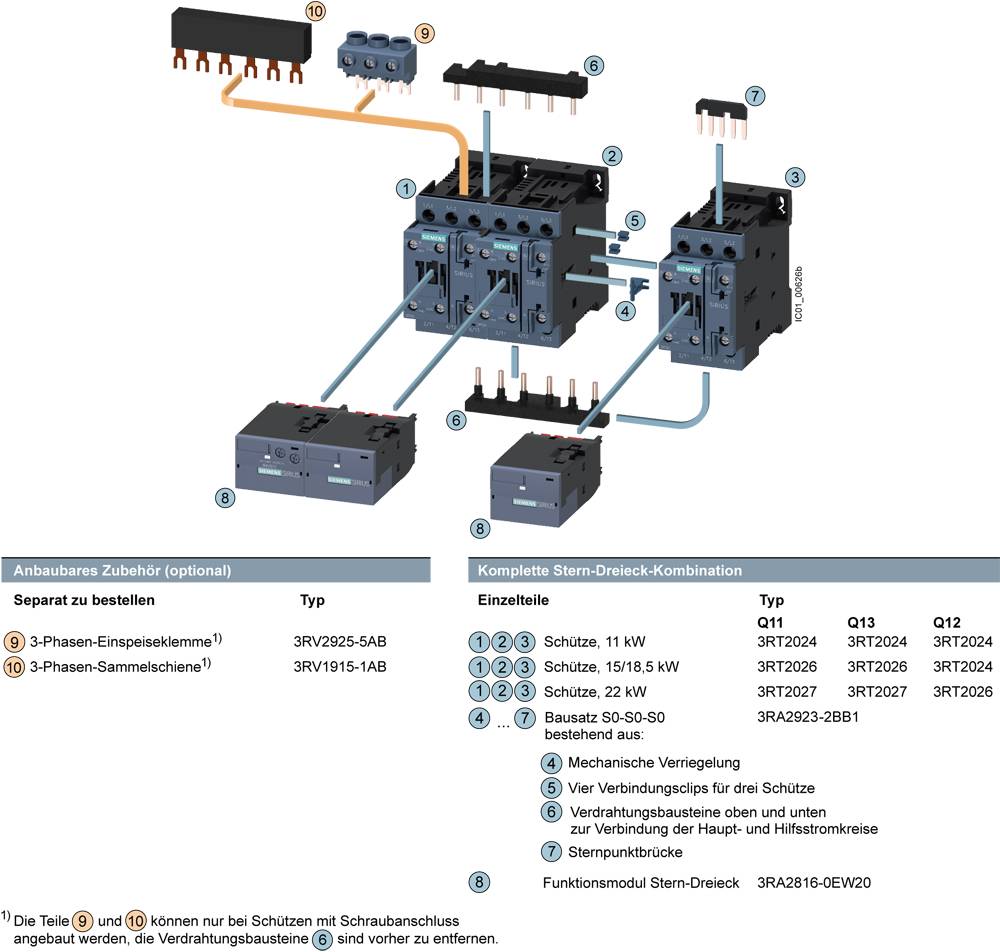

Contactor assembly for star-delta (wye-delta) start AC-3, 22 kW/400 V, 24 V DC 3-pole, size S0 screw terminals electrical and mechanical interlock 3 NO + 3 NC integrated
