Siemens 3RA6870-4AB PE tap 1 pc(s) Adjustment range (amperage): 63 A (max) (W x H x D) 15 x 60 x 32 mm
EAN:
Part number:
Item no:
Product type
PE tap
Amperage adjustment range (max.)
63 A
Connection
Screws
Type
3RA6870-4AB
Adjustment range (amperage)
63 A (max)
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 13.44 / piece)
€
Technical specifications
- Execution of the screw connection for main contacts: M3
- Weight: 0,029 kg
- Product type
PE tap
- Type
3RA6870-4AB
- Amperage adjustment range (max.)
63 A
- Adjustment range (amperage)
63 A (max)
- No. of pins
1-pin
- Min. temperature
-20 °C
- Max. temperature
+60 °C
- Connection
Screws
IP20
- Depth
32 mm
- Width
15 mm
- Height
60 mm
- Dim

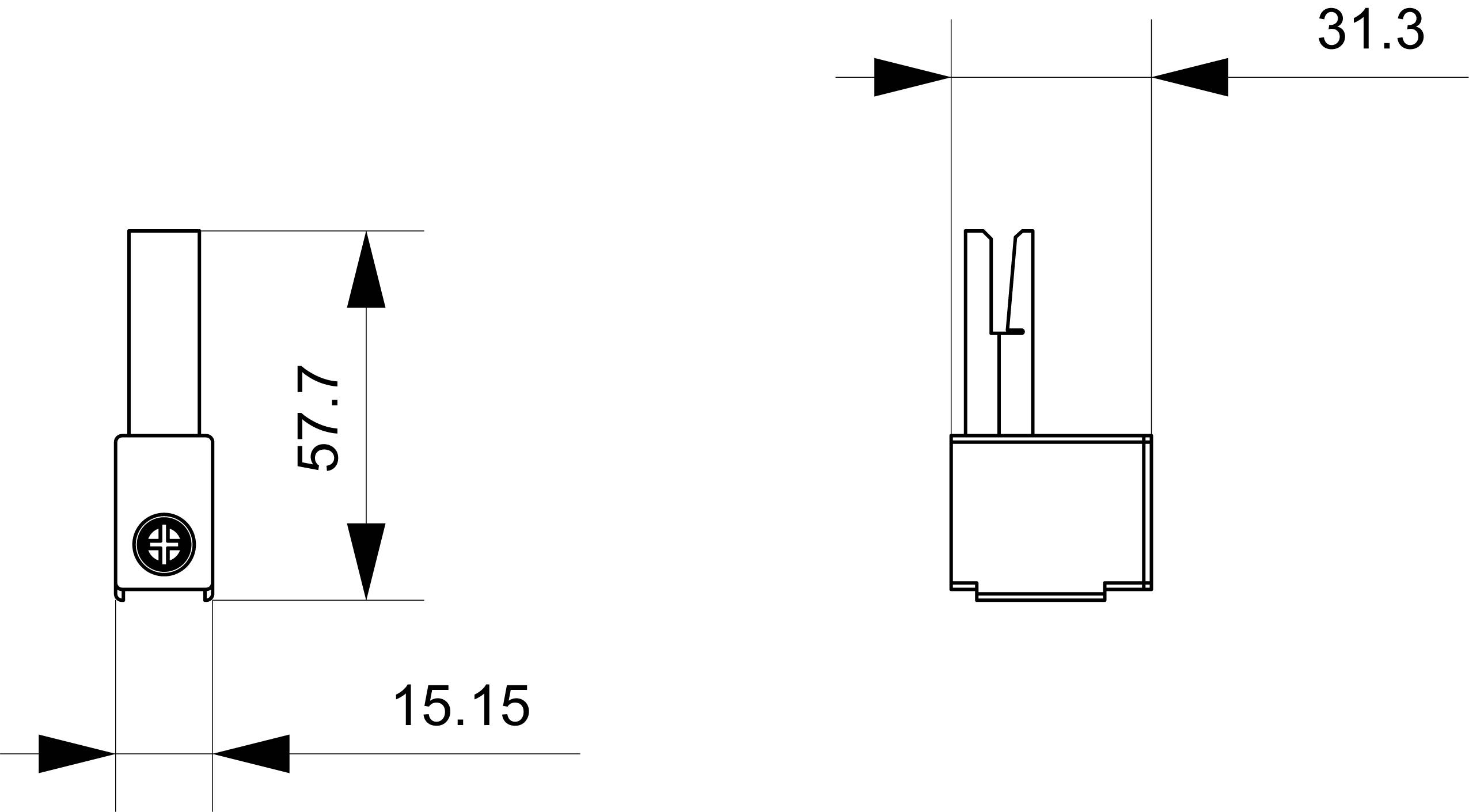

(W x H x D) 15 x 60 x 32 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
1
Screw connection
TRUE
FALSE
63 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1701543 Siemens 3RA6870-4AB PE tap 1 pc(s) Adjustment range (amperage): 63 A (max) (W x H x D) 15 x 60 x 32 mm
User & Safety Instructions
User & Safety Instructions 1701543 Siemens 3RA6870-4AB PE tap 1 pc(s) Adjustment range (amperage): 63 A (max) (W x H x D) 15 x 60 x 32 mm
Description
In-line fuse switch disconnector 3-pole selectable, Sz. 1 I=250 A, U=690 V AC Flat terminal M10, new design for current transformers that can be integrated with electronic fuse monitoring The 3NJ4 fuse switch disconnectors for low-voltage distribution. 3NJ4 1-pole and 3-pole in-line fuse switch disconnectors can be installed in low-voltage distribution boards, substations and cable distribution cubicles. Key features of the Siemens 3NJ4 fuse switch disconnectors: 1. Compliance with IEC/EN 60439-1 and IEC/EN 60947-3. 2. Voltage levels up to 690 V AC. 3. Parking position for maintenance. 4. Vertical and horizontal mounting position. 5. Weathering resistance. 6. Degree of protection IP30 with closed fuse carriers, IP10 with open fuse carriers. www.siemens.com/switching-devices. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
