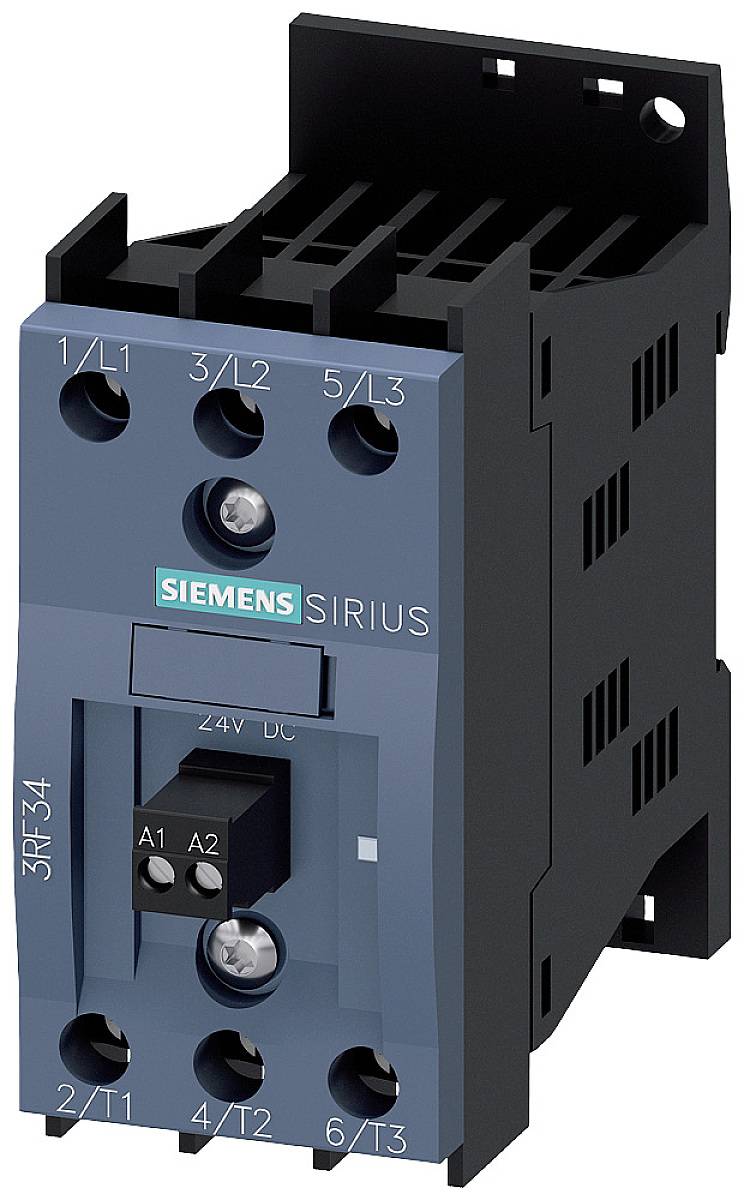

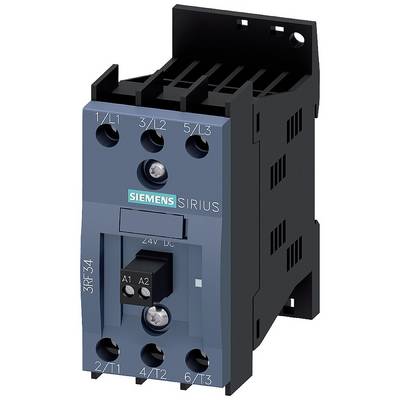

Siemens 3RF3405-1BB26 SSC 2 makers 2.7 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
SSC
No. of pins
3-pin
Current load
2.7 A
Connection
Screws
Type
3RF3405-1BB26
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 168.06 / piece)
€
Technical specifications
- Voltage type: AC
- Conductor cross-section single-wire or multi-wire: 6 mm²
- Conductor cross-section: Fine strand 10 mm²
- Mounting type: Snap-on fastening: Screw fixing
- Load current: 2.7 A
- Number of pins: 3polig
- Product type
SSC
- Type
3RF3405-1BB26
- No. of pins
3-pin
- Contact type
2 makers
- Current load
2.7 A
- Mounting type
Snap-in
Screw-fit
- Connection
Screws
- Min. temperature
-25 °C
- Max. temperature
+60 °C

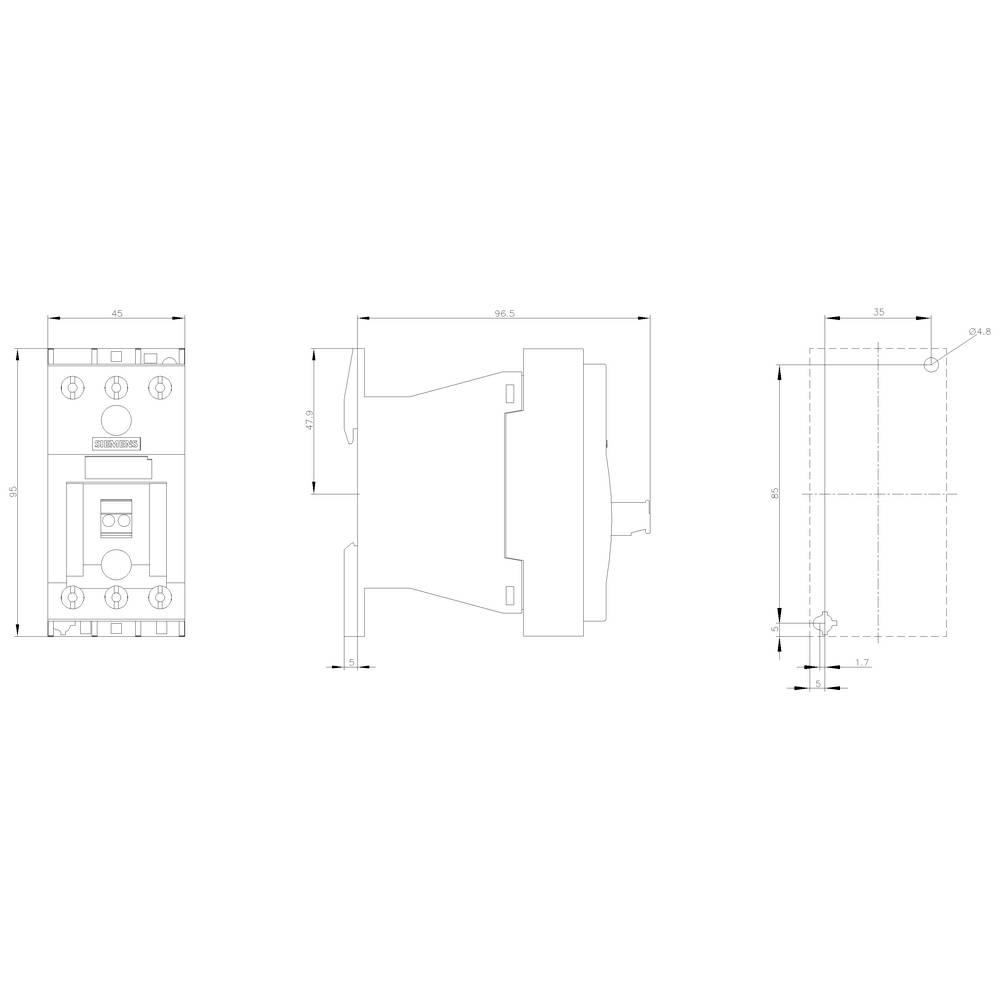

- Width
45 mm
- Height
95 mm
- Depth
100.8 mm
- Dim
(W x H x D) 45 x 95 x 100.8 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
3
TRUE
5.2 A
AC
5.2 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1699263 Siemens 3RF3405-1BB26 SSC 2 makers 2.7 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1699263 Siemens 3RF3405-1BB26 SSC 2 makers 2.7 A 1 pc(s)
Description
DSS1E-X for ET200S High Feature direct soft starter Setting range 2.4...8 A Electronic switching Electronic protection AC-3, up to 3 kW / 400 V expandable for Brake control module 2DI module Motor starter ES Circuit breaker signaling parameterizable DPV 1-capable PROFIENERGY-capable to PN
