Siemens 3RF3405-2BB24 SSC 2 makers 1 pc(s)
EAN:
Part number:
Item no:
Product type
SSC
No. of pins
3-pin
Connection
Spring-loaded connector
Type
3RF3405-2BB24
Contact type
2 makers
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 159.66 / piece)
€
Technical specifications
- Voltage type: AC
- Conductor cross-section: Single-wire or multi-wire: 2.5 mm²
- Conductor cross-section: Fine strand 1.5 mm²
- Mounting type: Snap-on fastening: Screw fixing
- Number of pins: 3polig
- Product type
SSC
- Type
3RF3405-2BB24
- No. of pins
3-pin
- Contact type
2 makers
- Mounting type
Snap-in
Screw-fit
- Connection
Spring-loaded connector
- Min. temperature
-25 °C
- Max. temperature
+60 °C

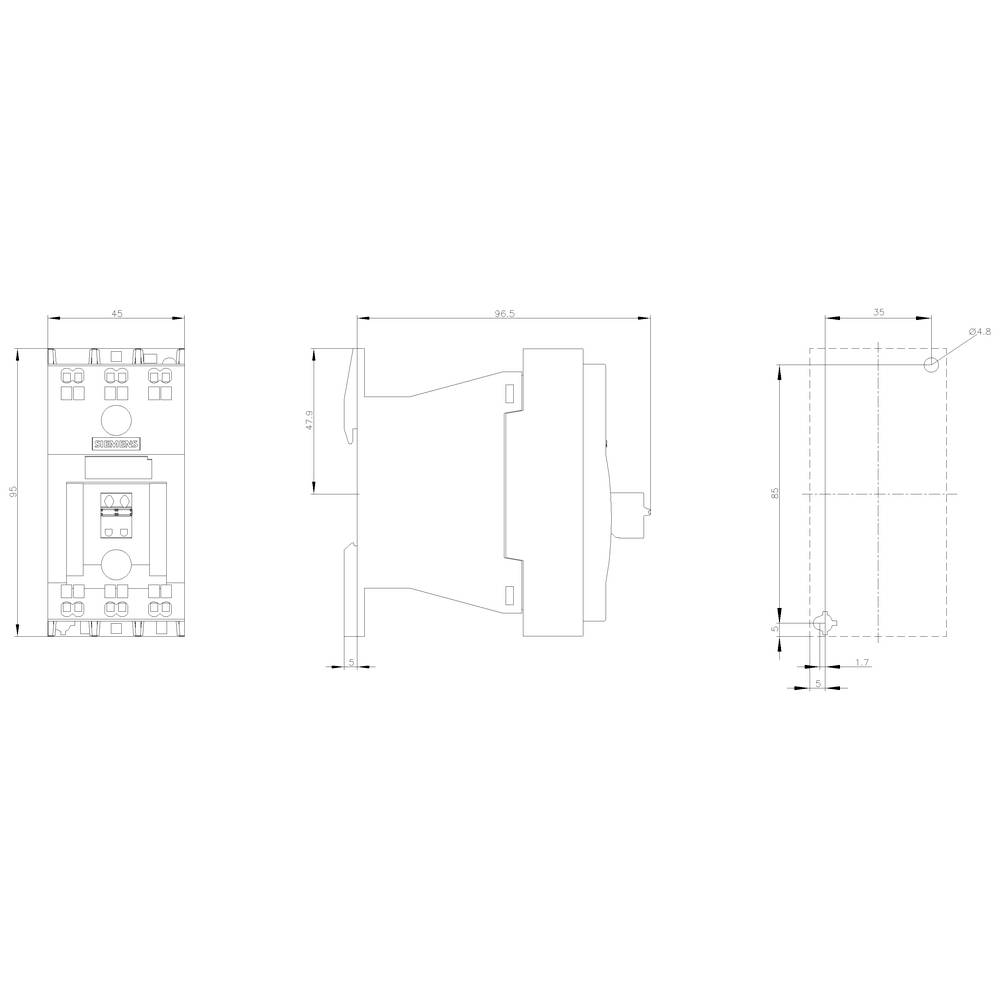

- Width
45 mm
- Height
95 mm
- Depth
100.8 mm
- Dim
(W x H x D) 45 x 95 x 100.8 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
3
TRUE
5.2 A
AC
5.2 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1699264 Siemens 3RF3405-2BB24 SSC 2 makers 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1699264 Siemens 3RF3405-2BB24 SSC 2 makers 1 pc(s)
Description
Load feeder fuseless, Direct-on-line starting 400 V AC, Size S0 13...20 A 230 V AC screw terminal for installation on standard mounting rail (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NO+1 NC (contactor)
