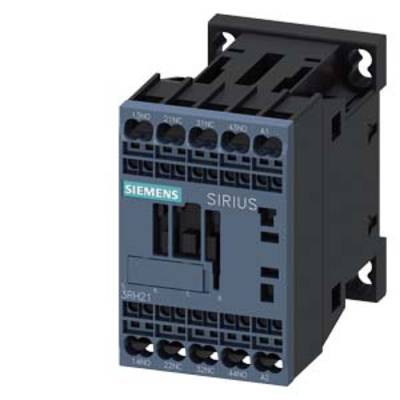

A Siemens SIRIUS contactor, an electrical switching device, commonly used in industrial applications for motor control.

Image similar

A Siemens SIRIUS contactor, an electrical switching device, commonly used in industrial applications for motor control.

'An electrical control cabinet with various electrical components and wires, neatly arranged on multiple levels.'

'Diagram showing the auxiliary shooter's product overview, functions, adapters and accessories. Illustrates connections and mounting options.'

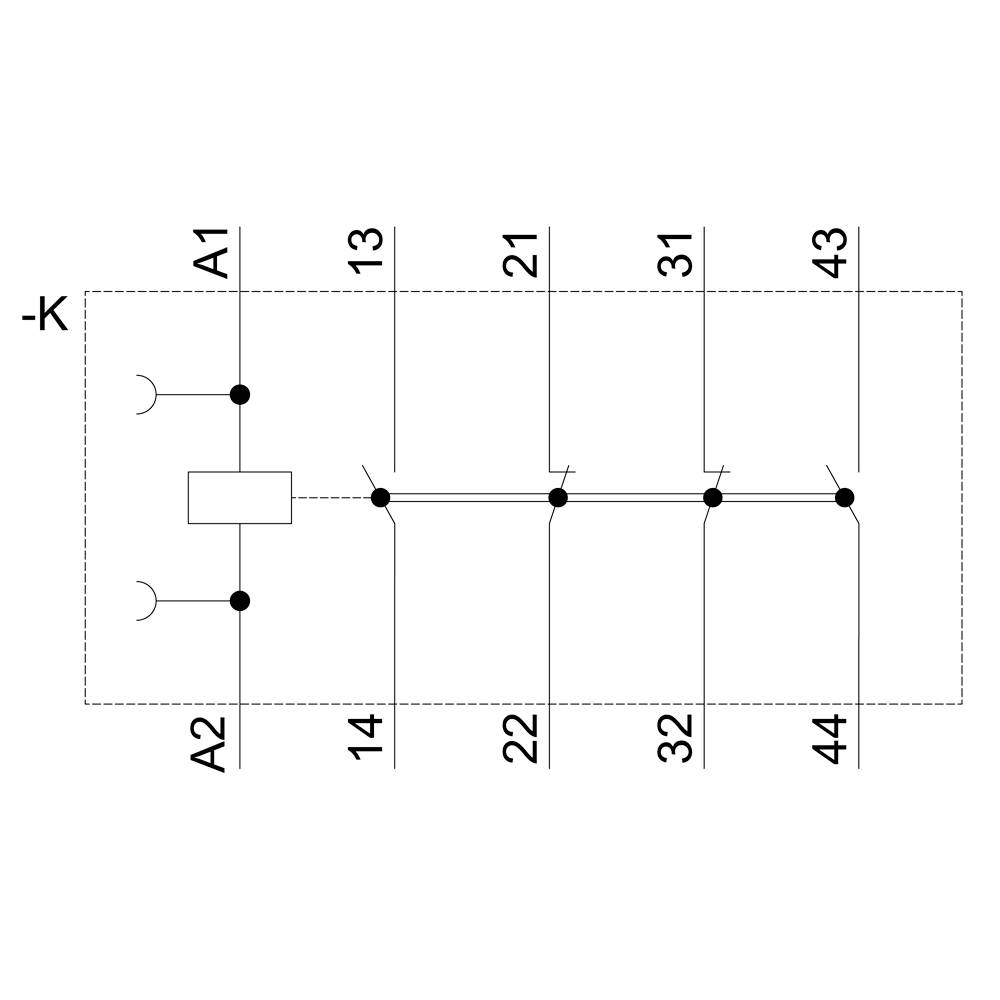

'Contactor circuit diagram with four connection points and coil. Terminals A1 and A2 connect to the coil; terminals 13–14, 21–22, 31–32, 43–44 in series.'

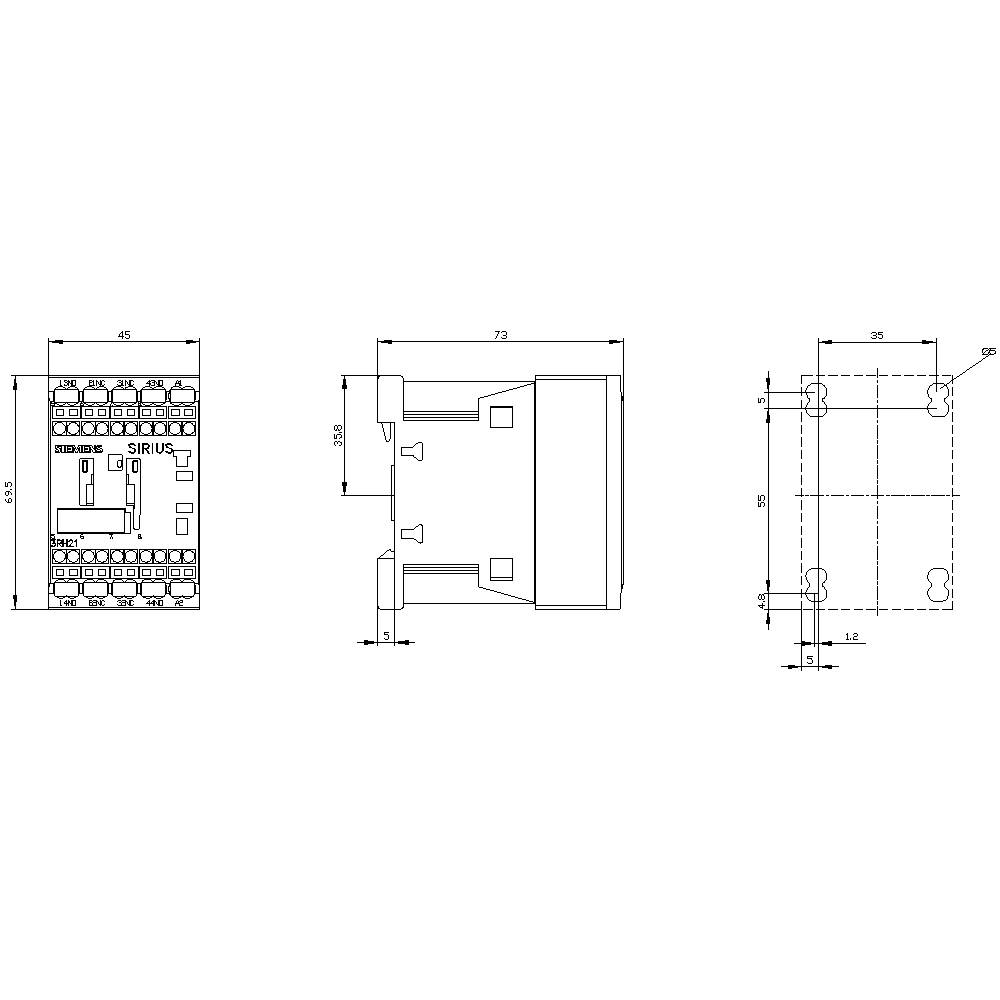

Technical drawing of a switch with dimensions: 45 mm width, 73 mm depth, showing front, side, and top view.

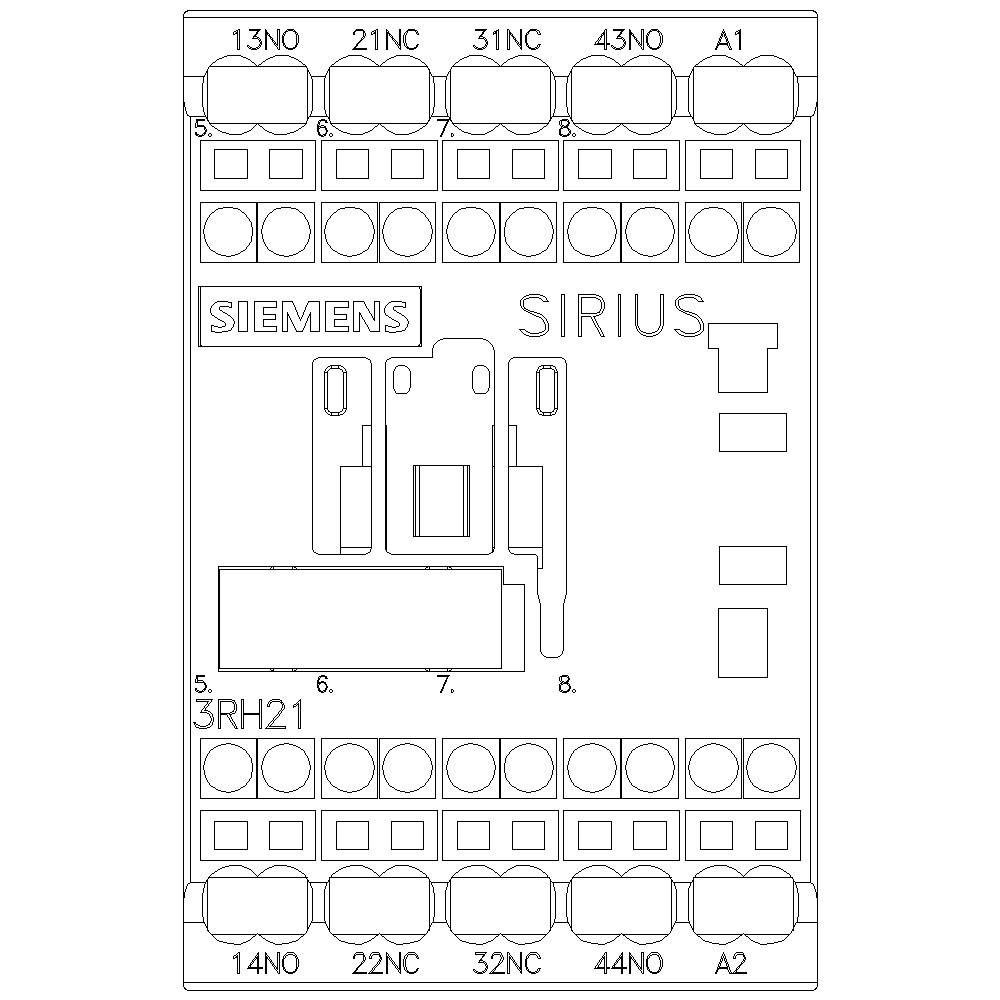

'Siemens Sirius 3RH21 Circuit Diagram with Numbered Terminal Blocks Top and Bottom', shows component positions and connection possibilities.

1/6

Image similar

Product type

Auxiliary contactor

Type

3RH2122-2AB00

Type

S00

Auxiliary contact type

2 makers

2 breakers

Mounting type

Snap-in

Screw-fit

Datasheet (PDF)

Siemens

Show alternatives

Sales and shipping:

Number

Piece(s)

Total (€ 38.65 / piece)

€

Report legal concerns

Technical specifications

Type of voltage: AC

Product type: Auxiliary contactor

Type: 3RH2122-2AB00

Type: S00

Auxiliary contact type: 2 makers
2 breakers

Mounting type: Snap-in
Screw-fit

Durability: 3000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 70 mm

Depth: 73 mm

Dim: (W x H x D) 45 x 70 x 73 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 2

: 2

: 3 A

: 24-24 V

: 24-24 V

: FALSE

: Spring clamp connection

: AC

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1736313 Siemens 3RH2122-2AB00 Auxiliary contactor 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1736313 Siemens 3RH2122-2AB00 Auxiliary contactor 1 pc(s)

Description

Contactor relay, 2 NO + 2 NC, 48 V DC, Size S00, Spring-type terminal

Hints

Please note that the product is a custom-made and therefore exempt from the returns policy. Special order, no right of withdrawal.
