A Siemens electromagnetic contactor from the SIRIUS series, model 3RH211. Used in electrical control circuits.

Image similar

A Siemens electromagnetic contactor from the SIRIUS series, model 3RH211. Used in electrical control circuits.

Open electrical cabinet with various electronic components, cables, and control units on multiple levels, used for controlling equipment.

'Switchgear Overview: Installation of Functional Modules with Auxiliary Contactors and Air Gap Adapters to Optimise Control Circuits.'

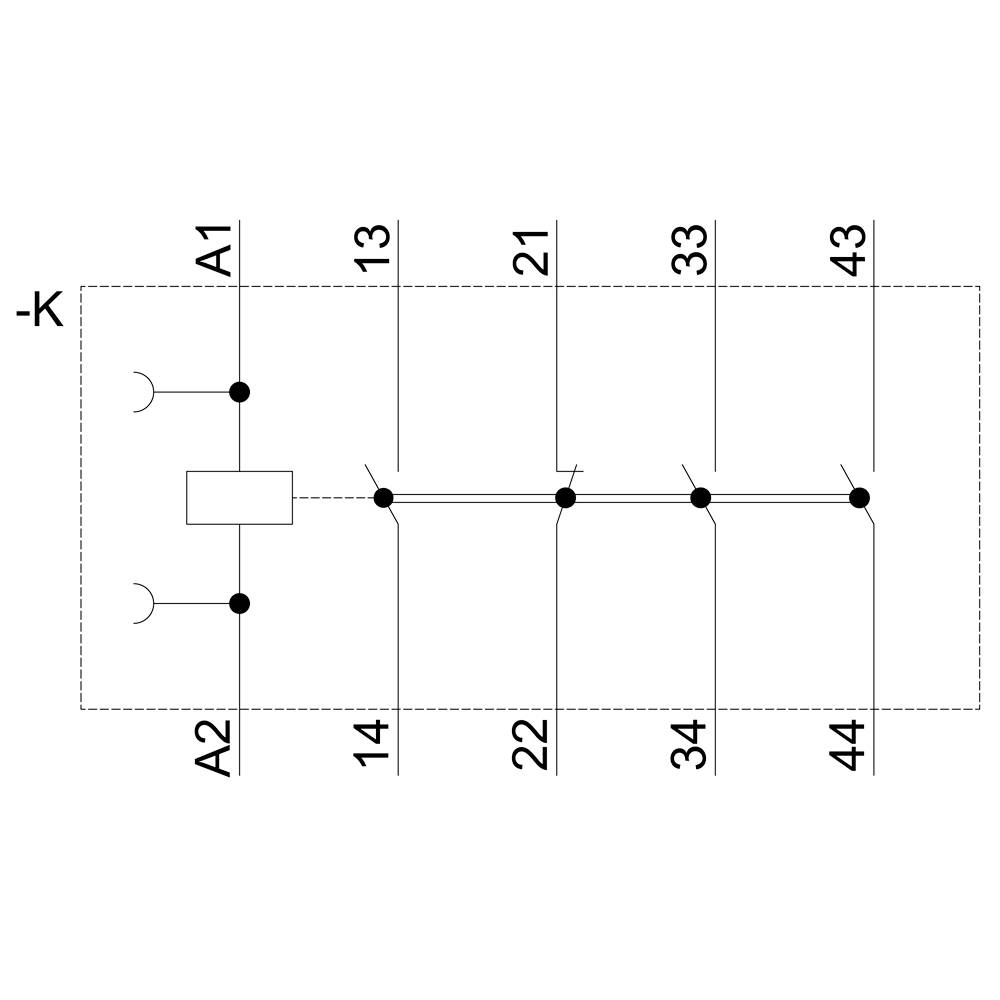

Circuit diagram of a step relay: Connections A1, A2, and outputs 13, 14, 21, 22, 33, 34, 43, 44. Connections between the points.

Technical drawing of an electronic component with three views, dimensions in millimetres, showing detailed measurements and connection positions.

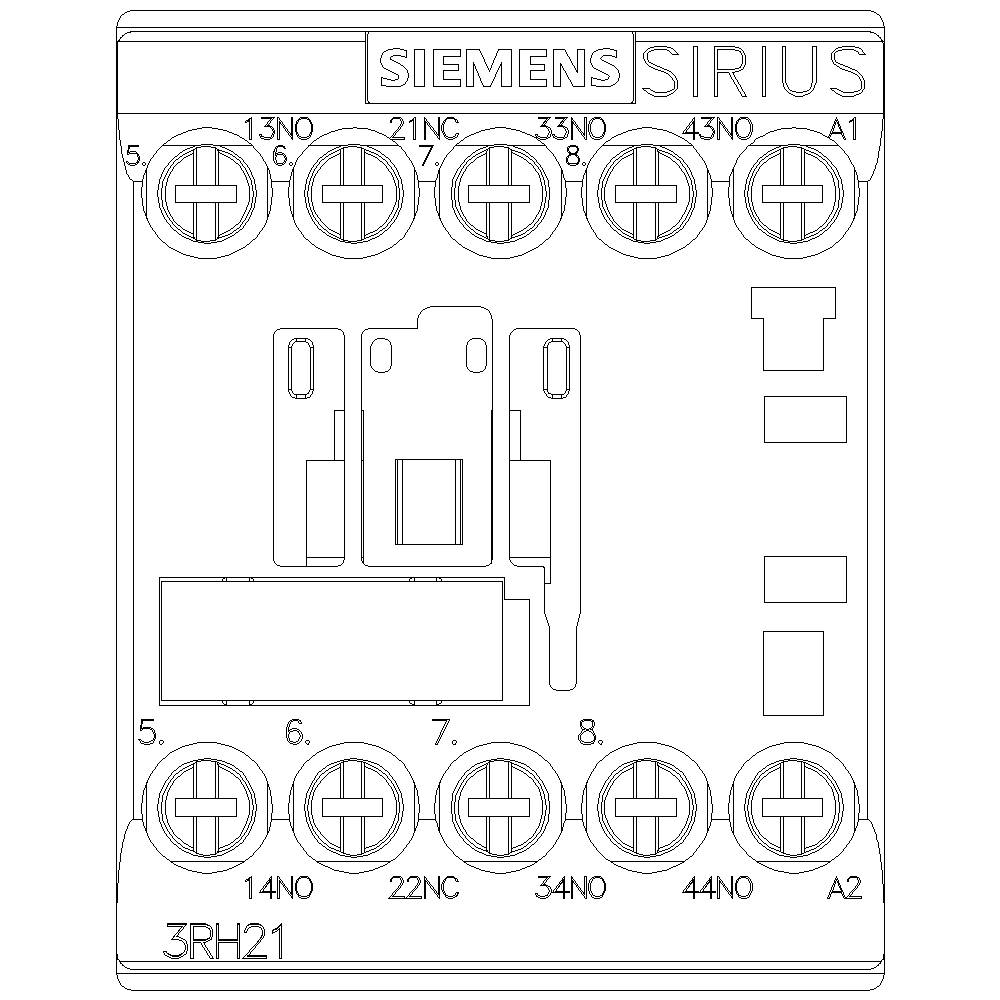

Representation of a Siemens SIRIUS contactor showing the numbering of connections, which indicate connection points and switching contacts.

1/6

Image similar

Product type

Auxiliary contactor

Type

3RH2131-1AN20

Type

S00

Auxiliary contact type

1 breaker

3 makers

Mounting type

Snap-in

Screw-fit

Datasheet (PDF)

Siemens

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 50.41 / piece)

€

Report legal concerns

Technical specifications

Type of voltage: AC

Product type: Auxiliary contactor

Type: 3RH2131-1AN20

Type: S00

Auxiliary contact type: 1 breaker
3 makers

Mounting type: Snap-in
Screw-fit

Durability: 3000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 57.5 mm

Depth: 73 mm

Dim: (W x H x D) 45 x 57.5 x 73 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 3

: 1

: 3 A

: Screw connection

: AC

Documents & Downloads

Datasheet

Datasheet 1736378 Siemens 3RH2131-1AN20 Auxiliary contactor 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1736378 Siemens 3RH2131-1AN20 Auxiliary contactor 1 pc(s)

Description

Coupling contactor relay, 3 NO + 1 NC, 24 V DC, 0.7 ... 1.25* US, Size S00, screw terminal suitable for PLC outputs

Hints

Please note that the product is a custom-made and therefore exempt from the returns policy. Special order, no right of withdrawal.
