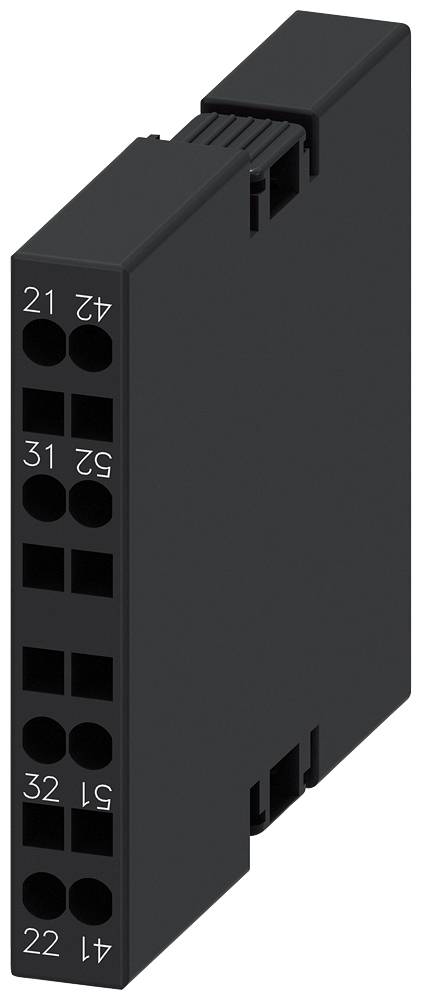

Electronic module with multiple numbered connections in two rows, shown in a diagonal view. Top surface closed.

Electronic module with multiple numbered connections in two rows, shown in a diagonal view. Top surface closed.

A control cabinet with electronic components on the left and a large industrial machine behind a rain-streaked window on the right.

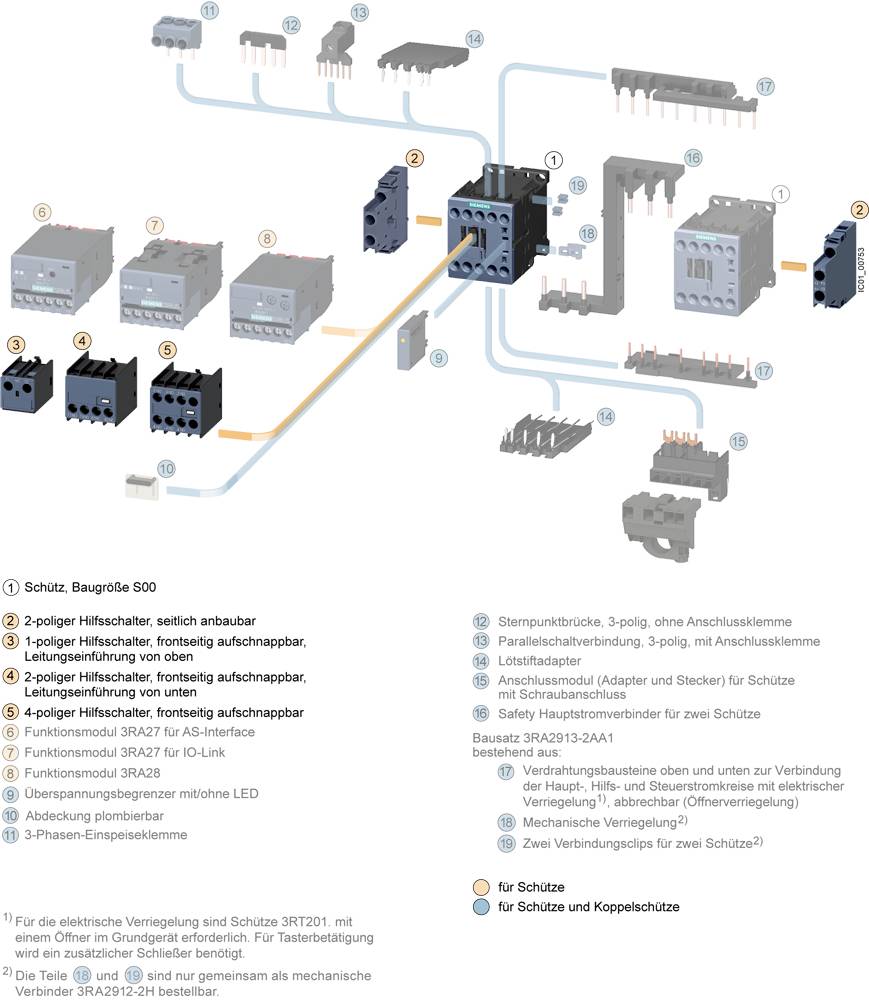

Representation of shooters and their accessories, including auxiliary switches and connecting elements. Each element is numbered and labelled.

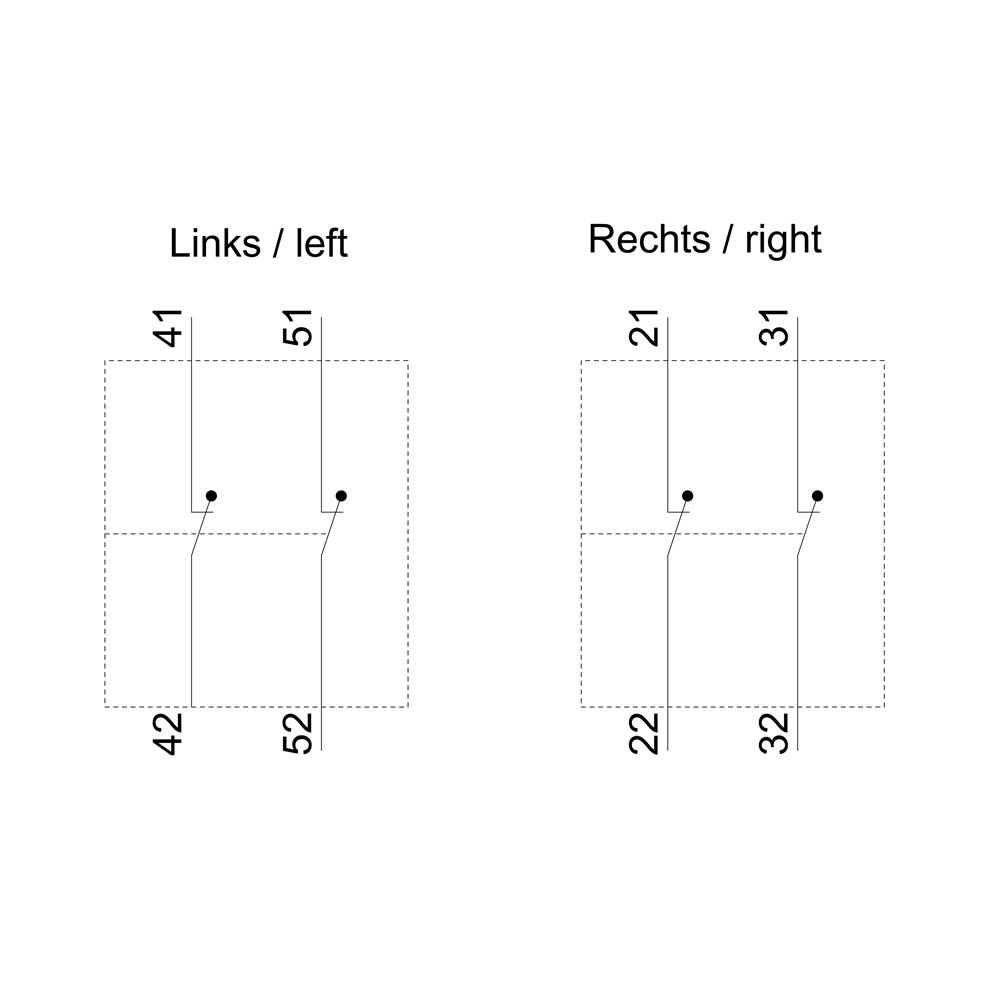

'Diagram shows two rectangular circuit diagrams. Left: 41 to 42, 51 to 52. Right: 21 to 22, 31 to 32. Representation of connections.'

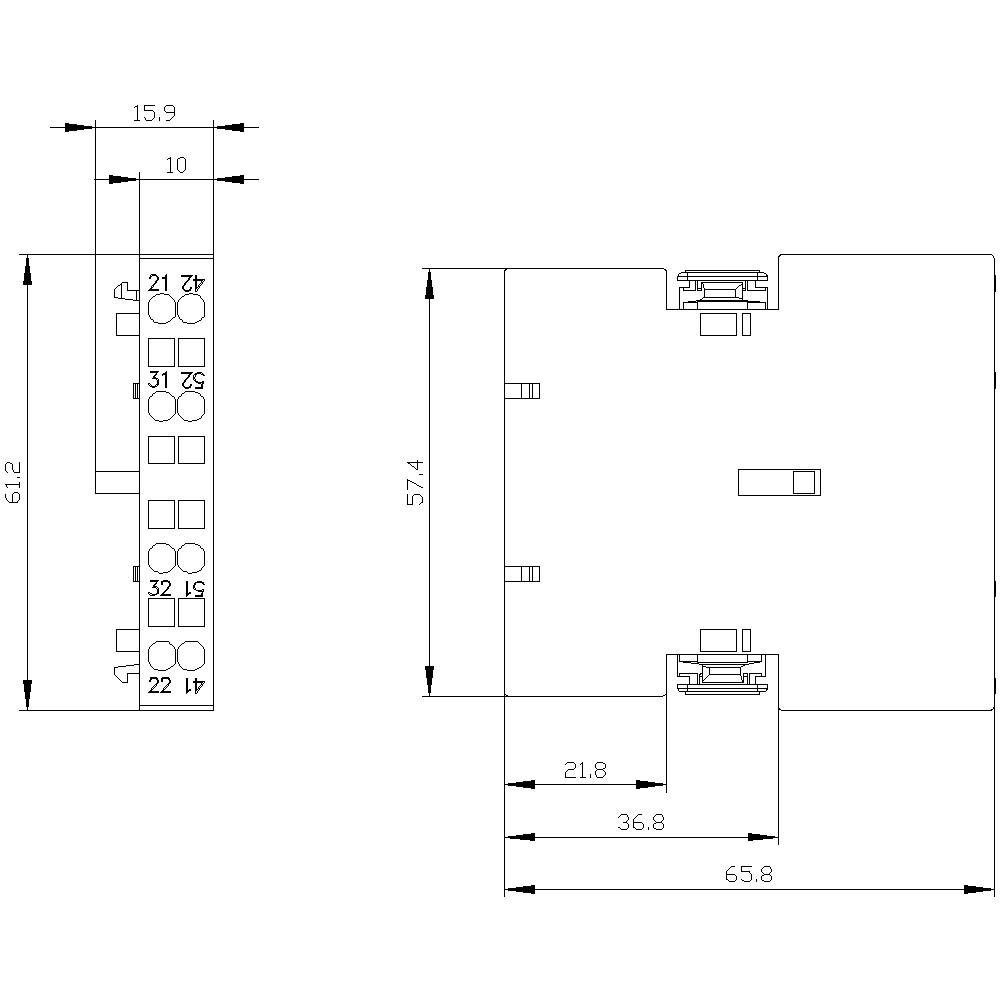

Technical drawing of an electrical component with dimensions: 15.9 x 61.2 mm; 57.4 mm high. Various electrical connections are visible.

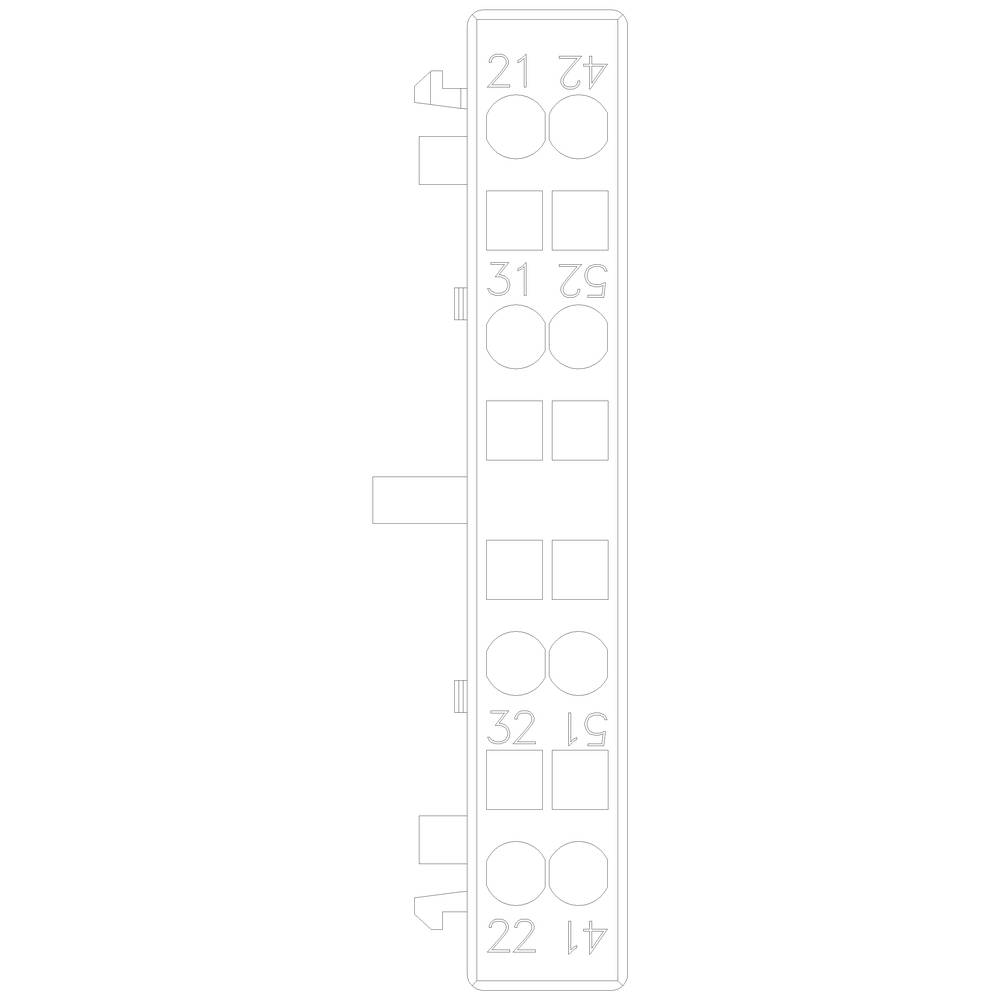

A technical diagram of a multi-socket extension lead with numbered sockets: 21, 22, 31, 32, 41, 42, 51, 52.

1/6

Image similar

Product type

Auxiliary switch

Type

3RH2911-2DA02

Type

S00

Control voltage range

Mounting type

Snap-in

Datasheet (PDF)

Deutsch (Deutschland)

Siemens

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 18.48 / piece)

€

Report legal concerns

Technical specifications

Product type: Auxiliary switch

Type: 3RH2911-2DA02

Type: S00

Control voltage range

Mounting type: Snap-in

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 10 mm

Height: 64.8 mm

Depth: 66 mm

Dim: (W x H x D) 10 x 64.8 x 66 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: Other

: Top mounting

: None

: 6 A

: Spring clamp connection

: 0

: 2

: 0

: 0

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 1699245 Siemens 3RH2911-2DA02 Auxiliary switch 1 pc(s)

Datasheet 1699245 Siemens 3RH2911-2DA02 Auxiliary switch 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1699245 Siemens 3RH2911-2DA02 Auxiliary switch 1 pc(s)

Description

Auxiliary switch on the front, 3 NO + 1 NC Current path 1 NO, 1 NC, 1 NO, 1 NO for contactor relays Size S00 spring-type terminal 53/54, 63/64, 73/74, 83/84 Physically coded only with contactor relays 3RH2140* and 3RH2440* can be combined (according to EN 50011)

Hints

Please note that the product is a custom-made and therefore exempt from the returns policy. Special order, no right of withdrawal.
