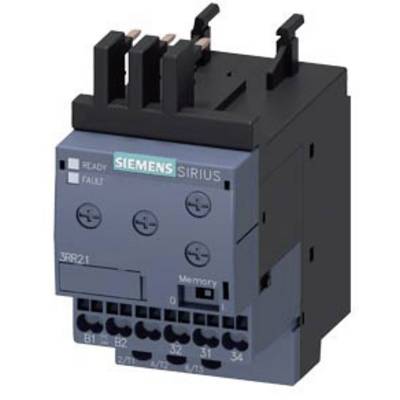

Siemens 3RR2141-2AW30 3RR21412AW30 Monitoring relay
EAN:
Part number:
Item no:
Product type
Monitoring relay
Operating voltage
240 V
Type
3RR2141-2AW30

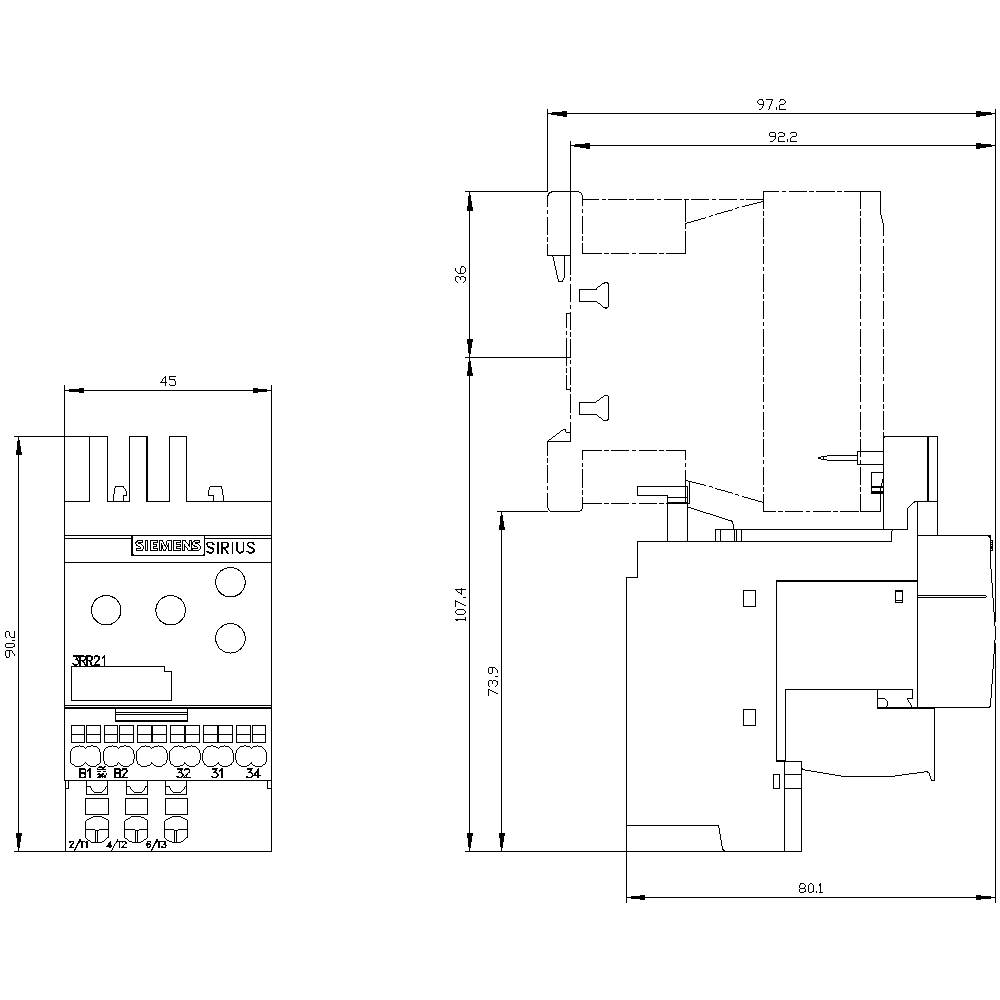

Dim
(L x W x H) 80 x 45 x 90 mm
Weight
180 g
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 126.04 / piece)
€
Technical specifications
- Mounting type: direct mounting
- Design of the electrical connection: Spring-loaded connection
- Type
3RR2141-2AW30
- Product type
Monitoring relay
- Operating voltage
240 V
- Dim
(L x W x H) 80 x 45 x 90 mm
- Weight
180 g
- Width
45 mm
- Height
90 mm
- Length
80 mm
45
90 mm
80 mm
FALSE
TRUE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
Spring clamp connection
60 s
0 s
30 s
0 s
AC/DC
Documents & Downloads
Datasheet
Datasheet 1704292 Siemens 3RR2141-2AW30 3RR21412AW30 Monitoring relay
User & Safety Instructions
User & Safety Instructions 1704292 Siemens 3RR2141-2AW30 3RR21412AW30 Monitoring relay
Description
power contactor, AC-3 12 A, 5.5 kW / 400 V 1 NC, 24 V DC 3-pole, Size S00 Spring-type terminal
