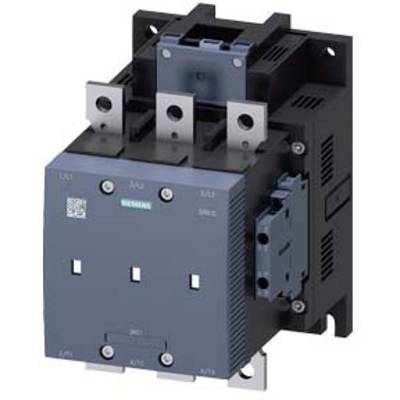

Siemens 3RT1266-6NF36 Vacuum contactor 3 makers 1000 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Vacuum contactor
No. of pins
3-pin
Nominal voltage
1000 V AC
Connection
Terminal strip
Type
3RT1266-6NF36
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 2,046.22 / piece)
€
Technical specifications
- Type of voltage, AC/DC
- Conductor cross-section single or multi-strand: 240 mm²
- Product type
Vacuum contactor
- Type
3RT1266-6NF36
- Type
S10
- No. of pins
3-pin
- Contact type
3 makers
- Nominal voltage
1000 V AC
- Mounting type
Screw-fit
- Connection
Terminal strip
- Durability
1000 0000
IP00
- Min. temperature
-25 °C
- Max. temperature
+60 °C

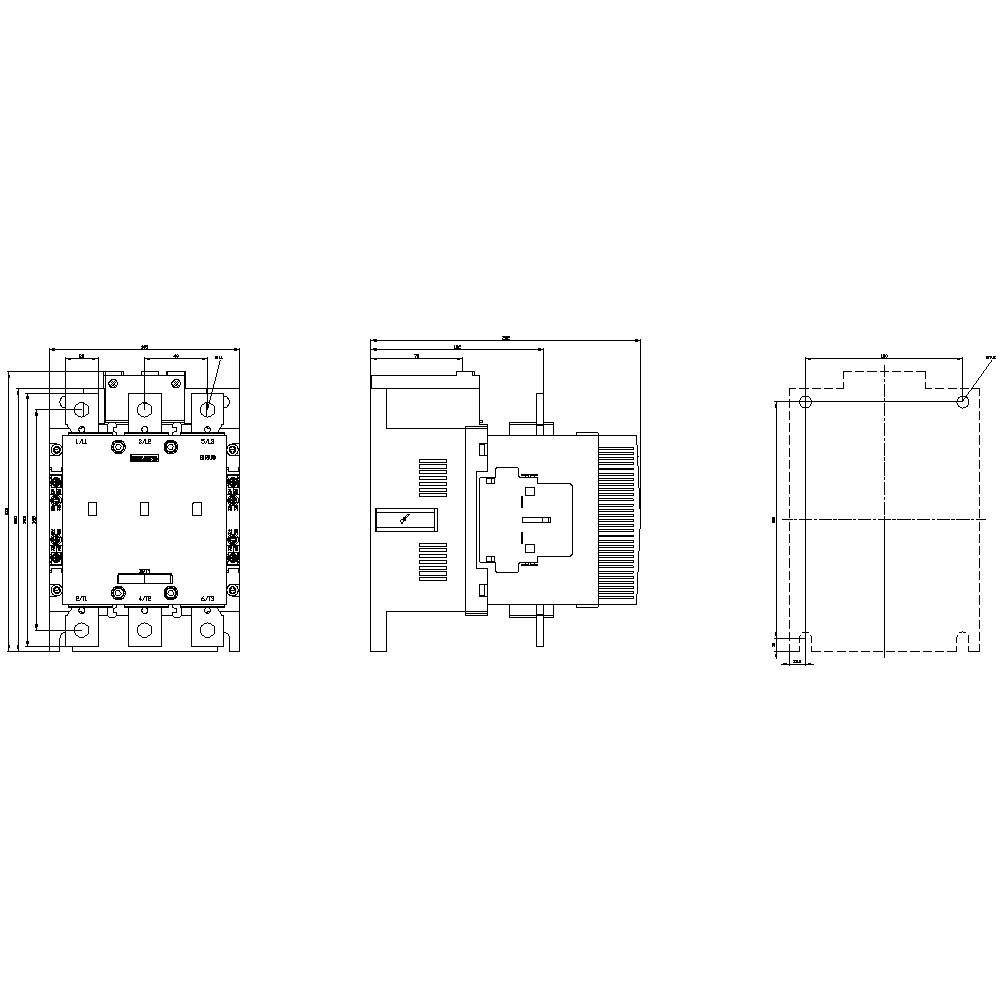

- Width
145 mm
- Height
210 mm
- Depth
206 mm
- Dim
(W x H x D) 145 x 210 x 206 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
TRUE
160 kW
3
2
2
300 A
330 A
Rail connection
AC/DC
280 A
160 kW
183.8746875
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1704323 Siemens 3RT1266-6NF36 Vacuum contactor 3 makers 1000 V AC 1 pc(s)
Datasheet 1704323 Siemens 3RT1266-6NF36 Vacuum contactor 3 makers 1000 V AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1704323 Siemens 3RT1266-6NF36 Vacuum contactor 3 makers 1000 V AC 1 pc(s)
Description
Vacuum contactor, AC-3 400 A, 200 kW / 400 V without coil Auxiliary contacts 2 NO + 2 NC 3-pole, Size S12 Main conductor: Busbar connections Auxiliary conductor:screw terminals
