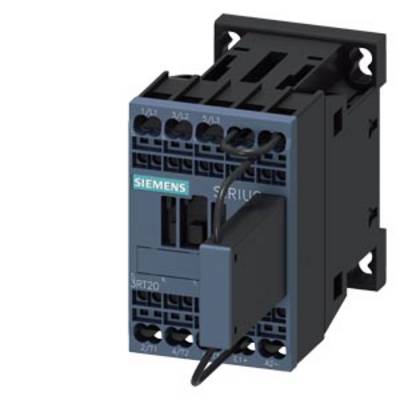

Siemens 3RT2018-2KG42-0LA0 Conductor 3 makers 690 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Conductor
No. of pins
3-pin
Nominal voltage
690 V AC
Type
3RT2018-2KG42-0LA0
Type
S00
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 130.24 / piece)
€
Technical specifications
- Conductor cross-section single or multi-wire: 4 mm²
- Conductor cross-section for fine-wire: 2.5 mm²
- Product type
Conductor
- Type
3RT2018-2KG42-0LA0
- Type
S00
- No. of pins
3-pin
- Contact type
3 makers
- Auxiliary contact type
1 breaker
- Nominal voltage
690 V AC
- Mounting type
Snap-in
Screw-fit
- Durability
3000 0000
- Width
45 mm
- Height
70 mm
- Dim
(W x H) 45 mm x 70 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
7.5 kW
3
16 A
22 A
125-125 V
Spring clamp connection
DC
11.5 A
5.5 kW
7.3549875
Documents & Downloads
Datasheet
Datasheet 1685674 Siemens 3RT2018-2KG42-0LA0 Conductor 3 makers 690 V AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1685674 Siemens 3RT2018-2KG42-0LA0 Conductor 3 makers 690 V AC 1 pc(s)
Description
Power contactor, AC-3 9 A, 4 kW / 400 V 1 NO, 125 V DC, 3-pole, Size S00 Spring-type terminal
