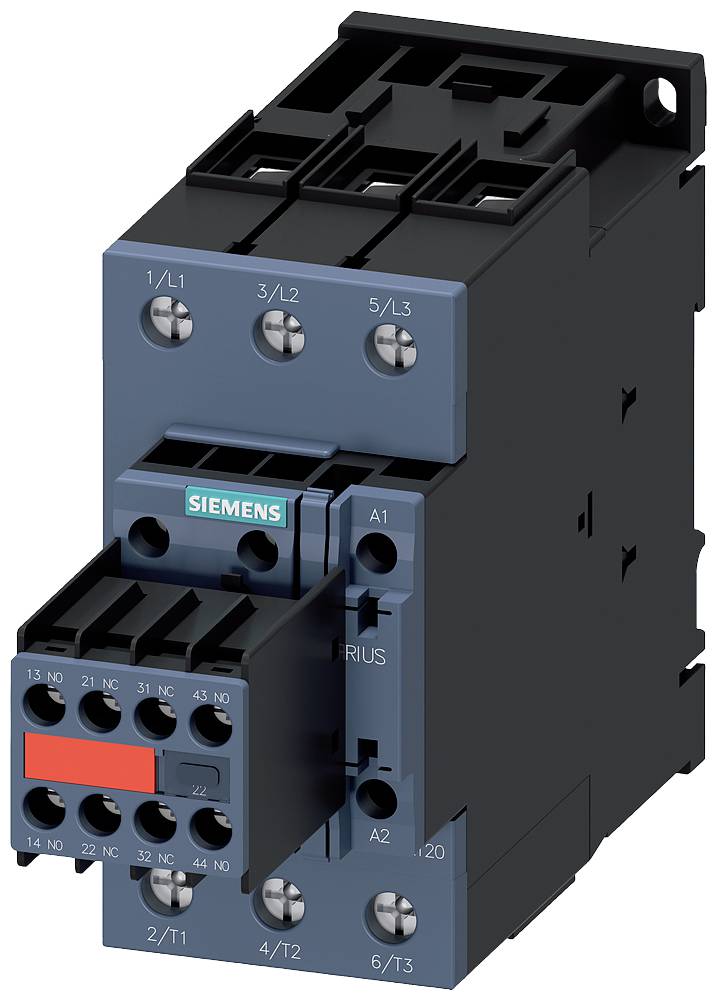

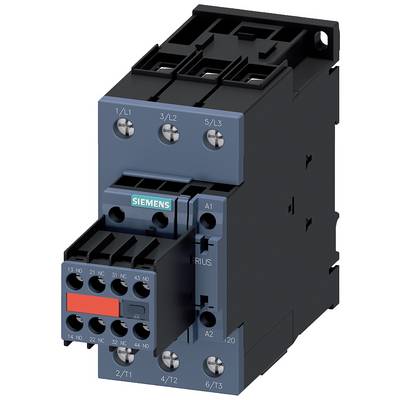

Siemens 3RT2036-1AP04-3MA0 Electrical contactor 3 makers 690 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
3-pin
Nominal voltage
690 V AC
Connection
Screws
Type
3RT2036-1AP04-3MA0
Datasheet (PDF)
Number
Total (€ 239.50 / piece)
€
Technical specifications
- Type of voltage: AC
- Conductor cross-section single or multi-strand: 50 mm²
- Conductor cross-section for finely-stranded: 35mm²
- Product type
Electrical contactor
- Type
3RT2036-1AP04-3MA0
- Type
S2
- No. of pins
3-pin
- Contact type
3 makers
- Nominal voltage
690 V AC
- Mounting type
Snap-in
Screw-fit
- Connection
Screws
- Durability
1000 0000
IP20
- Min. temperature
-25 °C
- Max. temperature
+60 °C
- Width
55 mm
- Height
114 mm
- Depth
174 mm
- Dim

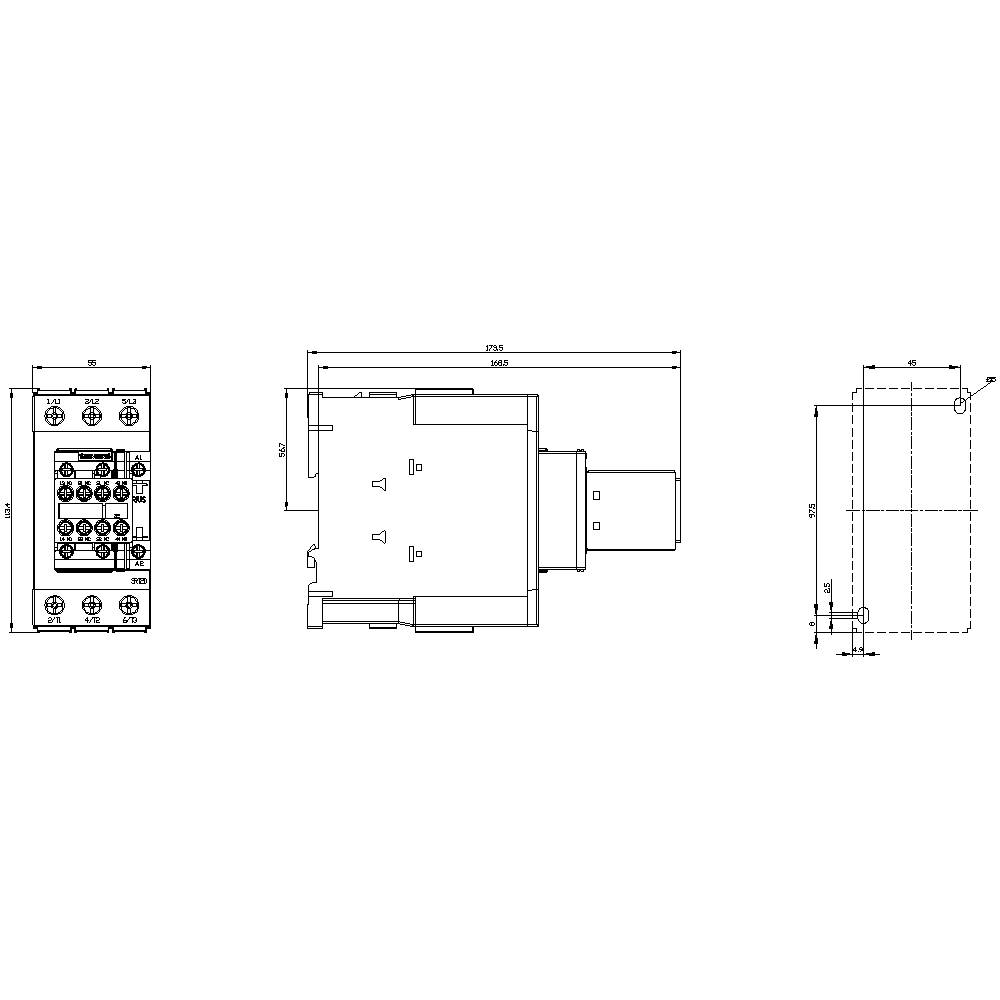

(W x H x D) 55 x 114 x 174 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
TRUE
22 kW
3
2
2
51 A
70 A
Screw connection
AC
41 A
29.41995
Documents & Downloads
Datasheet
Datasheet 1738186 Siemens 3RT2036-1AP04-3MA0 Electrical contactor 3 makers 690 V AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1738186 Siemens 3RT2036-1AP04-3MA0 Electrical contactor 3 makers 690 V AC 1 pc(s)
Description

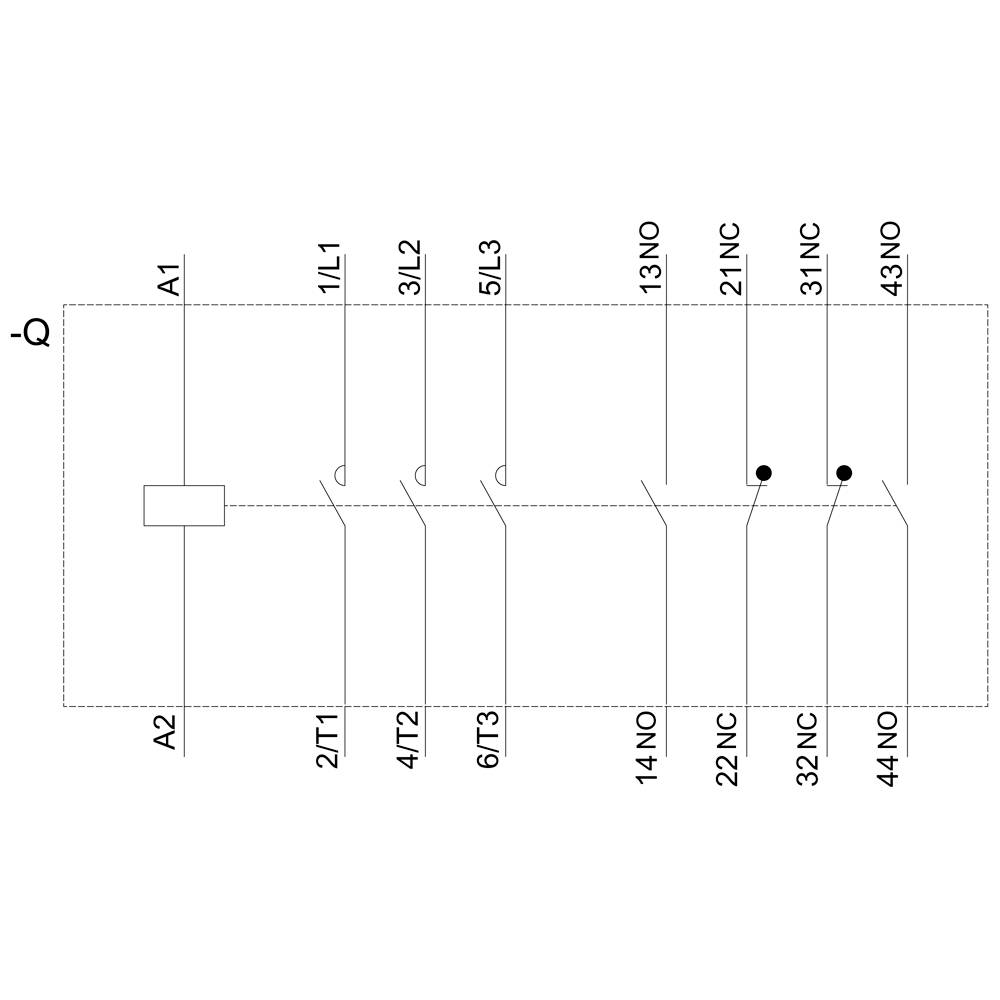

power contactor, AC-3 50 A, 22 kW / 400 V 2 NO + 2 NC, 230 V AC, 50 Hz, 3-pole, Size S2, screw terminal, Captive auxiliary switch
