Siemens 3RT2936-1CE00 Surge protection 400 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Surge protection
Nominal voltage
400 V AC
Type
3RT2936-1CE00
Type
S2
Mounting type
Push-fit
Datasheet (PDF)
2 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 22.68
3
4% = € 0.98
€ 21.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 22.68 / piece)
€
Only 2 Piece(s) available
Technical specifications
- Type of voltage: AC
- Product type
Surge protection
- Type
3RT2936-1CE00
- Type
S2
- Nominal voltage
400 V AC
- Mounting type
Push-fit
- Min. temperature
-25 °C
- Max. temperature
+60 °C

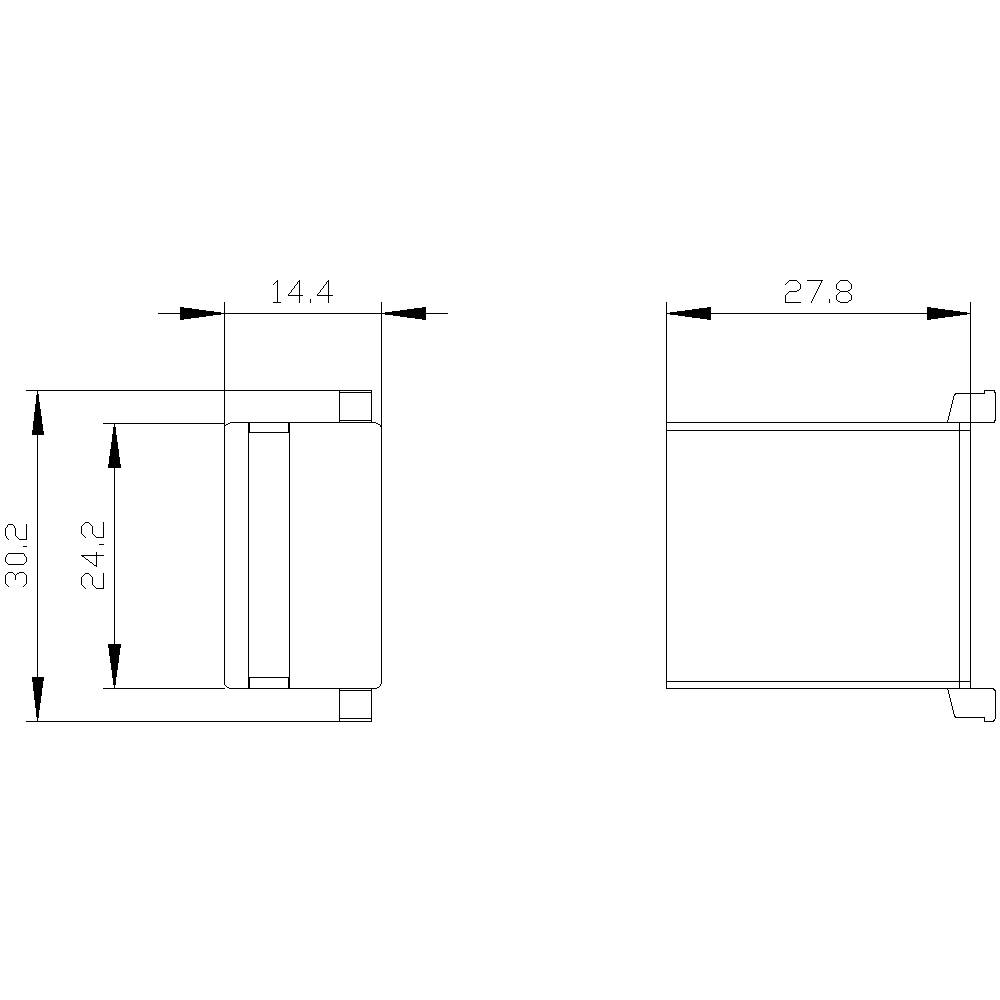

- Width
30 mm
- Height
30 mm
- Depth
14.5 mm
- Dim
(W x H x D) 30 x 30 x 14.5 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
AC
Documents & Downloads
Datasheet
Datasheet 1706003 Siemens 3RT2936-1CE00 Surge protection 400 V AC 1 pc(s)
Datasheet 1706003 Siemens 3RT2936-1CE00 Surge protection 400 V AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1706003 Siemens 3RT2936-1CE00 Surge protection 400 V AC 1 pc(s)
Description

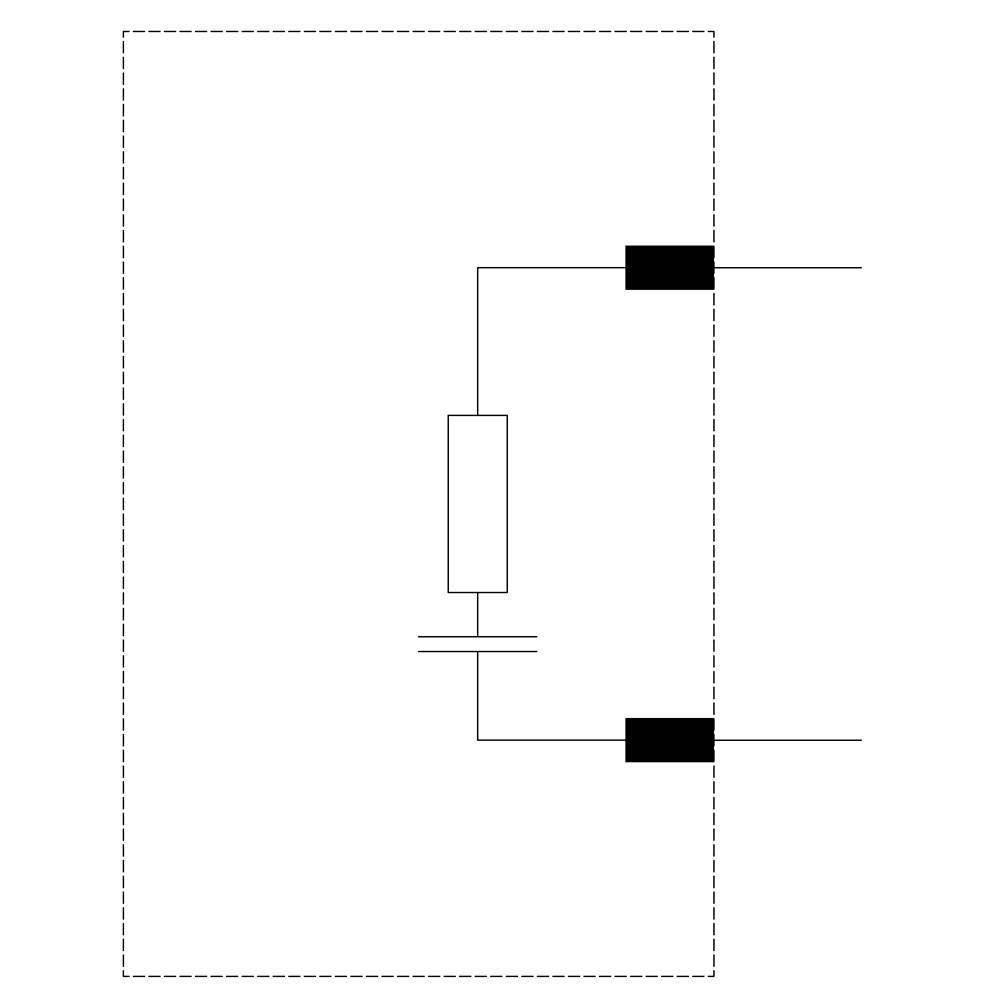

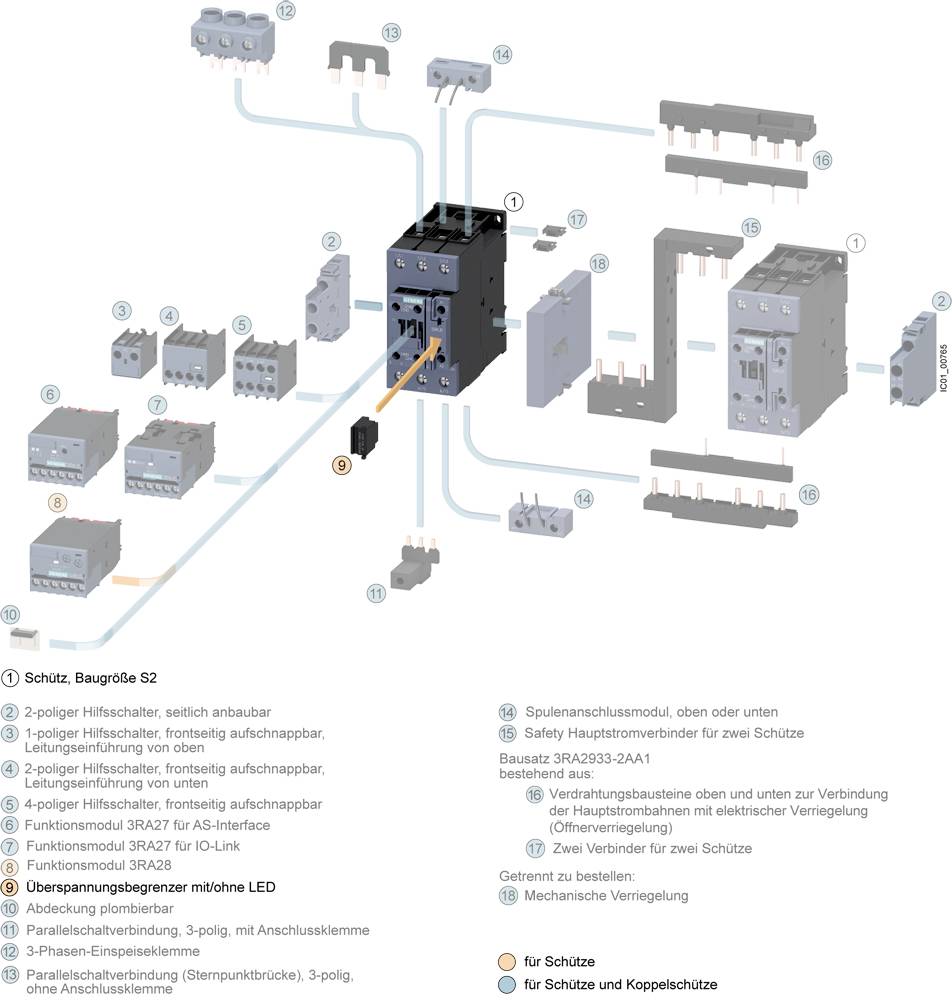

Surge suppressor, RC snubber, AC 240... 400 V, for contactors Size S2 simply, efficiently, always up-to-date-the SIRIUS modular system.
