Buy Siemens 3RV2011-0DA20 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.22 - 0.32 A Switching voltage (max.): 690 V

An electrical switch from the Siemens Sirius series in a dark grey housing with a switching button in the centre, surrounded by connection terminals.

Image similar

An open electrical cabinet with electronic components, beside a window with raindrops, offering a view of machinery in the background.

Diagram shows accessories for circuit breakers: cross-connections, auxiliary switches, signalling contacts, and terminal blocks with labels.

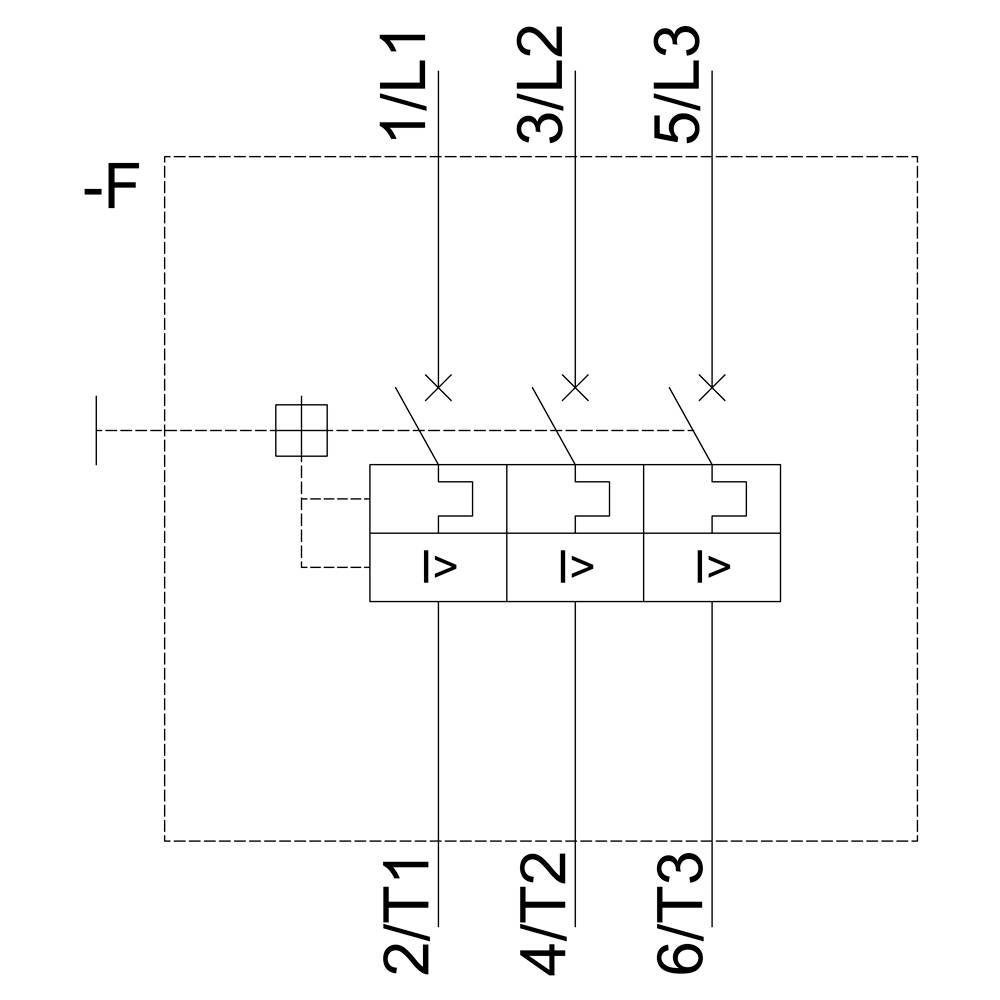

Circuit diagram of a three-phase motor contactor. It shows the connections 1/L1, 3/L2, 5/L3 at the top and the outputs 2/T1, 4/T2, 6/T3 at the bottom.

Technical drawing of an electrical switch with side and front view. Dimensions: 45 mm width, 90.3 mm height, 96.9 mm depth.

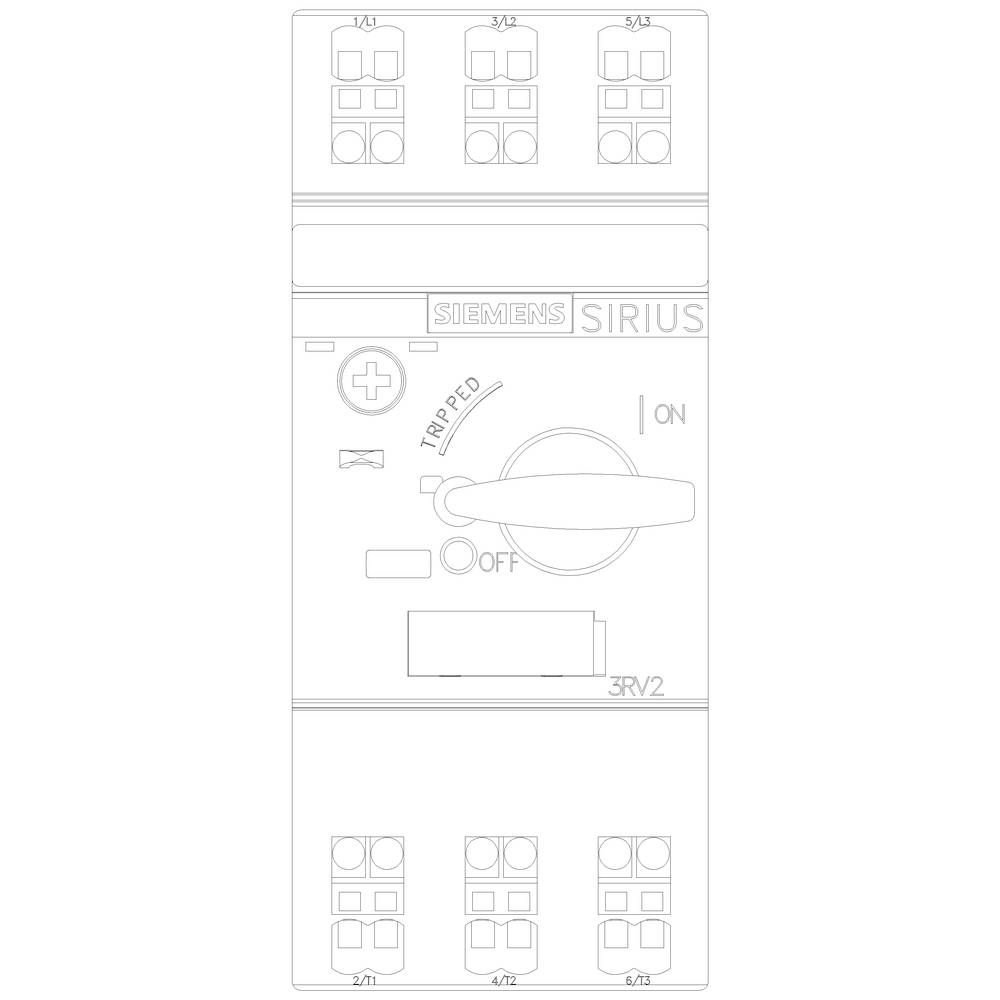

'Siemens Sirius switch, shows Off, On and Tripped positions, with control lever in the centre and plug connections at the top and bottom.'

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

0.32 A

Connection

Spring-loaded connector

Type

3RV2011-0DA20

Type

S00

Datasheet (PDF)

Show alternatives

Sales and shipping:

Number

Piece(s)

Total (€ 73.94 / piece)

€

Report legal concerns

Technical specifications

Continuous current: 0.32 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 4 mm²
Max. Conductor cross-section (fine): 2.5 mm²

Product type: Circuit breaker

Type: 3RV2011-0DA20

Type: S00

Amperage adjustment range (min.): 0.22 A

Amperage adjustment range (max.): 0.32 A

Adjustment range (amperage): 0.22 - 0.32 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Connection: Spring-loaded connector

: IP20

Depth: 97 mm

Width: 45 mm

Height: 106 mm

Dim: (W x H x D) 45 x 106 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 45

: 106 mm

: 97 mm

: 0.09 kW

: FALSE

: 0.32 A

: FALSE

: 3

: 690-690 V

: 0.22-0.32 A

: IP20

: TRUE

: Spring clamp connection

: Turn button

: Magnetic

: 0 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Amperage adjustment range (max.)

Amperage adjustment range (min.)

Siemens 3RV1011-0JA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.7 - 1 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1702444

1 A

0.7 A

Siemens 3RV1011-0AA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745448

0.16 A

0.11 A

Siemens 3RV1011-0AA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745449

0.16 A

0.11 A

Siemens 3RV1011-0BA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.14 - 0.2 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745450

0.2 A

0.14 A

Siemens 3RV1011-0BA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.14 - 0.2 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745452

0.2 A

0.14 A

Siemens 3RV1011-0CA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.18 - 0.25 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745453

0.25 A

0.18 A

Siemens 3RV1011-0DA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.22 - 0.32 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745454

0.32 A

0.22 A

Siemens 3RV1011-0EA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.28 - 0.4 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745455

0.4 A

0.28 A

Siemens 3RV1011-0FA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.35 - 0.5 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745456

0.5 A

0.35 A

Siemens 3RV1011-0GA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.45 - 0.63 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745457

0.63 A

0.45 A

Documents & Downloads

Datasheet

Datasheet 1740349 Siemens 3RV2011-0DA20 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.22 - 0.32 A Switching voltage (max.): 690 V

User & Safety Instructions

User & Safety Instructions 1740349 Siemens 3RV2011-0DA20 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.22 - 0.32 A Switching voltage (max.): 690 V

Description

Circuit breaker size S00 for motor protection, CLASS 10 A-release 0.22...0.32 A N-release 4.2 A Spring-type terminal Standard switching capacity
