Buy Siemens 3RV2011-4AA25 Circuit breaker 1 pc(s) Adjustment range (amperage): 10 - 16 A Switching voltage (max.): 690 V AC

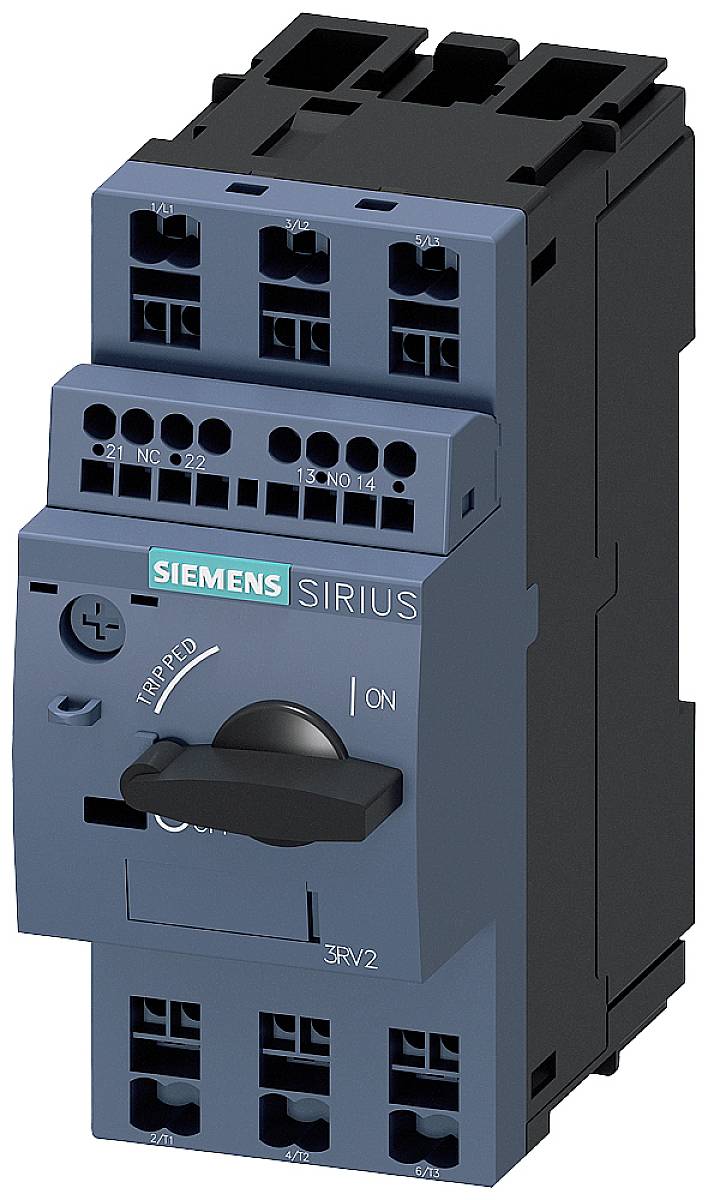

A blue Siemens SIRIUS switch for electrical control systems, with position indicators for 'TRIPPED' and 'ON'.

Image similar

An open electrical cabinet reveals cables and electronic components. To the right, rain falls past a glass window, behind which machines are visible.

'Mountable Accessories' Diagram: Shows various switch and button types with connections and labelling for electrical installations.

'Circuit diagram with three single-pole fuses, labelled as 1/L1, 3/L2, 5/L3, connected to 2/T1, 4/T2, 6/T3. Two contacts on the right: 13, 14 and 21, 22.'

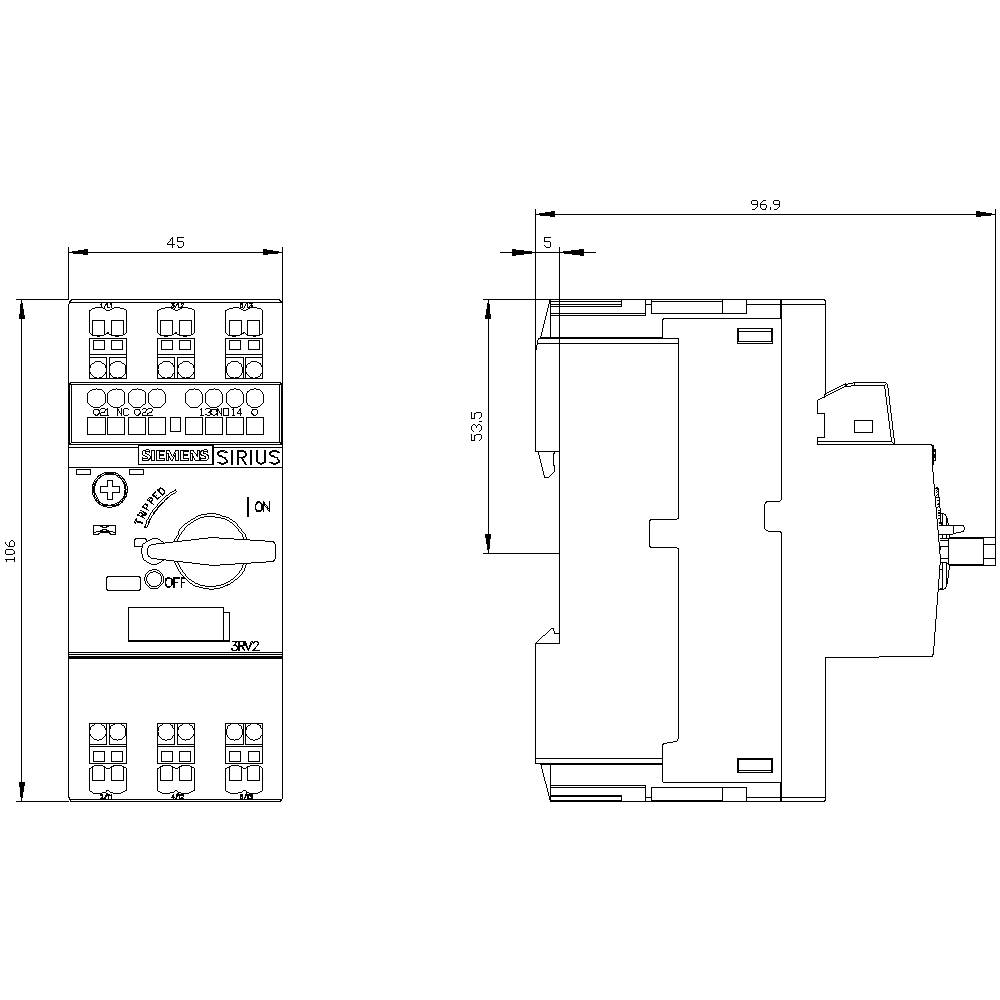

Electrical switchgear diagram with dimensions; width: 45 mm, depth: 95.6 mm, height: 106 mm; main components and circuits illustrated.

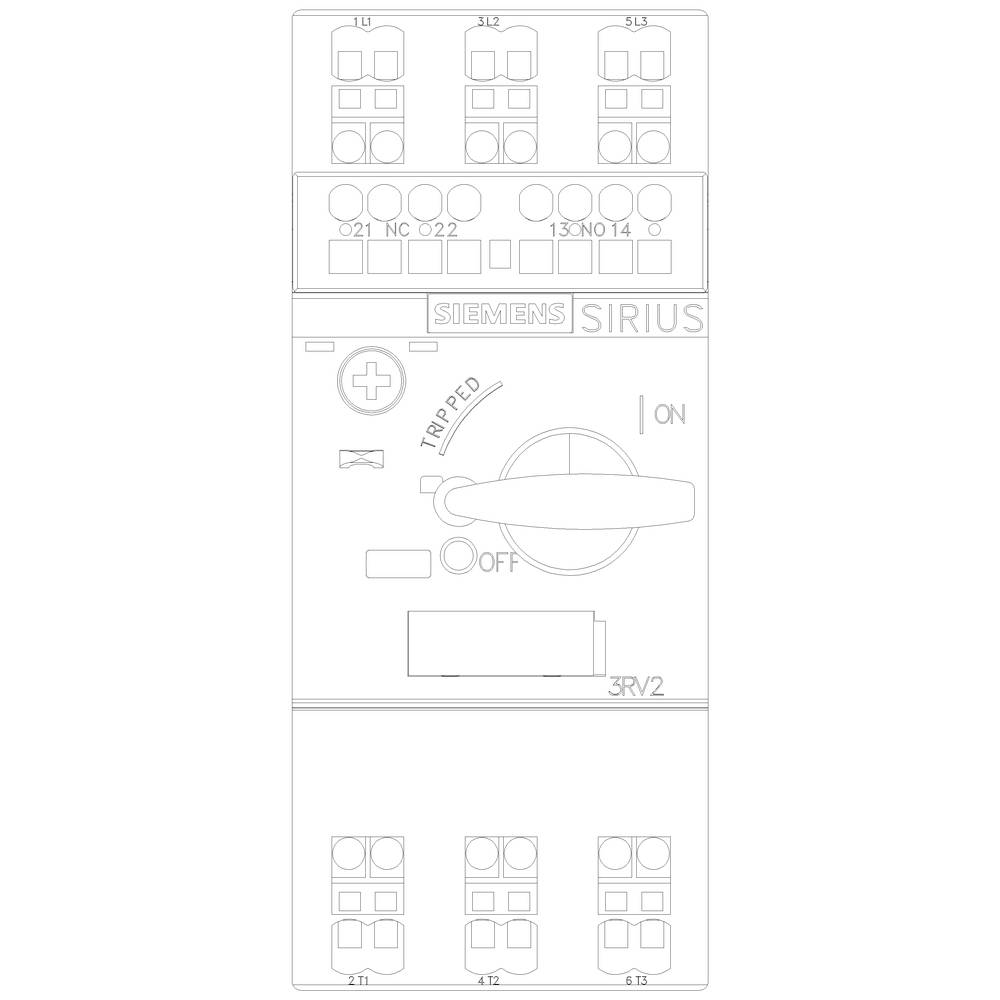

'Diagram of a Siemens SIRIUS contactor with technical connection terminals, switch positions for On/Off and tipped indication.'

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

16 A

Connection

Spring-loaded connector

Type

3RV2011-4AA25

Type

S00

Datasheet (PDF)

2 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 113.44 / piece)

€

Only 2 Piece(s) available

Report legal concerns

Technical specifications

Continuous current: 16 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 4 mm²
Max. Conductor cross-section (fine): 2.5 mm²

Product type: Circuit breaker

Type: 3RV2011-4AA25

Type: S00

Amperage adjustment range (min.): 10 A

Amperage adjustment range (max.): 16 A

Adjustment range (amperage): 10 - 16 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Connection: Spring-loaded connector

: IP20

Depth: 97 mm

Width: 45 mm

Height: 106 mm

Dim: (W x H x D) 45 x 106 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 45

: 106 mm

: 97 mm

: 7.5 kW

: TRUE

: 16 A

: FALSE

: 3

: 690-690 V

: 10-16 A

: IP20

: TRUE

: Spring clamp connection

: Turn button

: Magnetic

: 4 kW

: 55 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: yes
