Buy Siemens 3RV2111-1JA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 7 - 10 A Switching voltage (max.): 690 V AC (

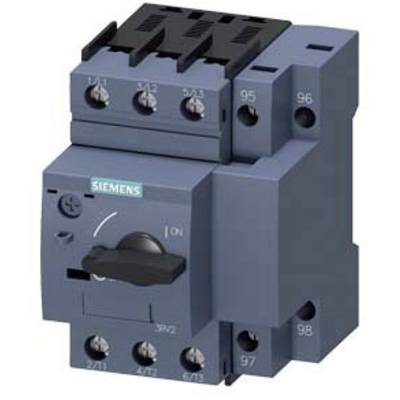

A blue Siemens electrical switch/contactor with multiple connections. The main view shows the on/off switch at the front.

Image similar

A control cabinet with open doors reveals cables and circuits beside a rain-streaked window, which shows a blurred industrial machine.

'Diagram shows mounting accessories for circuit breakers with labels: Transverse, lateral auxiliary switch, signalling contacts, disconnector bastion, terminal blocks.'

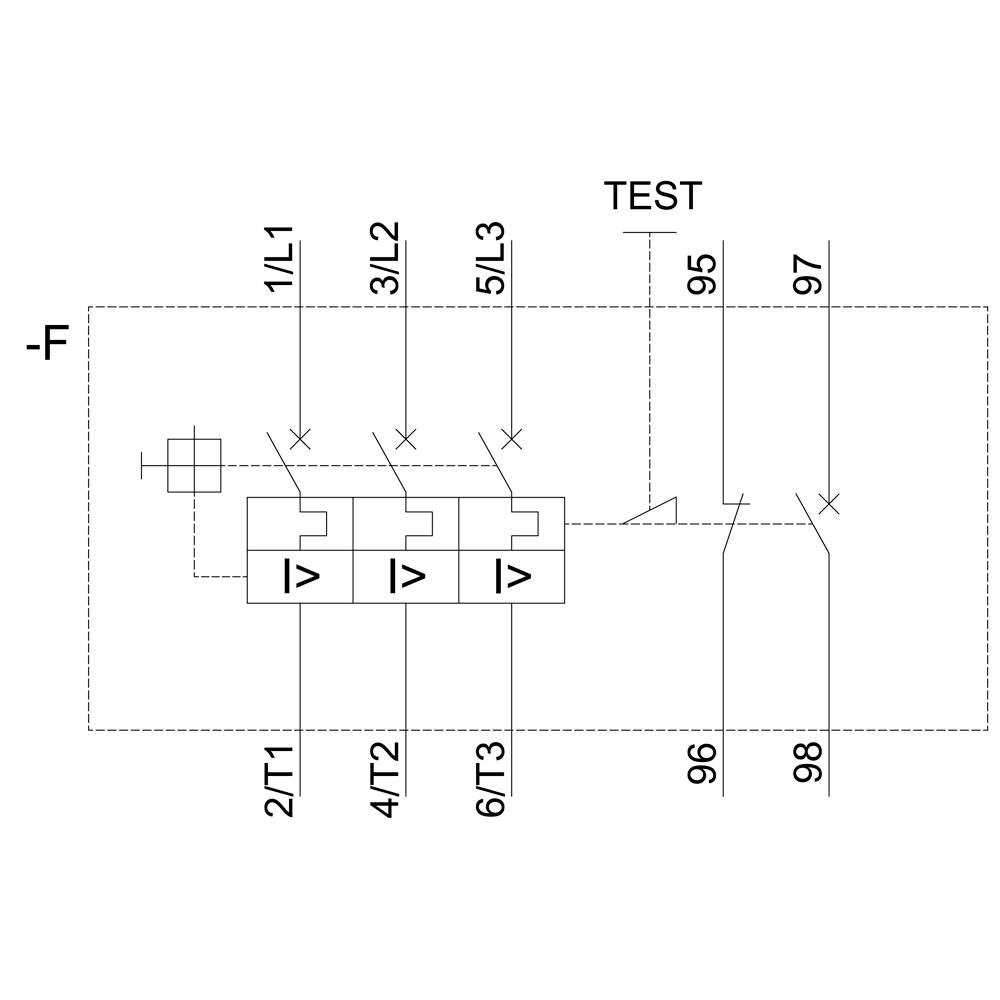

Electrical circuit diagram of a three-phase device with the labels: 1L1, 3L2, 5L3, 2/T1, 4/T2, 6/T3, TEST.

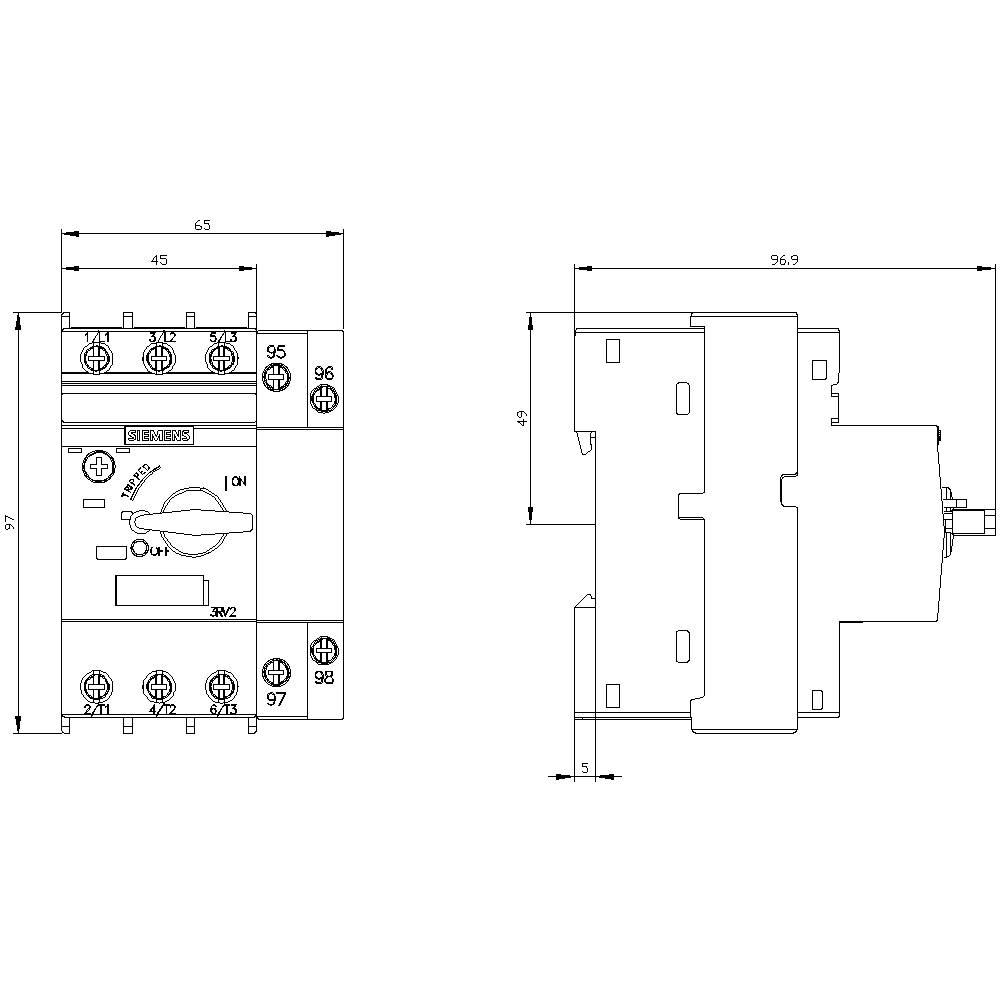

'Technical drawing of a device switch with dimensions, top view and side view; main switch and connection terminals shown.'

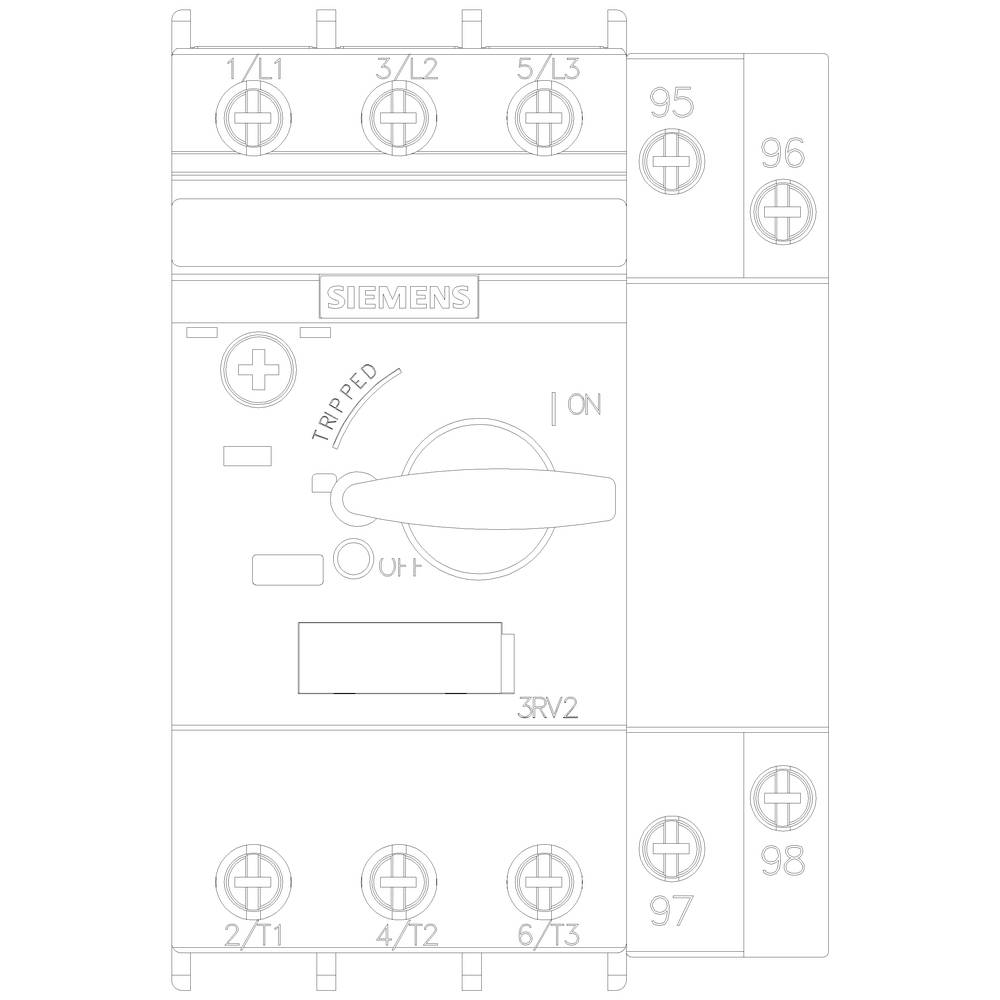

'Switch with rotary knob for on/off function. Markings for handling and identification. Multiple connection points at the top and bottom.'

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

10 A

Connection

Screws

Type

3RV2111-1JA10

Type

S00

Datasheet (PDF)

Show alternatives

Sales and shipping:

Number

Piece(s)

Total (€ 130.24 / piece)

€

Report legal concerns

Technical specifications

Continuous current: 10 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 4 mm²
Max. Conductor cross-section (fine): 2.5 mm²

Product type: Circuit breaker

Type: 3RV2111-1JA10

Type: S00

Amperage adjustment range (min.): 7 A

Amperage adjustment range (max.): 10 A

Adjustment range (amperage): 7 - 10 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Connection: Screws

: IP20

Depth: 97 mm

Width: 65 mm

Height: 97 mm

Dim: (W x H x D) 65 x 97 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 65

: 97 mm

: 97 mm

: 4 kW

: TRUE

: 10 A

: FALSE

: 3

: 690-690 V

: 7-10 A

: IP20

: TRUE

: Screw connection

: Turn button

: Magnetic

: 2.2 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

Variants(All information is without VAT, plus shipping costs)

Amperage adjustment range (max.)

Amperage adjustment range (min.)

Siemens 3RV1011-0JA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.7 - 1 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1702444

1 A

0.7 A

Siemens 3RV1011-0AA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745448

0.16 A

0.11 A

Siemens 3RV1011-0AA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745449

0.16 A

0.11 A

Siemens 3RV1011-0BA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.14 - 0.2 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745450

0.2 A

0.14 A

Siemens 3RV1011-0BA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.14 - 0.2 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745452

0.2 A

0.14 A

Siemens 3RV1011-0CA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.18 - 0.25 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745453

0.25 A

0.18 A

Siemens 3RV1011-0DA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.22 - 0.32 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745454

0.32 A

0.22 A

Siemens 3RV1011-0EA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.28 - 0.4 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745455

0.4 A

0.28 A

Siemens 3RV1011-0FA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.35 - 0.5 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745456

0.5 A

0.35 A

Siemens 3RV1011-0GA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.45 - 0.63 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745457

0.63 A

0.45 A

Documents & Downloads

Datasheet

Datasheet 1699605 Siemens 3RV2111-1JA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 7 - 10 A Switching voltage (max.): 690 V AC (

User & Safety Instructions

User & Safety Instructions 1699605 Siemens 3RV2111-1JA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 7 - 10 A Switching voltage (max.): 690 V AC (

Description

Power contactor, AC-3 12 A, 5.5 kW / 400 V 2 NO + 2 NC 48 V DC 4-pole Size S00 Spring-type terminals integrated diode
