Buy Siemens 3RV2411-0KA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.9 - 1.25 A Switching voltage (max.): 690 V

A grey Siemens circuit breaker with a black rotary knob on the front, featuring multiple screw terminals on the top.

Image similar

An open electrical cabinet reveals complex electronic components. In the background, a wet window pane with raindrops can be seen.

'Mountable Accessories' diagram shows various switches (Transverse Auxiliary Switch, Signalling Switch, etc.) and their connections.

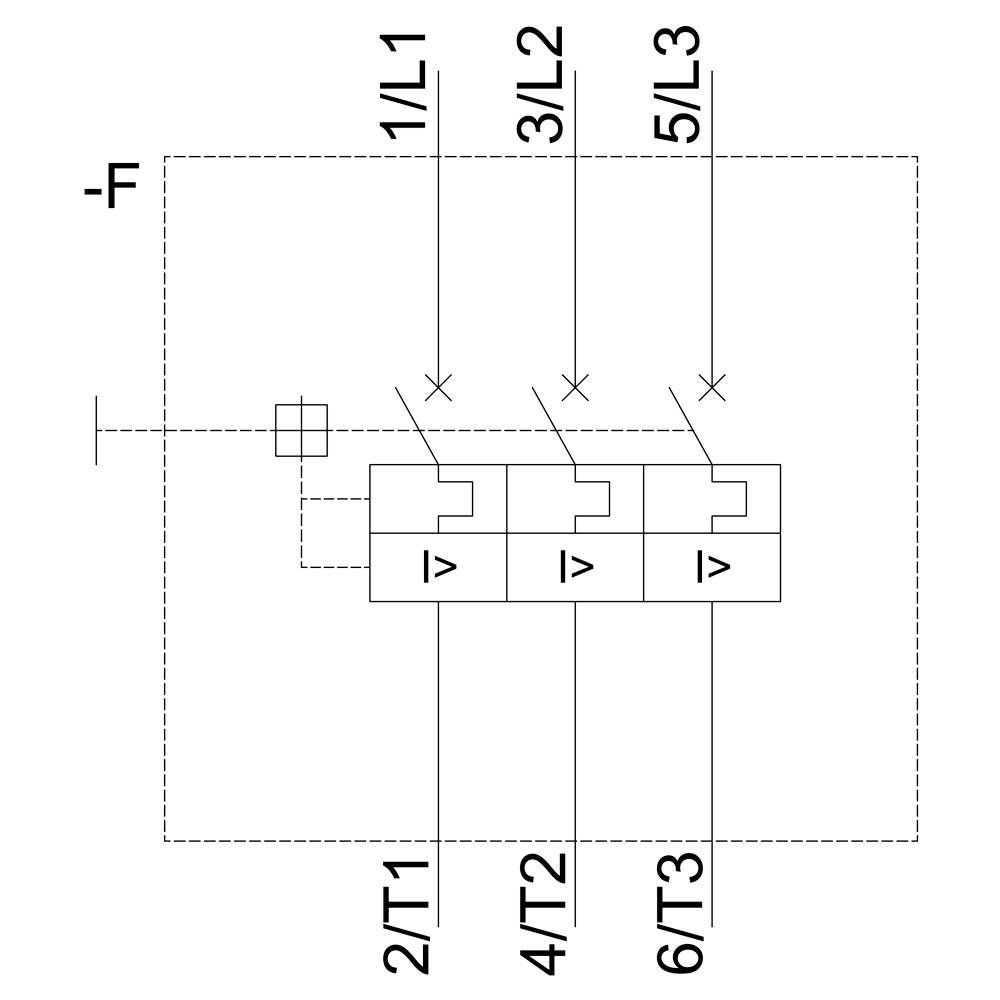

Circuit diagram of a three-pole power circuit breaker with connections L1, L2, L3 at the top and T1, T2, T3 at the bottom, within a dashed frame.

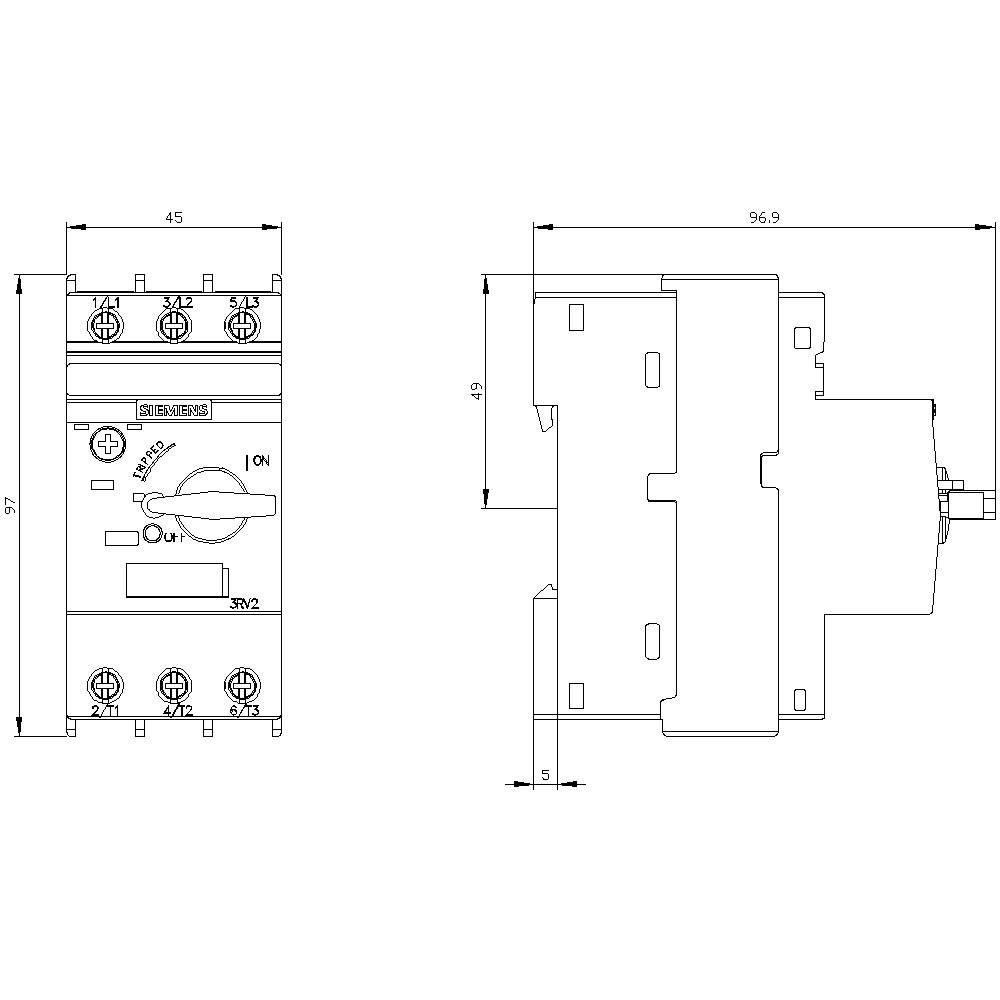

Technical drawing of an electronic switch with dimensions: width 45 mm, depth 96.9 mm, height 97 mm. Top view and side view shown.

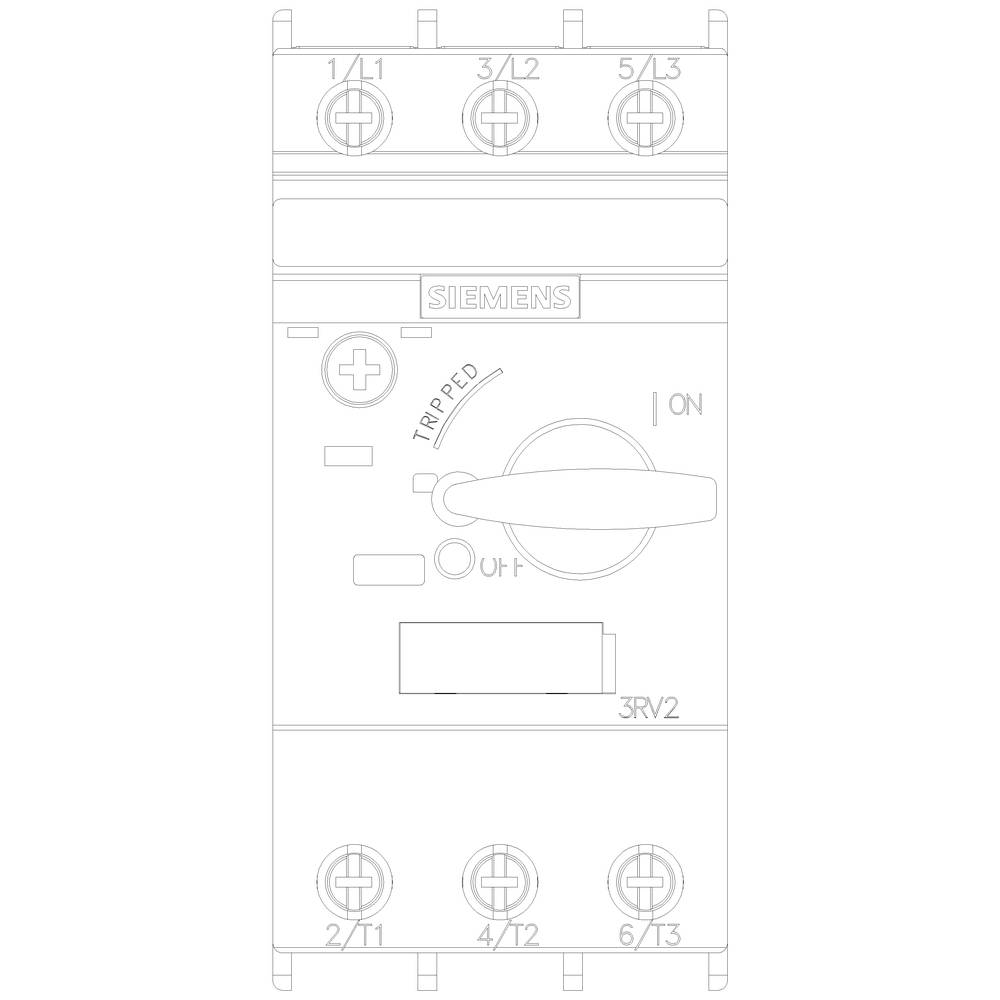

Siemens switching device, displaying position window with 'TRIPPED' indication. Upper and lower terminals, with numerical labelling.

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

1.25 A

Connection

Screws

Type

3RV2411-0KA10

Type

S00

Datasheet (PDF)

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 92.43 / piece)

€

Report legal concerns

Technical specifications

Design: for transformer protection
Weight: 0,345 kg
Design of the thread of the connection screw: M3
Mechanical life: 100000
Electrical life: 100000
Power loss: 6 W
Mains frequency: 50/60 Hz.

Product type: Circuit breaker

Type: 3RV2411-0KA10

Type: S00

Amperage adjustment range (min.): 0.9 A

Amperage adjustment range (max.): 1.25 A

Adjustment range (amperage): 0.9 - 1.25 A

Current load: 1.25 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: DIN rail

Min. temperature: -20 °C

Max. temperature: +60 °C

Connection: Screws

: IP20

Depth: 97 mm

Width: 45 mm

Height: 97 mm

Dim: (W x H x D) 45 x 97 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

Factory colour: Multicolour

: 0

: 0

: 1.25 A

: 3

: 0.9-1.25 A

: 0

: 20-690 V

: IP20

: Other

: FALSE

: Screw connection

: Toggle

: FALSE

: 100 kA

: TRUE

: FALSE

: FALSE

: Built-in device fixed built-in technique

Variants(All information is without VAT, plus shipping costs)

Amperage adjustment range (max.)

Amperage adjustment range (min.)

Siemens 3RV1011-0JA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.7 - 1 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1702444

1 A

0.7 A

Siemens 3RV1011-0AA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745448

0.16 A

0.11 A

Siemens 3RV1011-0AA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745449

0.16 A

0.11 A

Siemens 3RV1011-0BA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.14 - 0.2 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745450

0.2 A

0.14 A

Siemens 3RV1011-0BA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.14 - 0.2 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745452

0.2 A

0.14 A

Siemens 3RV1011-0CA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.18 - 0.25 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745453

0.25 A

0.18 A

Siemens 3RV1011-0DA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.22 - 0.32 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745454

0.32 A

0.22 A

Siemens 3RV1011-0EA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.28 - 0.4 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745455

0.4 A

0.28 A

Siemens 3RV1011-0FA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.35 - 0.5 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745456

0.5 A

0.35 A

Siemens 3RV1011-0GA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.45 - 0.63 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745457

0.63 A

0.45 A

Documents & Downloads

Datasheet

Datasheet 1740421 Siemens 3RV2411-0KA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.9 - 1.25 A Switching voltage (max.): 690 V

User & Safety Instructions

User & Safety Instructions 1740421 Siemens 3RV2411-0KA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.9 - 1.25 A Switching voltage (max.): 690 V

Description

Circuit breaker size S2 for starter combination Rated current 20 A N-release 260 A screw terminal increased switching capacity
