Buy Siemens 3RV2411-1GA20 Circuit breaker 1 pc(s) Adjustment range (amperage): 4.5 - 6.3 A Switching voltage (max.): 690 V A

A grey-blue Siemens SIRIUS switch with a rotary knob, marked with 'O' and 'I', used for controlling electrical equipment.

Image similar

Industrial plant with damp windows in the foreground, with the open control panel on the right displaying complex wiring and control devices.

'Diagram shows accessories for circuit breakers: Transverse and lateral auxiliary switches, voltage drop unit, indication switch, isolating block, terminal block type.'

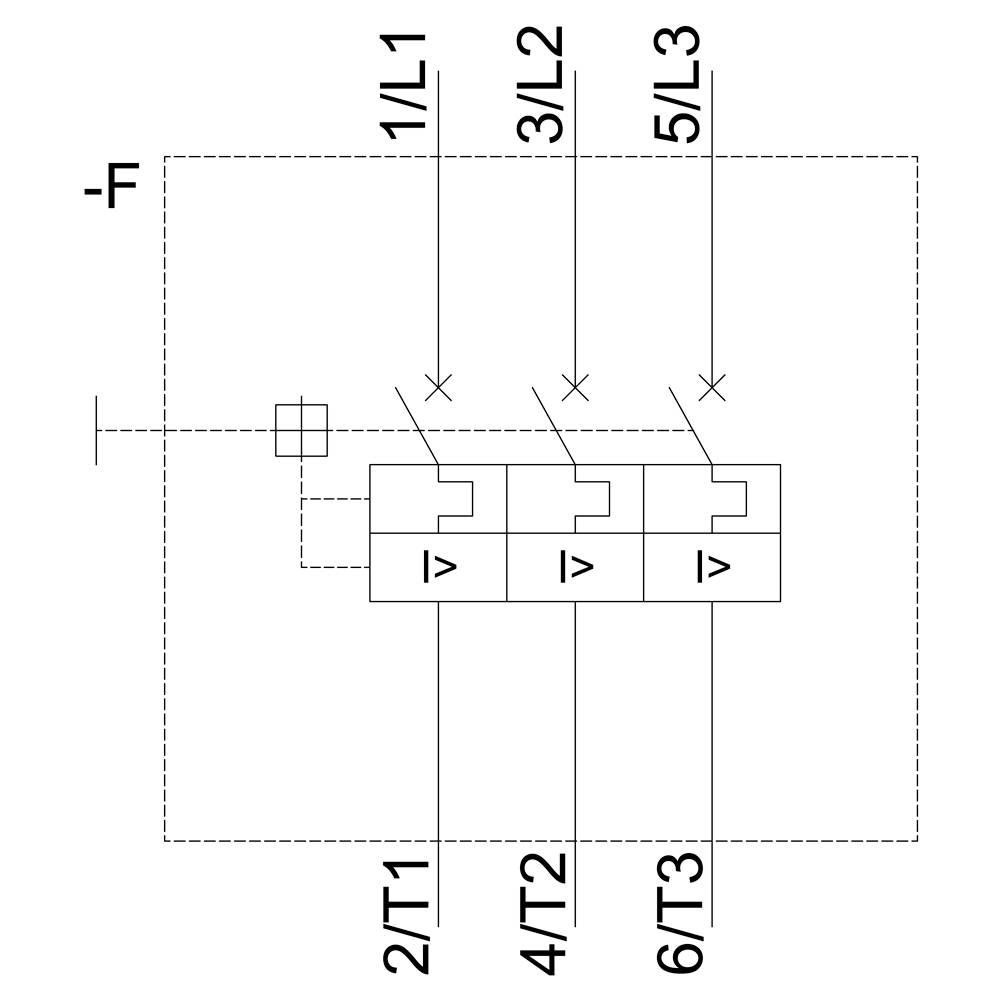

Three-phase circuit diagram with three fuses. Inputs labelled '1/L1', '3/L2', '5/L3'. Outputs '2/T1', '4/T2', '6/T3'.

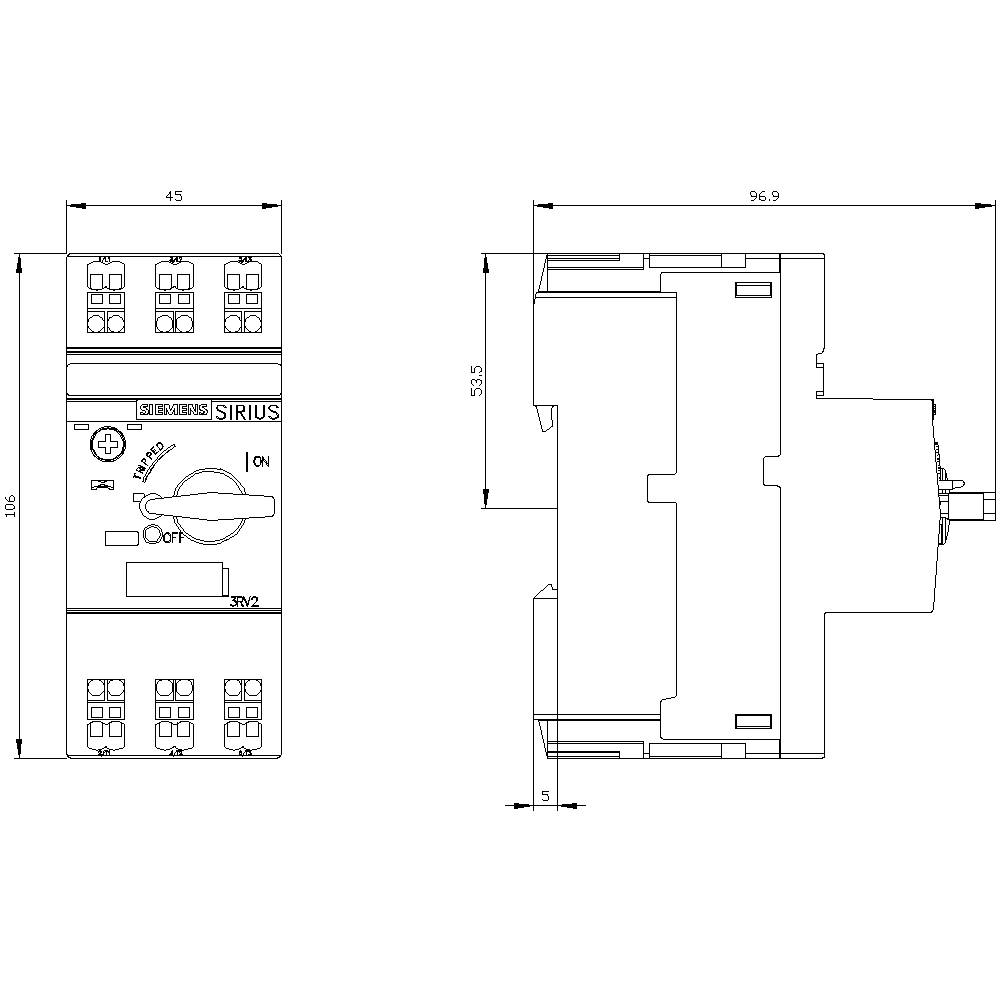

Line drawing of an electromechanical device with side and front views, detailed measurements given in millimetres.

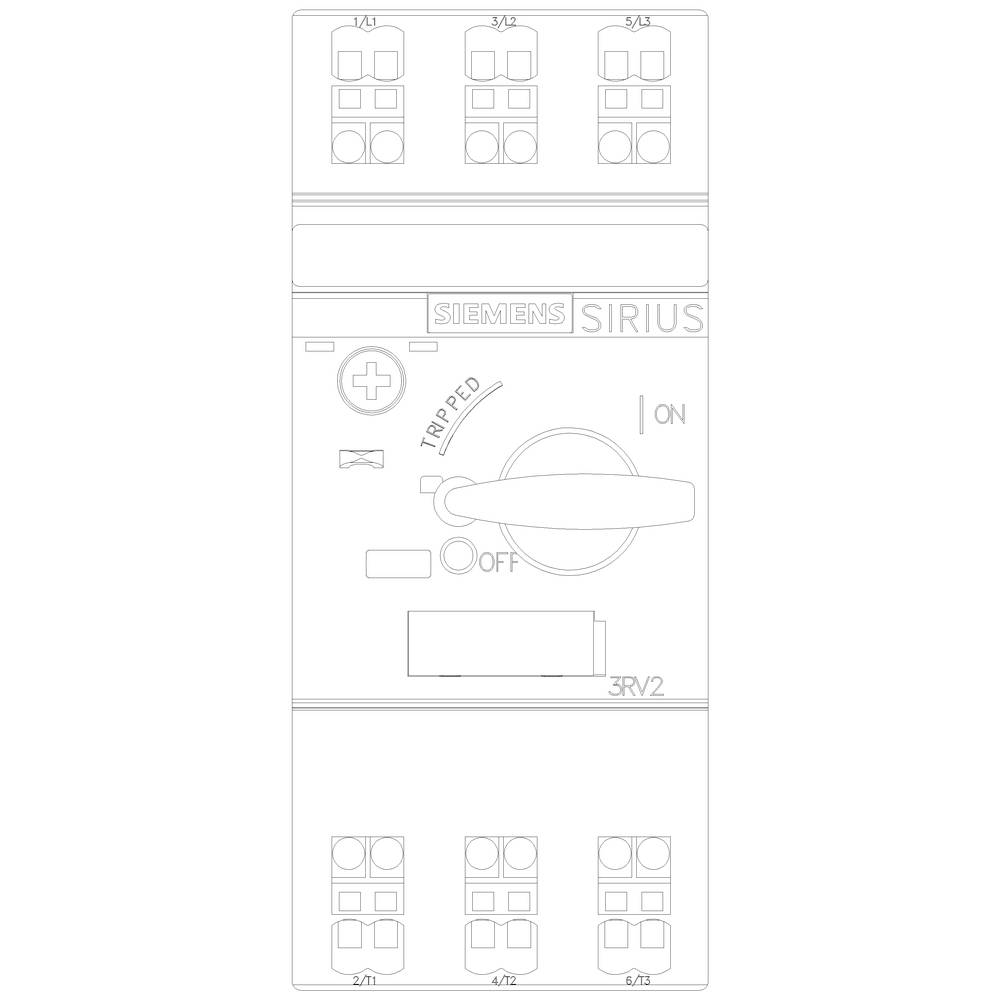

A switching device with a rotary knob, marked with 'Siemens Sirius'. Shows positions 'Tipped', 'Off', and 'On'. Terminal blocks at top and bottom.

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

6.3 A

Connection

Spring-loaded terminal

Type

3RV2411-1GA20

Type

S00

Datasheet (PDF)

Show alternatives

Sales and shipping:

Number

Piece(s)

Total (€ 92.43 / piece)

€

Report legal concerns

Technical specifications

Design: for transformer protection
Weight: 0,373 kg
Mechanical life: 100000
Electrical life: 100000
Power loss: 6 W
Mains frequency: 50/60 Hz.

Product type: Circuit breaker

Type: 3RV2411-1GA20

Type: S00

Amperage adjustment range (min.): 4.5 A

Amperage adjustment range (max.): 6.3 A

Adjustment range (amperage): 4.5 - 6.3 A

Current load: 6.3 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: DIN rail

Min. temperature: -20 °C

Max. temperature: +60 °C

Connection: Spring-loaded terminal

: IP20

Depth: 97 mm

Width: 45 mm

Height: 106 mm

Dim: (W x H x D) 45 x 106 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 6.3 A

: 3

: 4.5-6.3 A

: 0

: 20-690 V

: IP20

: Other

: FALSE

: Spring clamp connection

: Toggle

: FALSE

: 100 kA

: TRUE

: FALSE

: FALSE

: Built-in device fixed built-in technique
