Siemens 3SE54230CN201EB1 3SE5423-0CN20-1EB1 Door-operated switch 240 V 6 A IP67 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 88.23 / piece)
€
Technical specifications
- Mounting type: screw fastening
- Number of switching contacts: 1
- Product type
Door-operated switch

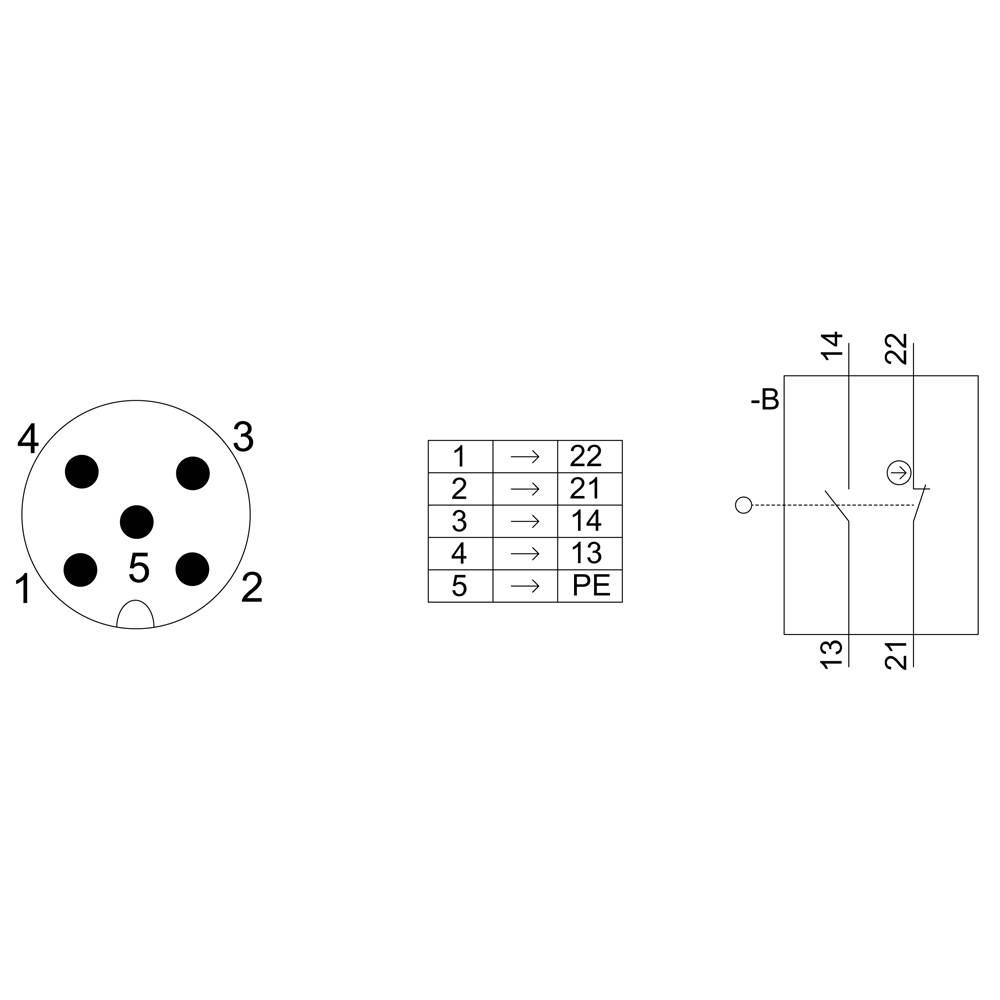

- Connection
Plug
- Switching voltage
240 V
- Switching current (max.)
6 A
- Contact type
1 breaker
1 maker
1 change-over
- Weight
148 g
- Min. temperature
-25 °C
- Max. temperature
+85 °C
IP67
- Thread size
M12
- Durability
5000000
- Electrical lifespan
100000
- Material
Metal
- Width
40 mm
- Type
3SE5423-0CN20-1EB1
- Content
1 pc(s)

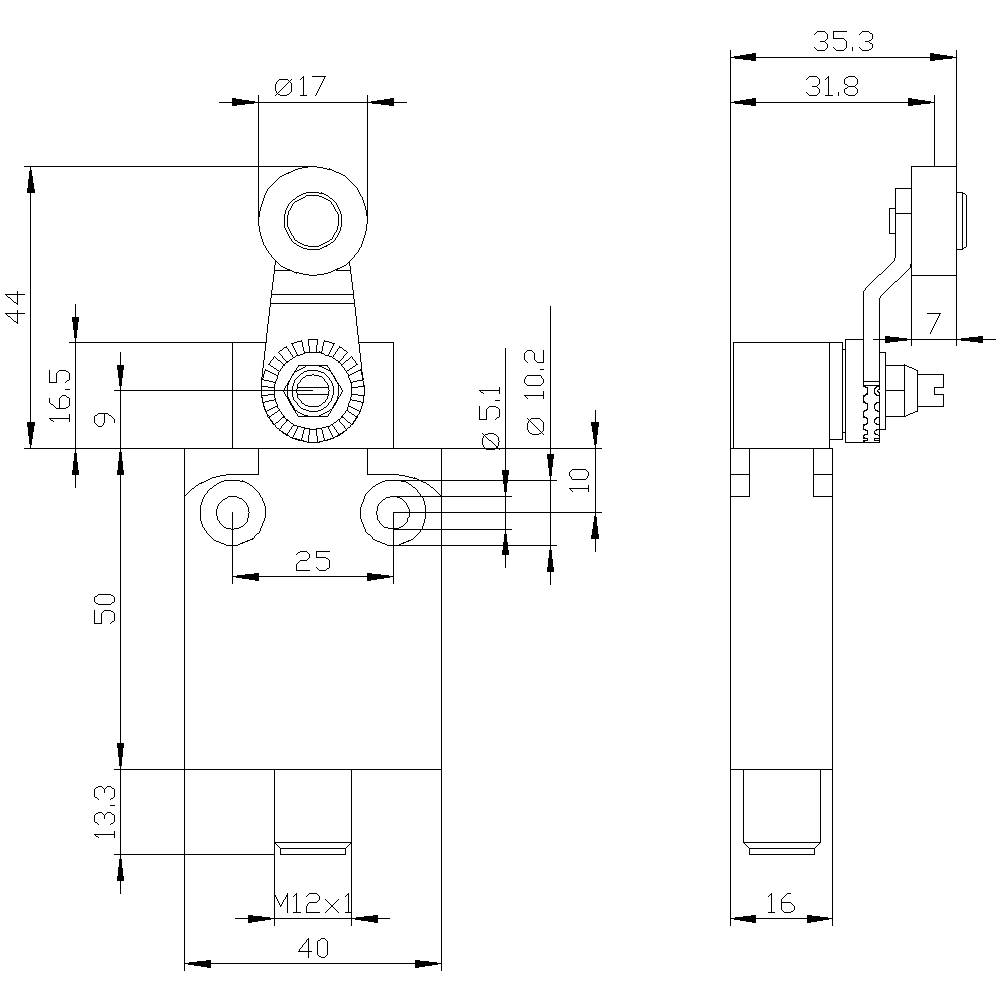

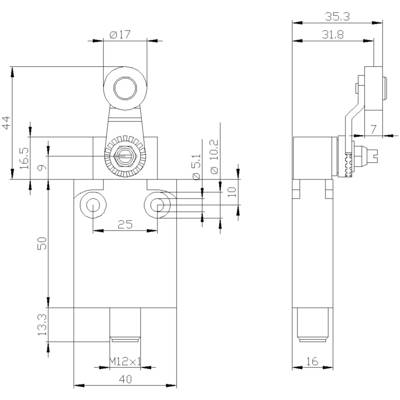

- Dim
(L x W) 95 mm x 40 mm
- RoHS-compliant
Yes
- Length
95 mm
- Depth
16 mm
Quick-break switch
3 A
0.27 A
Metal
TRUE
Lacquered
FALSE
None
None
None
Cuboid
IP67
TRUE
1
Rotary lever
None
FALSE
6 A
0.55 A
40 mm
16 mm
95 mm
FALSE
1
1
0
Roller cam straight
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1731507 Siemens 3SE54230CN201EB1 3SE5423-0CN20-1EB1 Door-operated switch 240 V 6 A IP67 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1731507 Siemens 3SE54230CN201EB1 3SE5423-0CN20-1EB1 Door-operated switch 240 V 6 A IP67 1 pc(s)
Conformity certificate
Conformity certificate 1731507 Siemens 3SE54230CN201EB1 3SE5423-0CN20-1EB1 Door-operated switch 240 V 6 A IP67 1 pc(s)
Description
Position switch in compact design 30 mm wide with connection cable 2 m Snap-action contacts 1 NO+1 NC Rounded plunger
