Siemens 3SE71201BH00 3SE7120-1BH00 Pull cord switch IP65 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 197.47 / piece)
€
Technical specifications
- Isolation voltage: 250 V
- Impulse withstand voltage rated value: 6 kV
- Operating current: 2 A
- Connection
Screws
- Contact type
2 breakers
1 maker
- Contact material
Silver
- Weight
406 g
- Factory colour
Black
Yellow
- Min. temperature
-25 °C
- Max. temperature
+70 °C
IP65
- Thread size
M20
- Durability
100000
- Material
Metal
Plastic
- Compatible with (details)
Cable lengths up to 5 m.
- Width
52 mm
- Type
3SE7120-1BH00
- Content
1 pc(s)

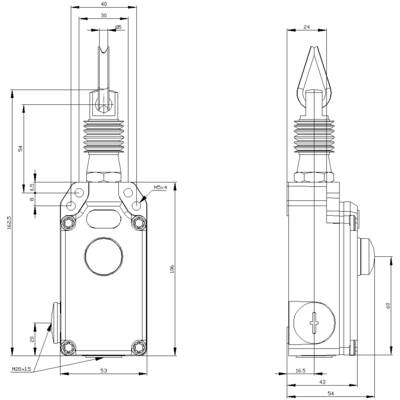

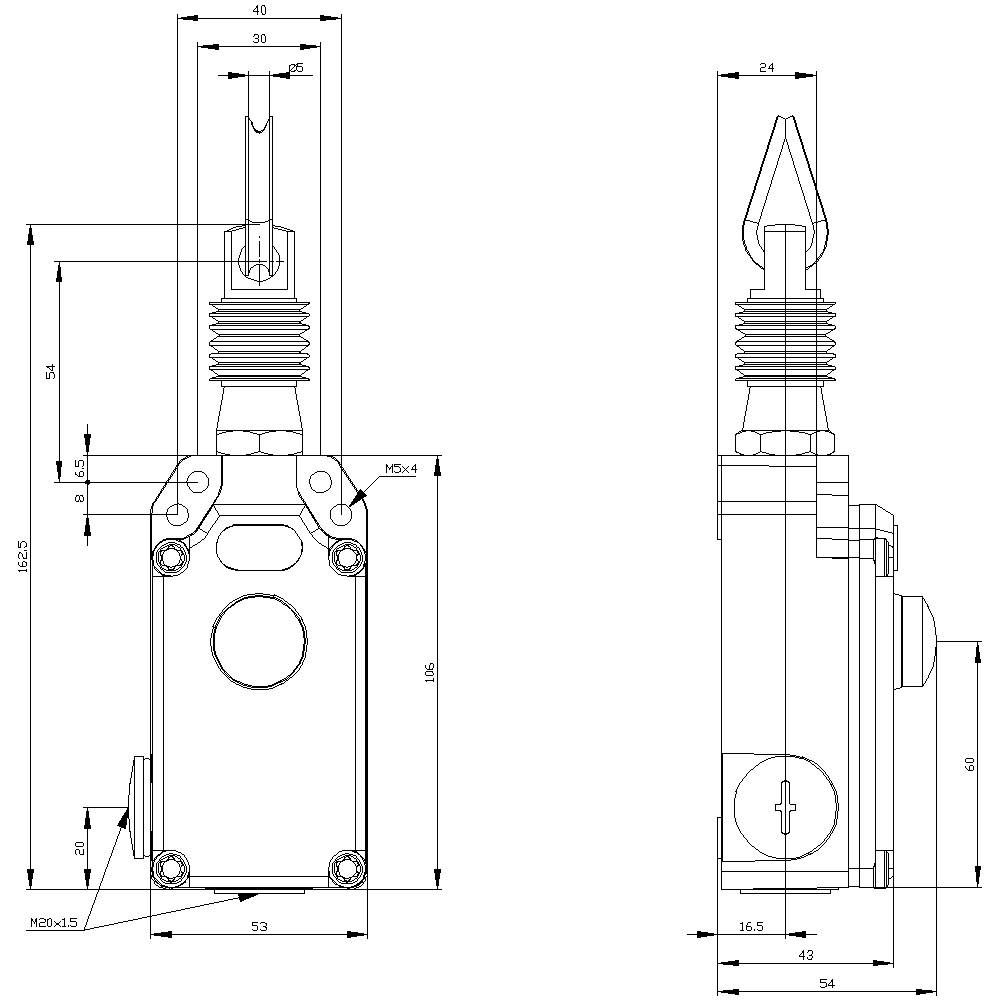

- Dim
(W x H x D) 52 x 171 x 54 mm
- RoHS-compliant
Yes
- Depth
54 mm
- Height
171 mm
-25--25 °C
IP65
5 m
2
1
0
- Product type
Pull cord switch
Documents & Downloads
Datasheet
Datasheet 1740049 Siemens 3SE71201BH00 3SE7120-1BH00 Pull cord switch IP65 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1740049 Siemens 3SE71201BH00 3SE7120-1BH00 Pull cord switch IP65 1 pc(s)
Description
circuit breaker 3VA2 IEC frame 100 breaking capacity class M Icu=55kA @ 415 V 4pole, line protection ETU550, LSI, In=100A overload protection ir=40A ...100A short circuit protection Isd=0,6..10x In, iI=1,5..12x In neutral protection adjustable (off, upto 100%) busbar connection
