Siemens 3SE71502DD00 3SE7150-2DD00 Pull cord switch IP65 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 163.86 / piece)
€
Technical specifications
- Isolation voltage: 400 V
- Impulse withstand voltage rated value: 6 kV
- Operating current: 6 A
- Product type
Pull cord switch
- Connection
Screws
- Contact type
1 breaker
1 maker
- Contact material
Silver
- Weight
430 g
- Factory colour
Black
Grey
- Min. temperature
-25 °C
- Max. temperature
+70 °C
IP65
- Thread size
M20
- Durability
1000000
- Material
Metal
Plastic
- Compatible with (details)
Cable lengths up to 25 m.
- Width
52 mm
- Type
3SE7150-2DD00
- Content
1 pc(s)

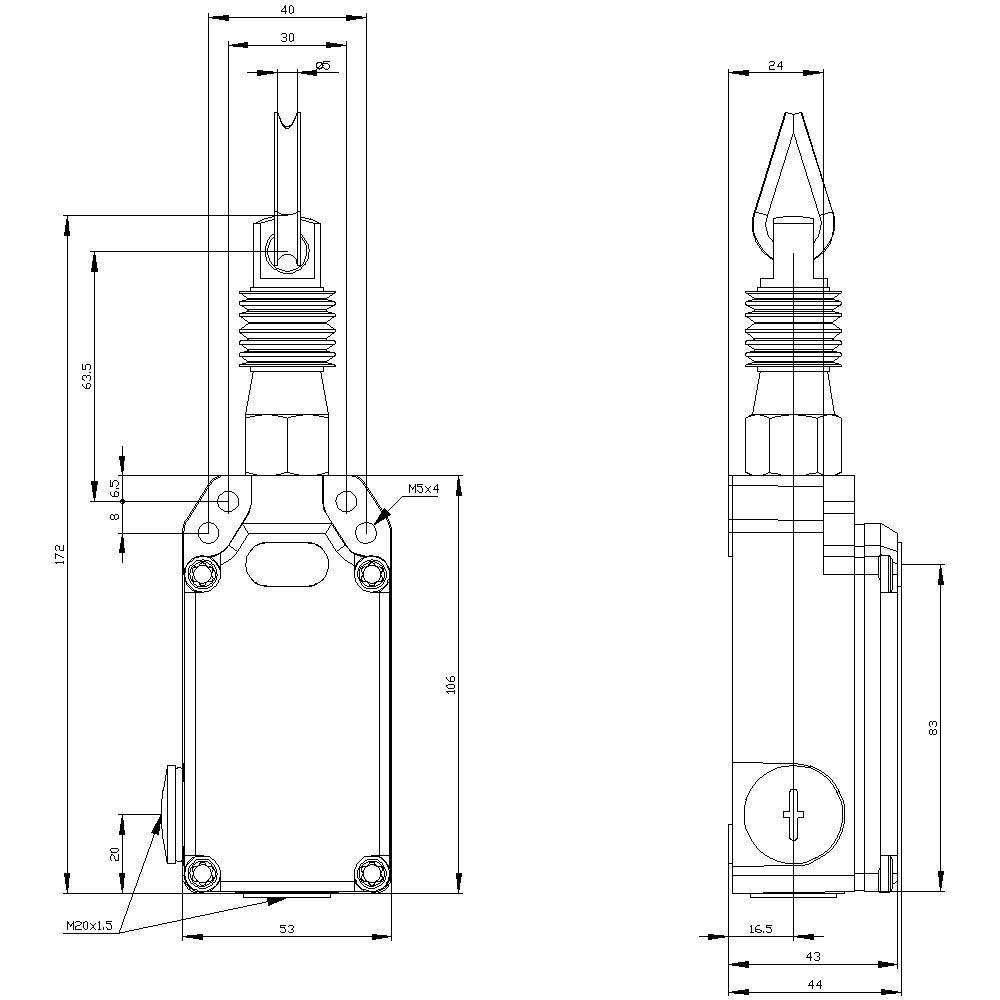

- Dim
(W x H x D) 52 x 171 x 42.5 mm
- RoHS-compliant
Yes
- Height
171 mm
- Depth
42.5 mm
-25--25 °C
IP65
20 m
1
1
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1740247 Siemens 3SE71502DD00 3SE7150-2DD00 Pull cord switch IP65 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1740247 Siemens 3SE71502DD00 3SE7150-2DD00 Pull cord switch IP65 1 pc(s)
Description
Contactor assembly for reversing Size 00, AC-3, 4 kW/400 V 240 V AC 50/60 Hz AC operation AC operation
