Buy Siemens 3SU10001AA300AA0 3SU1000-1AA30-0AA0 Mushroom head pushbutton (Ø x H) 30 mm x 30 mm IP66, IP67, IP69/IP69K 1 pc(s

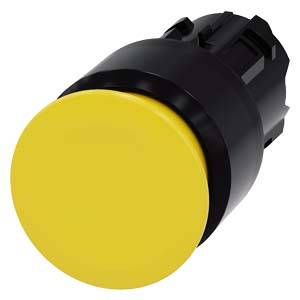

Yellow push button with a black housing, used as an operating element in machines or electronic devices.

Image similar

Cable car station with empty gondolas. A control panel is visible in the foreground. A mountainous landscape can be seen through the glass windows.

Technical drawing of a rotationally symmetrical part with external and internal dimensions. Outer diameter 30 mm, total length 51.9 mm.

1/3

Image similar

Product type

Mushroom head pushbutton

Lighting type

None

Width

30 mm

Recess diameter

22.3 mm

IP rating

IP66

IP67

IP69/IP69K

Datasheet (PDF)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 28.56 / piece)

€

Report legal concerns

Technical specifications

Weight 27 g

Product type: Mushroom head pushbutton

Casing/button colour: Yellow

Type: Activation/message element

Lighting type: None

Material: Plastic

Min. temperature: -25 °C

Shape: Round

Max. temperature: +70 °C

Width: 30 mm

Height: 30 mm

(Ø): 30 mm

Recess length: 27.5 mm

Durability: 500000

Recess diameter: 22.3 mm

Recess depth: 24.4 mm

Recess width: 30 mm

: IP66
IP67
IP69/IP69K

Content: 1 pc(s)

Dim: (Ø x H) 30 mm x 30 mm

RoHS-compliant: Yes

Type: 3SU1000-1AA30-0AA0

: 22.3 mm

: Yellow

: FALSE

: Pull-release

: FALSE

: 30 mm

: FALSE

: High

: Black

: 30 mm

: 27.5 mm

: IP67/IP69K

: Plastic

: TRUE

: Round

: FALSE

: Other

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1752784 Siemens 3SU10001AA300AA0 3SU1000-1AA30-0AA0 Mushroom head pushbutton (Ø x H) 30 mm x 30 mm IP66, IP67, IP69/IP69K 1 pc(s

User & Safety Instructions

User & Safety Instructions 1752784 Siemens 3SU10001AA300AA0 3SU1000-1AA30-0AA0 Mushroom head pushbutton (Ø x H) 30 mm x 30 mm IP66, IP67, IP69/IP69K 1 pc(s

Information

Information 1752784 Siemens 3SU10001AA300AA0 3SU1000-1AA30-0AA0 Mushroom head pushbutton (Ø x H) 30 mm x 30 mm IP66, IP67, IP69/IP69K 1 pc(s

Description

RONIS key-operated switch, 22 mm, round, plastic, lock number 455, with 2 keys, 3 switch positions I-O-II, latching, actuating angle 2x45°, 10:30h/12h/13:30h, Key removal I+O+II
