Buy Siemens 3SU1152-6AA20-3AA0 Illuminated alerter 1 pc(s)

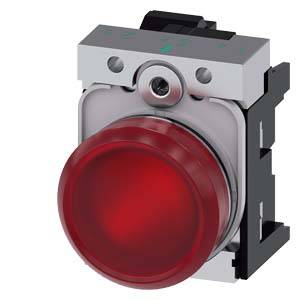

A red, round button in a square metal frame, suitable for control panels or machine operation interfaces.

Image similar

Cable car station with a gondola ready for departure. Control buttons for operating the system are in the foreground.

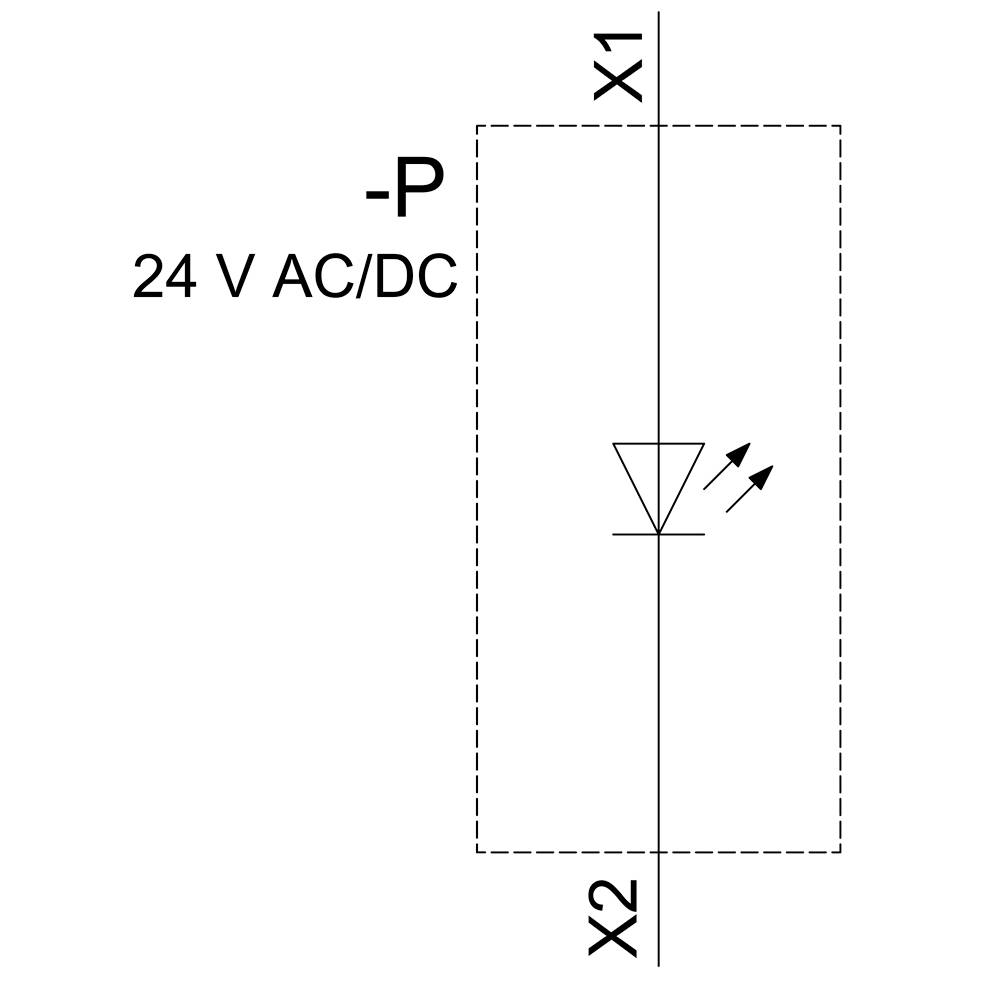

Circuit symbol shows an LED with input terminals X1 and X2; operating voltage is 24 V AC/DC, polarity-dependent (-P).

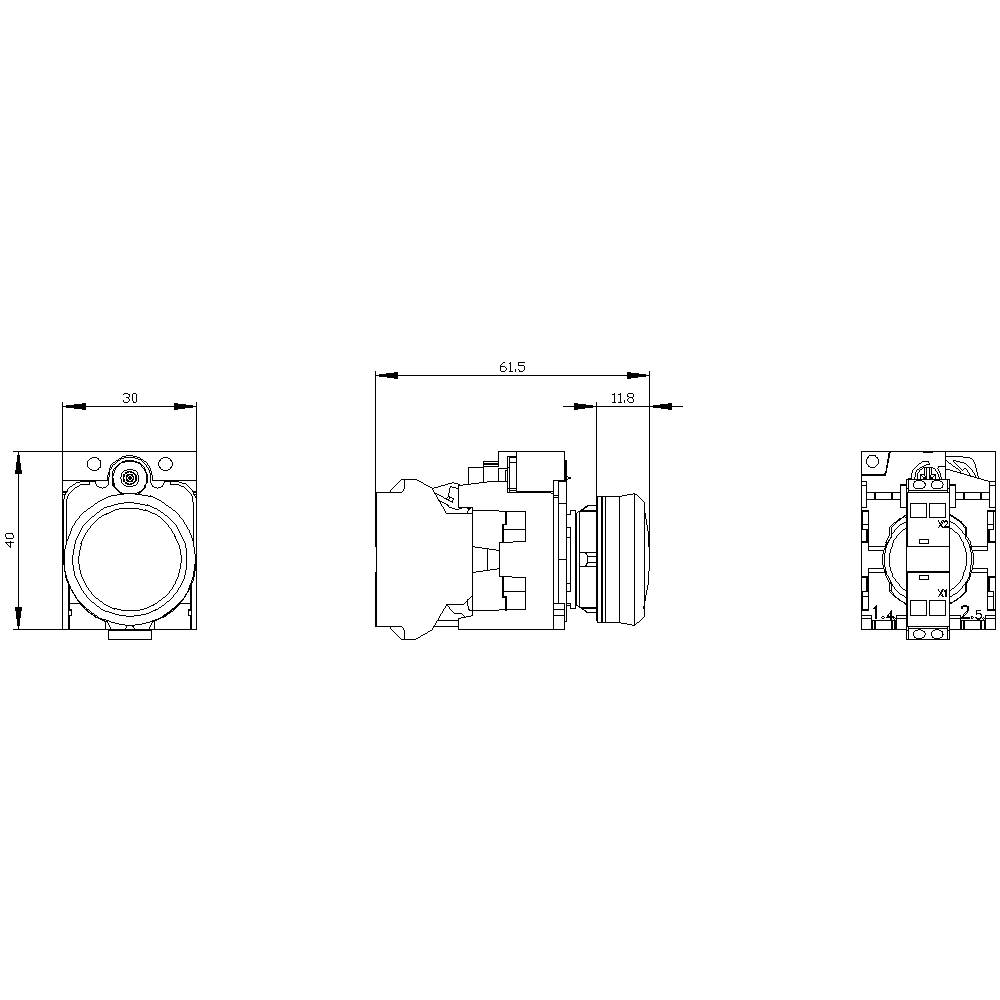

Technical drawing of a switch with three views: Front view with dimensions 40 mm x 30 mm, side view 61.5 mm x 11.8 mm.

1/4

Image similar

Datasheet (PDF)

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 17.64 / piece)

€

Only 2 Piece(s) available

Report legal concerns

Technical specifications

Complete device

: n.rel.

Content: 1 pc(s)

Dim: (W x H) 30 mm x 40 mm

Height: 40 mm

Width: 30 mm

: IP66
IP67
IP69

Light bulb included: Yes

Type: 3SU1152-6AA20-3AA0

RoHS-compliant: Yes

Max. temperature: +70 °C

Min. temperature: -25 °C

Weight: 80 g

: 22.3 mm

: AC/DC

: 1

: Other

: Other

: 29.5 mm

: 11.8 mm

: IP67/IP69K

: TRUE

: Other

: FALSE

: Other

: Other

Product type: Illuminated alerter

Documents & Downloads

Datasheet

Datasheet 1731636 Siemens 3SU1152-6AA20-3AA0 Illuminated alerter 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1731636 Siemens 3SU1152-6AA20-3AA0 Illuminated alerter 1 pc(s)

Information

Information 1731636 Siemens 3SU1152-6AA20-3AA0 Illuminated alerter 1 pc(s)

Description

Illuminated pushbutton, 22 mm, round, plastic, blue, pushbutton, flat, momentary contact type, with holder, 1 NO+1 NC, LED module with integrated LED 110 V AC, screw terminal
