Buy Siemens 3SU1401-2BH20-1AA0 LED module Red 240 V 1 pc(s)

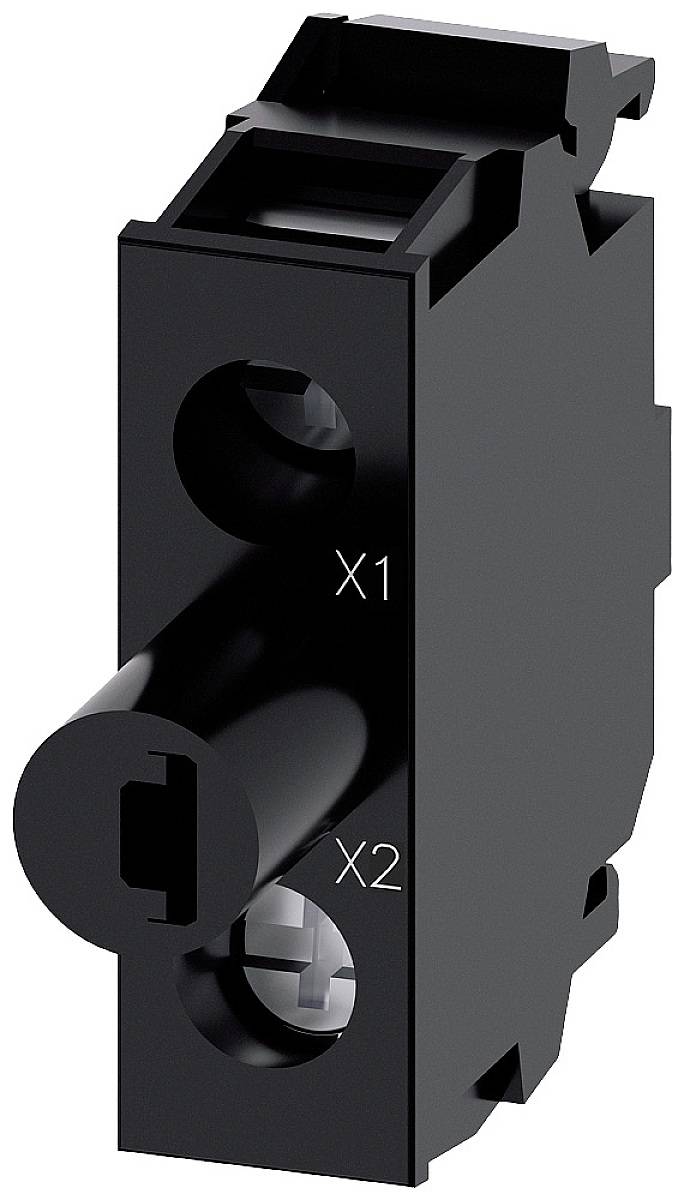

Black electrical component with two connection openings, labelled 'X1' and 'X2'. Used for securing and connecting wires.

Image similar

Cable car station with a gondola. In the foreground, a control panel with colourful buttons. A snow-covered mountain landscape visible through the window in the background.

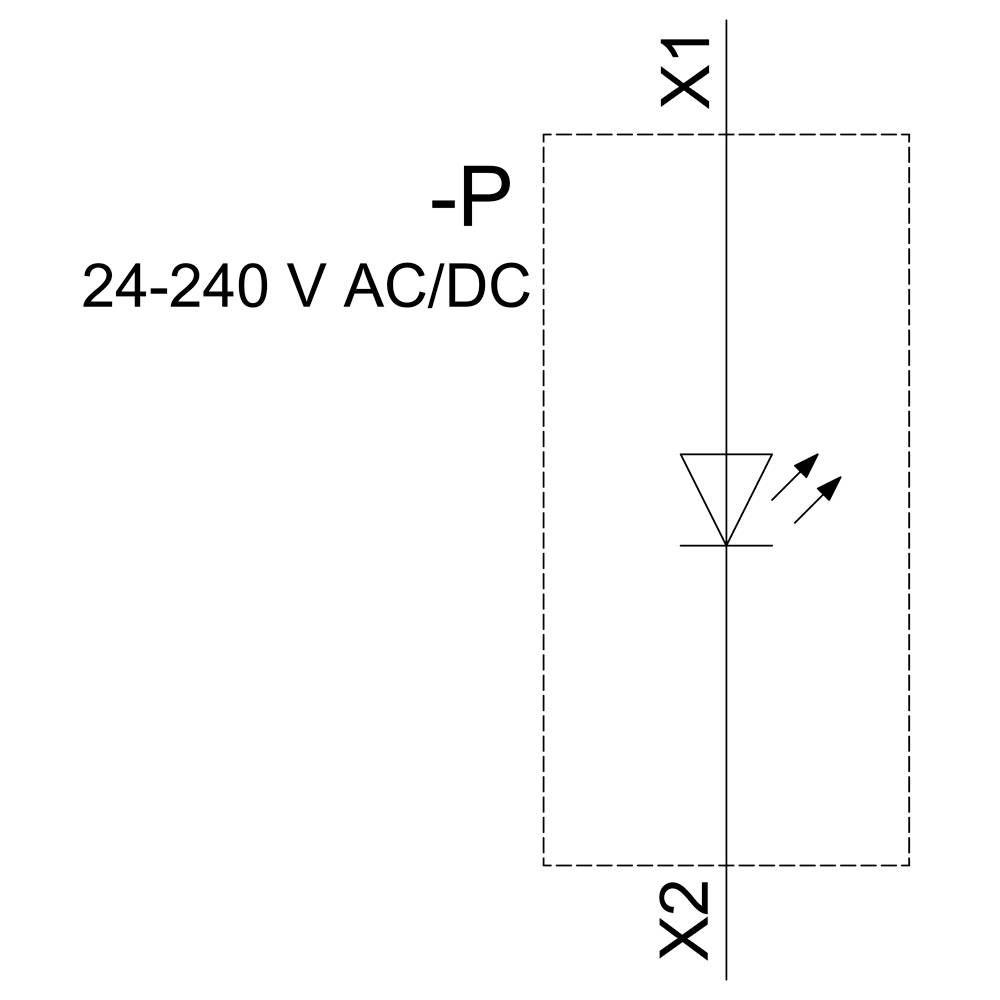

'Electrical symbol: Rectifier or diode, labelled with -P and 24-240 V AC/DC, situated between terminals X1 and X2.'

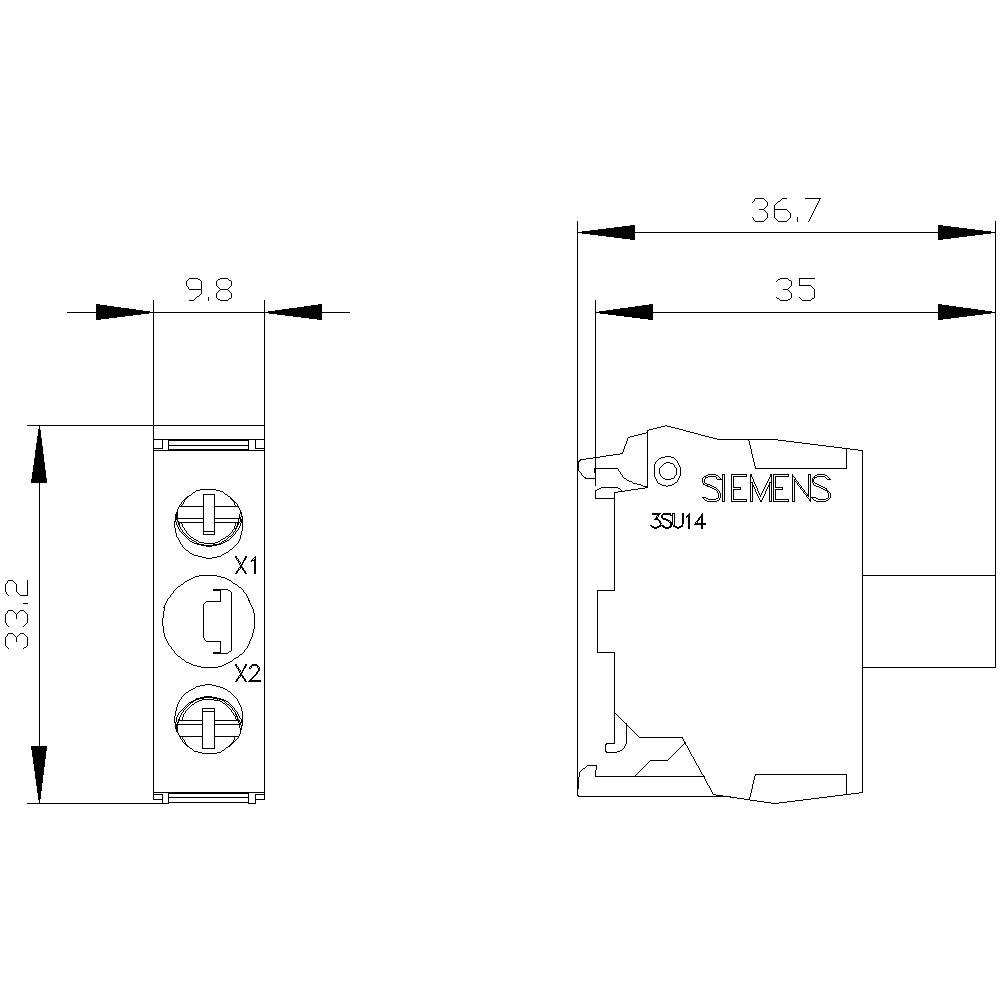

Technical drawing of a Siemens switch with dimensions: Width 9.8 mm, Height 33.2 mm, Depth 36.7 mm. Front and side view.

1/4

Image similar

Datasheet (PDF)

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 17.64 / piece)

€

Report legal concerns

Technical specifications

Maximum light intensity: 1120 mcd
Design of the Electrical Connection: screw terminals.

Type: LED

Colour: Red

Switching voltage: 240 V

Switching current (max.): 20 mA

: IP40

Min. temperature: -25 °C

Max. temperature: +70 °C

Width: 9.8 mm

Height: 33.2 mm

Electrical lifespan: 100000

Mounting type: Floor fixed

Content: 1 pc(s)

Dim: (W x H x D) 9.8 x 33.2 x 29.4 mm

RoHS-compliant: Yes

Depth: 29.4 mm

Light bulb included: Yes

Type: 3SU1401-2BH20-1AA0

: None

: FALSE

: FALSE

: TRUE

: Red

: LED

: TRUE

: Screw connection

: AC/DC

Product type: LED module

Documents & Downloads

Datasheet

Datasheet 1731723 Siemens 3SU1401-2BH20-1AA0 LED module Red 240 V 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1731723 Siemens 3SU1401-2BH20-1AA0 LED module Red 240 V 1 pc(s)

Information

Information 1731723 Siemens 3SU1401-2BH20-1AA0 LED module Red 240 V 1 pc(s)

Description

Mushroom pushbutton, 22 mm, round, metal, shiny, yellow, 40 mm, momentary contact type
