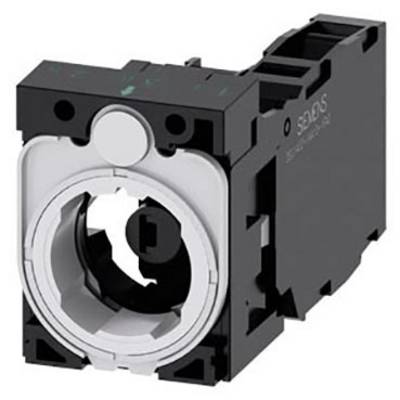

Black and white electrical switch without cover, ready for installation of control elements in industrial facilities.

Image similar

Black and white electrical switch without cover, ready for installation of control elements in industrial facilities.

Cable car gondola at a modern mountain station. In the foreground, a control panel with coloured buttons is visible. Mountain landscape in the background.

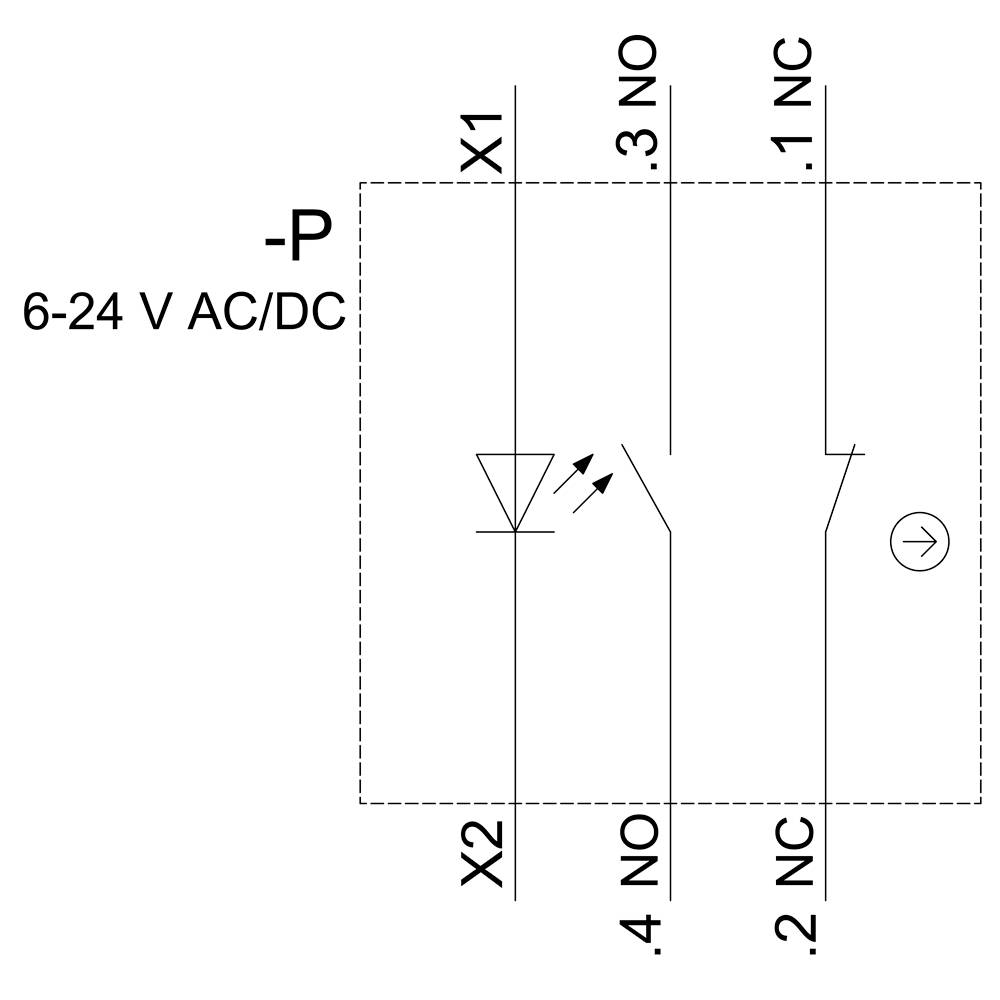

Switching symbol shows relay with coil at P, 6-24 V AC/DC, and three terminal connections: X1 (.3 NO), X2 (.4 NO and .2 NC), and .1 NC.

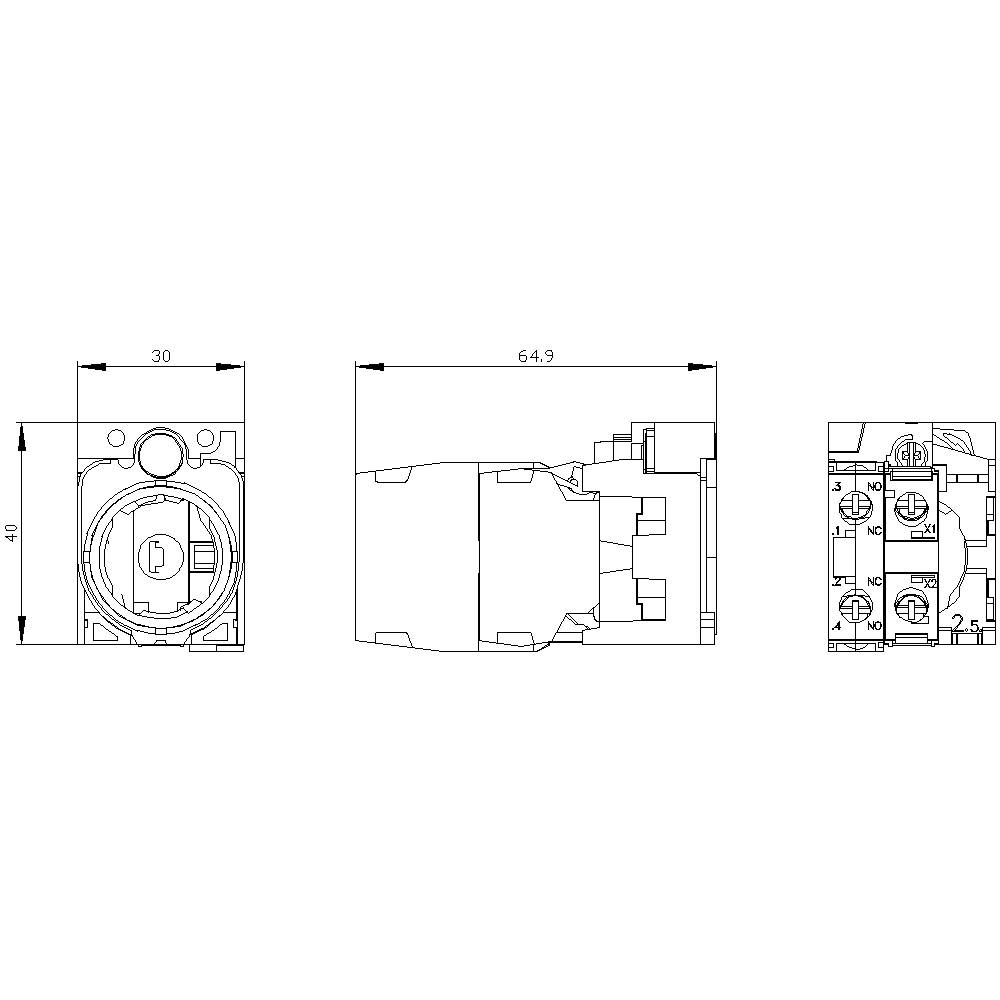

Technical drawing of a switch: Front view, side view, and top view with dimensions 30x40x64.9 mm.

1/4

Image similar

Siemens

Datasheet (PDF)

Deutsch (Deutschland)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 28.56 / piece)

€

Report legal concerns

Technical specifications

Material of the holder: plastic
Number of contact modules: 1
The number of LED modules: 1
Isolation voltage: 320 V
Switching frequency: 3600 1/h.
Operating current: 6 A
Operating voltage: 6 V, -24 V
Shape: round
Type of connectable conductor cross-sections, and single-core with wire finishing: 2 x (0.5 mm²-0.75 mm²)

Product type: Triple module holder

Connection: Screws

Type: 3-way with module

Recess depth: 71.8 mm

Contact type: 1 breaker
1 maker

Colour: Blue

Switching current (max.): 10 A

: IP20

Dielectric strength: 4 kV

Min. temperature: -25 °C

Max. temperature: +70 °C

Width: 30 mm

Height: 40 mm

Compatible with (details): 3 modules

Durability: 10

Mounting type: Front panel fixed

Content: 1 pc(s)

Dim: (W x H) 30 mm x 40 mm

RoHS-compliant: Yes

Weight: 53 g

Type: 3SU1501-1AG50-1FA0

UKCA: yes

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 1702454 Siemens 3SU1501-1AG50-1FA0 Triple module holder 1 breaker, 1 maker Blue 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1702454 Siemens 3SU1501-1AG50-1FA0 Triple module holder 1 breaker, 1 maker Blue 1 pc(s)

Information

Information 1702454 Siemens 3SU1501-1AG50-1FA0 Triple module holder 1 breaker, 1 maker Blue 1 pc(s)

Description

Selector switch, illuminable, 22 mm, round, plastic, red, selector switch, long, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h
