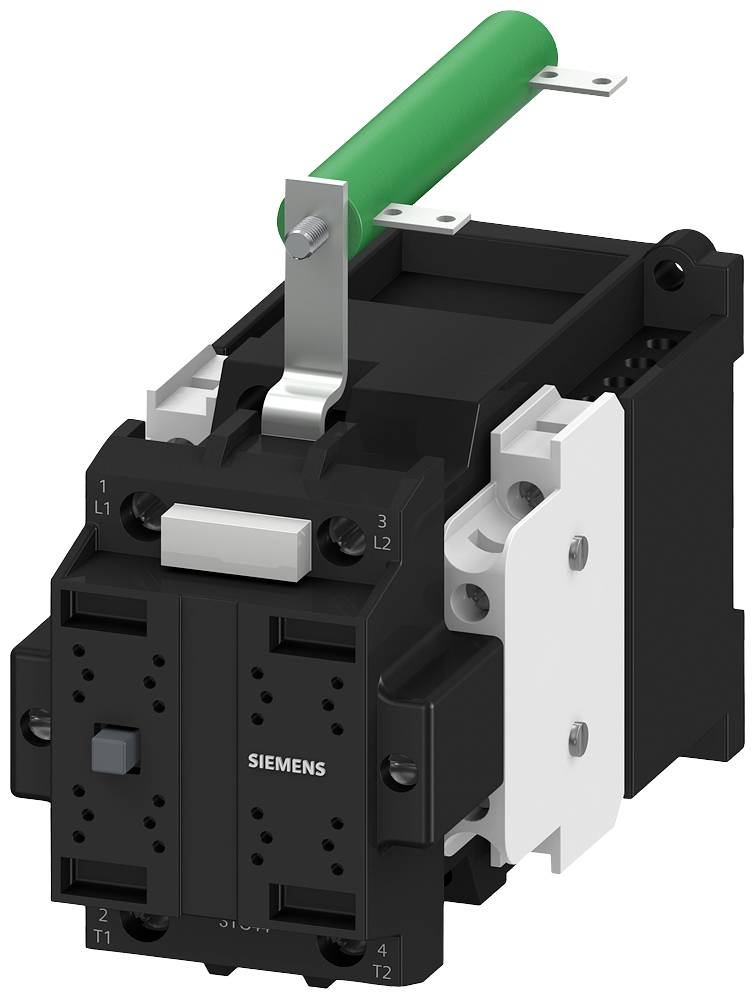

Siemens 3TC4417-0LV4 Contactor 2 makers 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
2-pin
Connection
Screws
Type
3TC4417-0LV4
Type
2
Datasheet (PDF)
Technical specifications
- Operating power / at DC-3/at DC-5/at 750V: 4 kW
- Type of voltage: DC
- Isolation voltage: 800 V
- Contact protection against electrical shock: Finger-safe only with terminal cover
- Product type
Contactor
- Type
3TC4417-0LV4
- Type
2
- No. of pins
2-pin
- Contact type
2 makers
- Auxiliary contact type
2 breakers
2 makers
- Permanent current (max.)
32 A
- Mounting type
Snap-in
Screw-fit
- Connection
Screws
- Durability
1000 0000
IP00
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Width
82 mm
- Height
115 mm
- Depth
145 mm

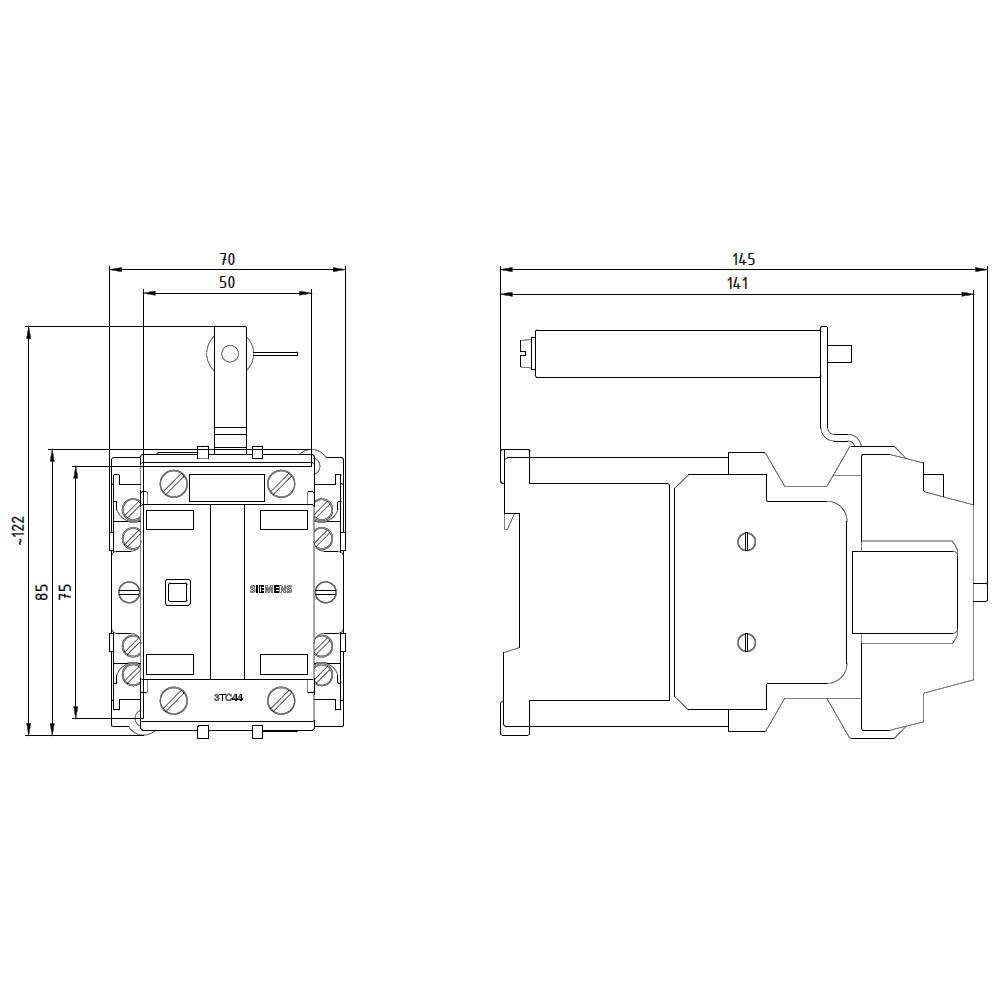

- Dim
(W x H x D) 82 x 115 x 145 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
TRUE
2
0
2
2
Screw connection
9 kW
29 A
DC
Documents & Downloads
Datasheet
Datasheet 1737477 Siemens 3TC4417-0LV4 Contactor 2 makers 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1737477 Siemens 3TC4417-0LV4 Contactor 2 makers 1 pc(s)
Description
NOTICE: WILL BE DISCONTINUED, WITHOUT REPLACEMENT ON OCT. 31, MAGNETICALLY-OPERATED EXPLOSION-PROOF DESIGN, 1NO WITH CONNECTING CAB. 1M H05RN-F 2X0,75
