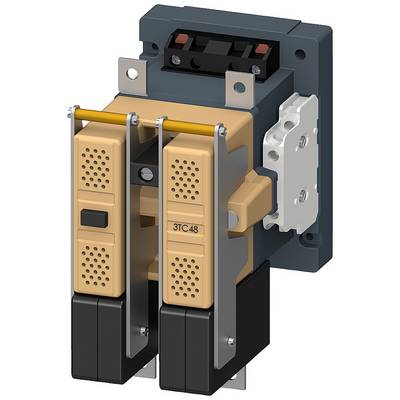

Siemens 3TC4817-0BB0 Contactor 2 makers 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
2-pin
Connection
Screws
Type
3TC4817-0BB0
Type
4
Datasheet (PDF)
Technical specifications
- Operating power / at DC-3/at DC-5/at 750V: 45 kW
- Type of voltage: AC
- Isolation voltage: 800 V
- Contact protection against electrical shock: Finger-safe only with terminal cover
- Product type
Contactor
- Type
3TC4817-0BB0
- Type
4
- No. of pins
2-pin
- Contact type
2 makers
- Auxiliary contact type
2 breakers
2 makers
- Permanent current (max.)
75 A
- Mounting type
Screw-fit
- Connection
Screws
- Durability
1000 0000
IP00
- Min. temperature
-25 °C
- Max. temperature
+55 °C

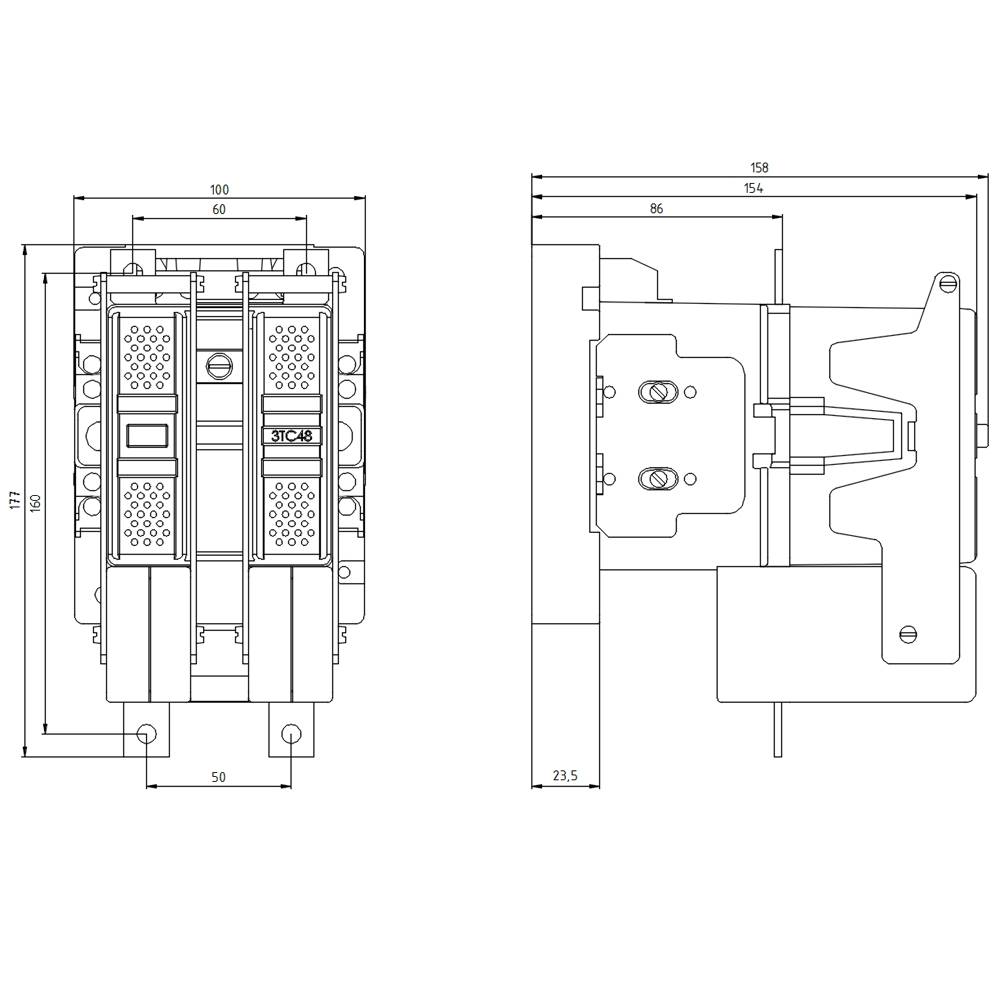

- Width
100 mm
- Height
177.5 mm
- Depth
156 mm
- Dim
(W x H x D) 100 x 177.5 x 156 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
TRUE
2
0
2
2
Screw connection
27 kW
75 A
DC
Documents & Downloads
Datasheet
Datasheet 1737486 Siemens 3TC4817-0BB0 Contactor 2 makers 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1737486 Siemens 3TC4817-0BB0 Contactor 2 makers 1 pc(s)
Description

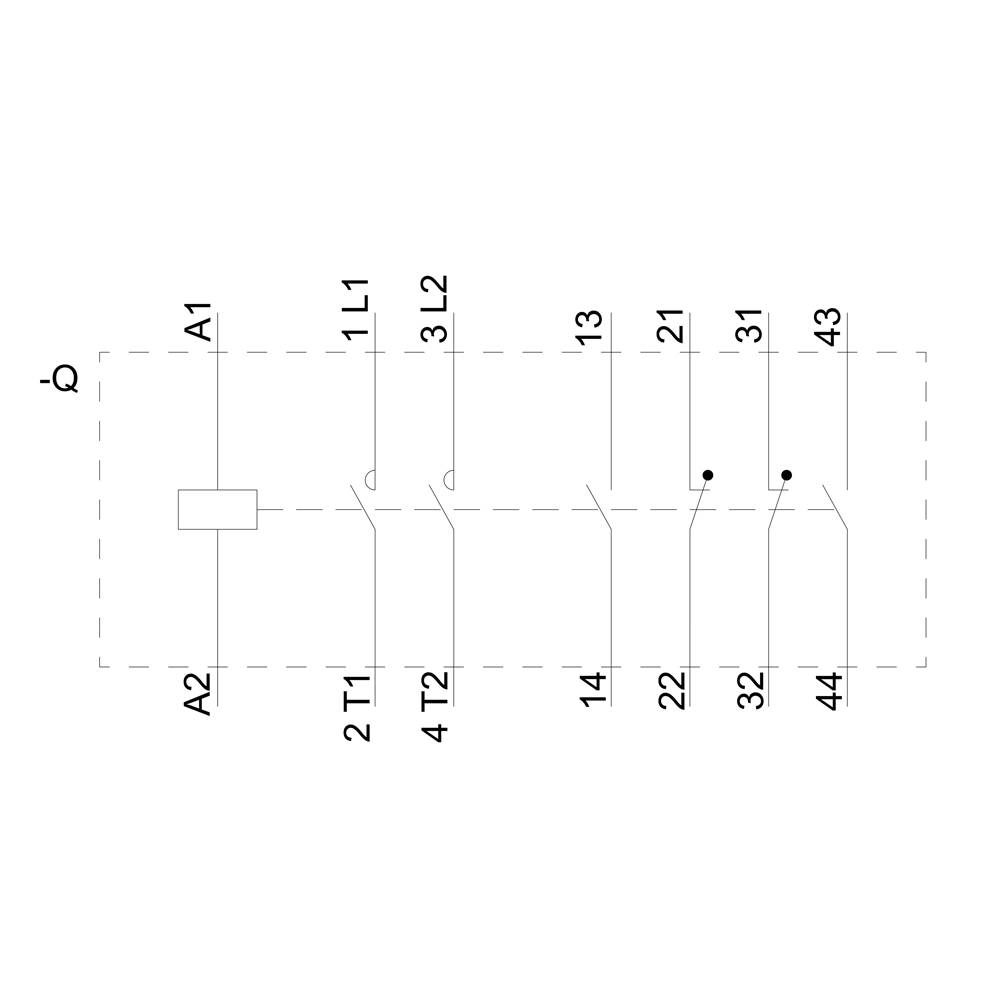

Contactor, Size 4, 2-pole, DC-3 and 5, 75 A Auxiliary switch 21 (2 NO + 1 NC) 110V DC DC operation
