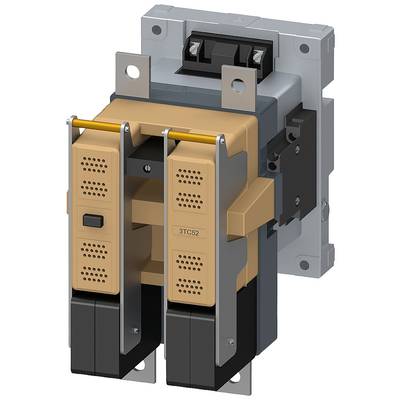

Siemens 3TC5217-0BP0 Contactor 2 makers 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
2-pin
Connection
Screws
Type
3TC5217-0BP0
Type
8
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 1,536.97 / piece)
€
Technical specifications
- Operating power / at DC-3/at DC-5/at 750 V:110 kW
- Type of voltage: AC
- Isolation voltage: 1000 V
- Contact protection against electrical shock: Finger-safe only with terminal cover
- Product type
Contactor
- Type
3TC5217-0BP0
- Type
8
- No. of pins
2-pin
- Contact type
2 makers
- Auxiliary contact type
2 breakers
2 makers
- Permanent current (max.)
220 A
- Mounting type
Screw-fit
- Connection
Screws
- Durability
1000 0000
IP00
- Min. temperature
-25 °C
- Max. temperature
+55 °C
- Width
135 mm
- Height
240 mm
- Depth
204 mm
- Dim

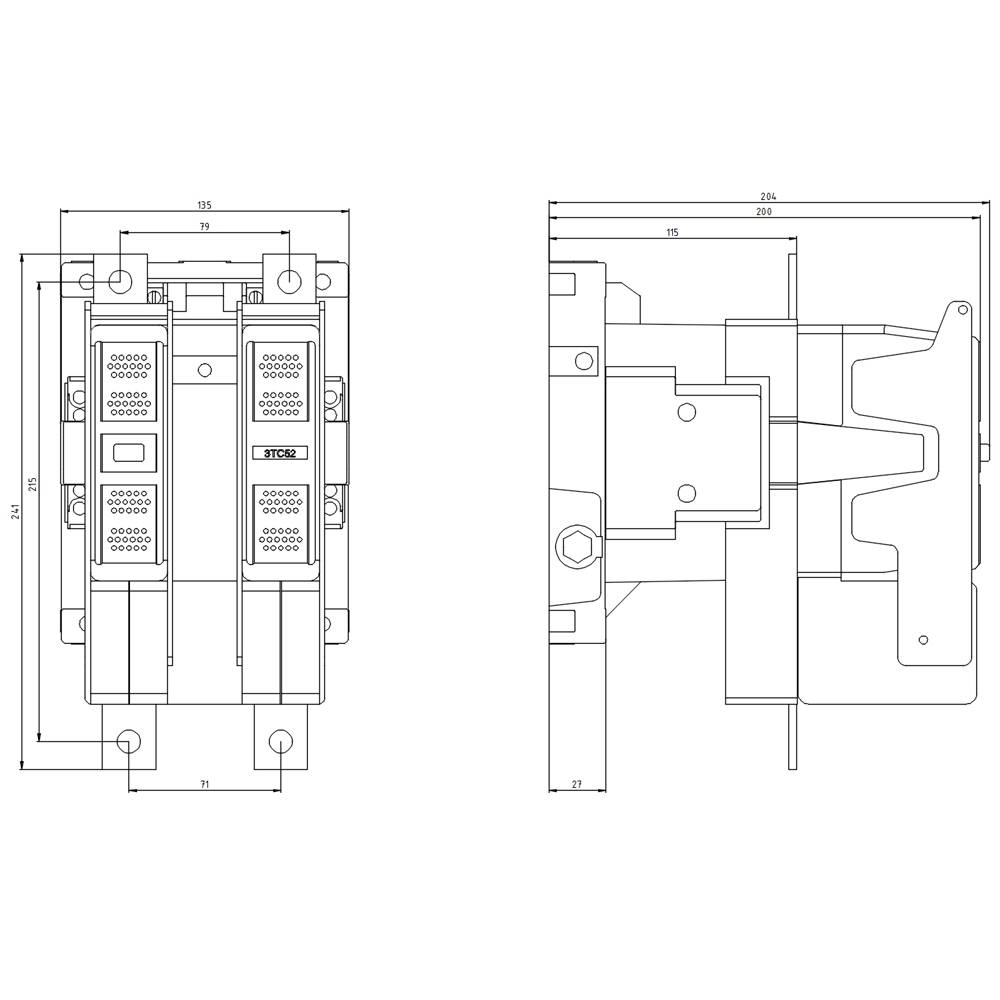

(W x H x D) 135 x 240 x 204 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
TRUE
2
0
2
2
Screw connection
82 kW
220 A
DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1739060 Siemens 3TC5217-0BP0 Contactor 2 makers 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1739060 Siemens 3TC5217-0BP0 Contactor 2 makers 1 pc(s)
Description

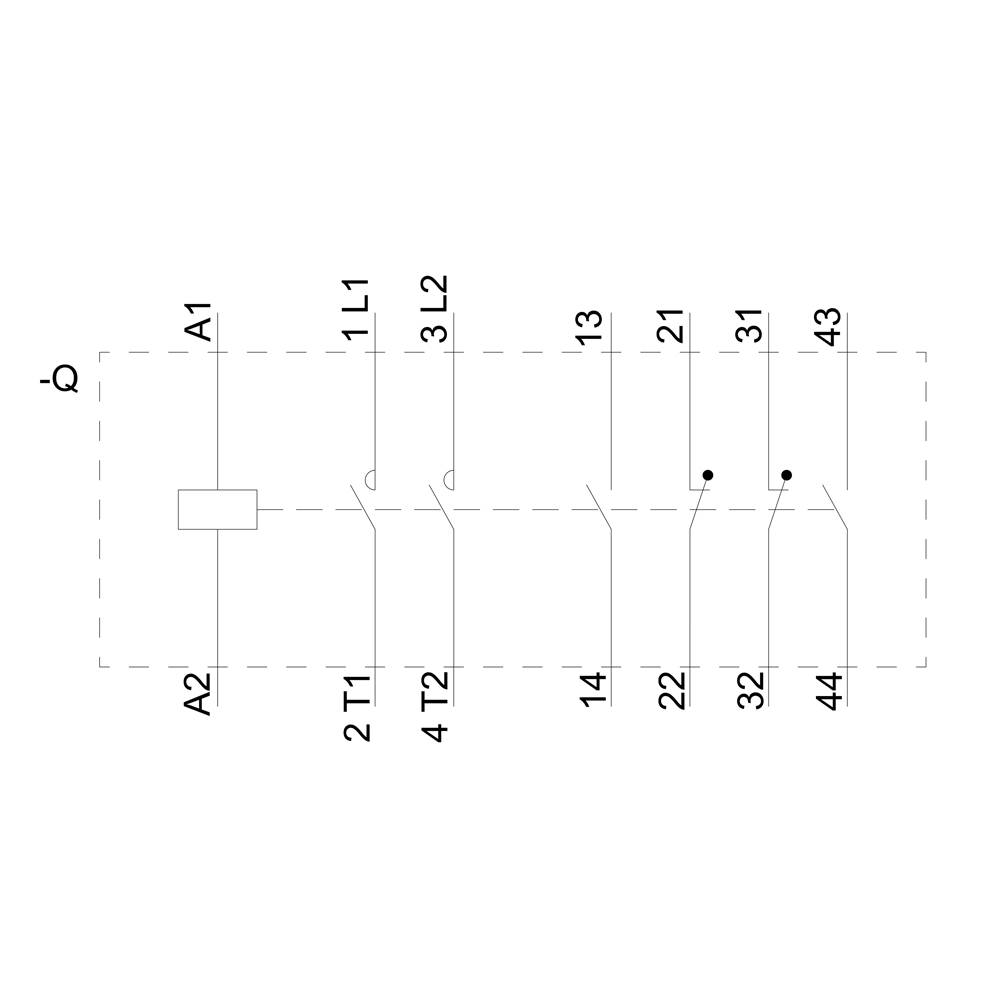

Contactor, size 12, 2-pole, DC-3 and 5, 400 A at 750 V Auxiliary contacts 21 (2NO + 1NC) 24V DC DC operation with varistor and series resistor Operating range 0.7 to 1.25 x US DC operation
