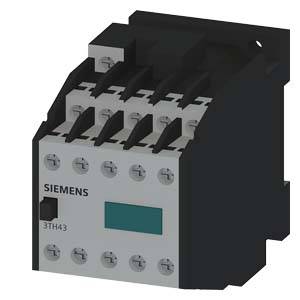

Siemens 3TH4382-0AN2 Auxiliary contactor 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary contactor
Type
3TH4382-0AN2
Auxiliary contact type
2 breakers
8 makers
Mounting type
Snap-in
Screw-fit
IP rating
IP20
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 121.84 / piece)
€
Technical specifications
- Type of voltage: AC
- Product type
Auxiliary contactor
- Type
3TH4382-0AN2
- Auxiliary contact type
2 breakers
8 makers
- Mounting type
Snap-in
Screw-fit
IP20
- Min. temperature
-25 °C
- Max. temperature
+55 °C

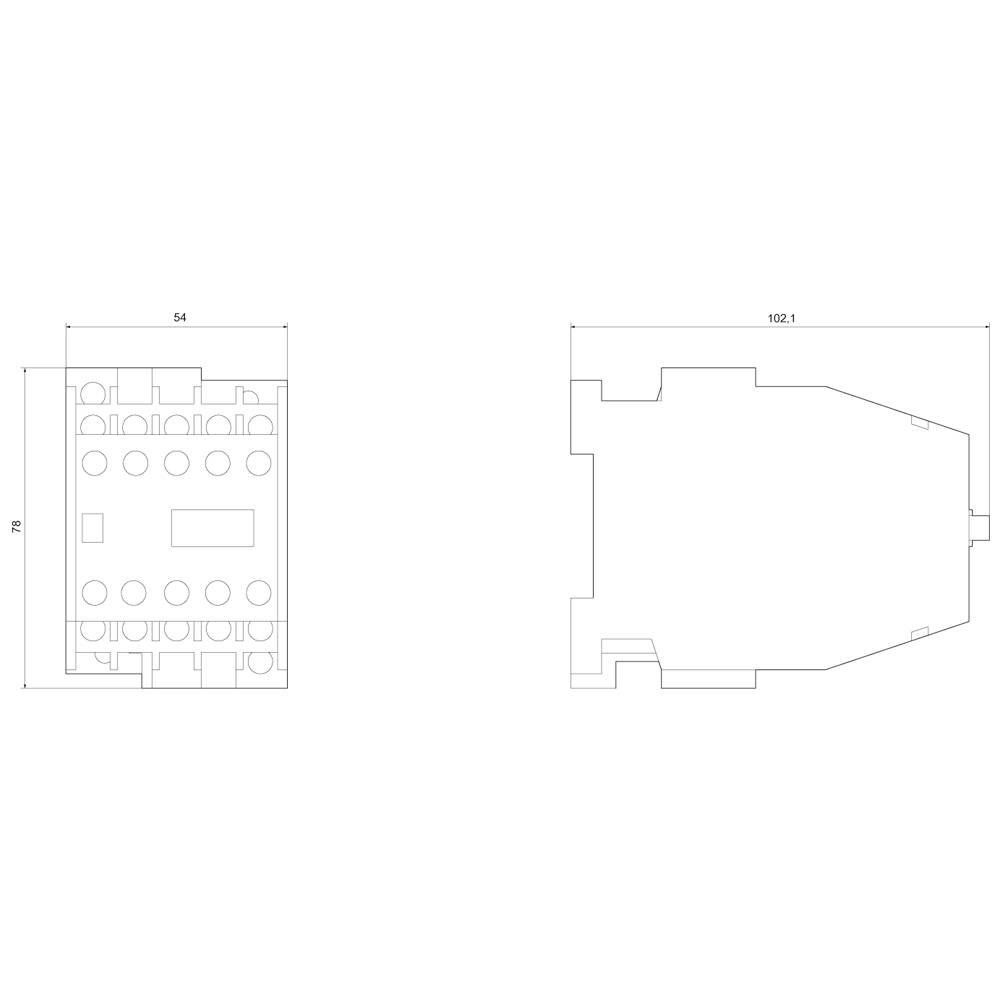

- Width
55 mm
- Height
78 mm
- Depth
102 mm
- Dim
(W x H x D) 55 x 78 x 102 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
8
2
6 A
0
220-220 V
220-220 V
FALSE
Screw connection
0
0
AC
Documents & Downloads
Datasheet
Datasheet 1734191 Siemens 3TH4382-0AN2 Auxiliary contactor 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1734191 Siemens 3TH4382-0AN2 Auxiliary contactor 1 pc(s)
Description
Contactor relay, 82E, EN 50011, 8 NO + 2 NC, flat connector terminal AC operation 230 V AC 50 Hz, 277 V 60 Hz
