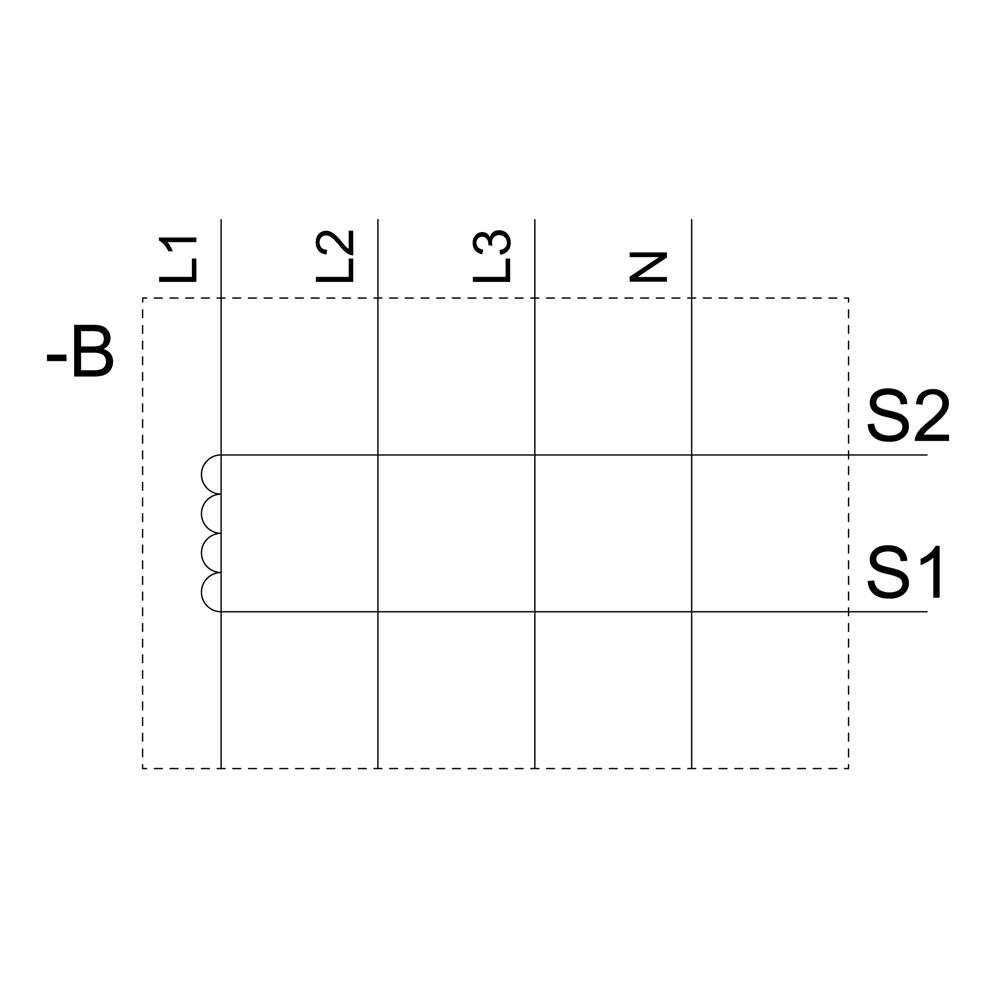

'Circuit Diagram: Three vertical supply lines L1, L2, L3 lead to the motor with windings S1 and S2. Arrow top left indicates -B.'

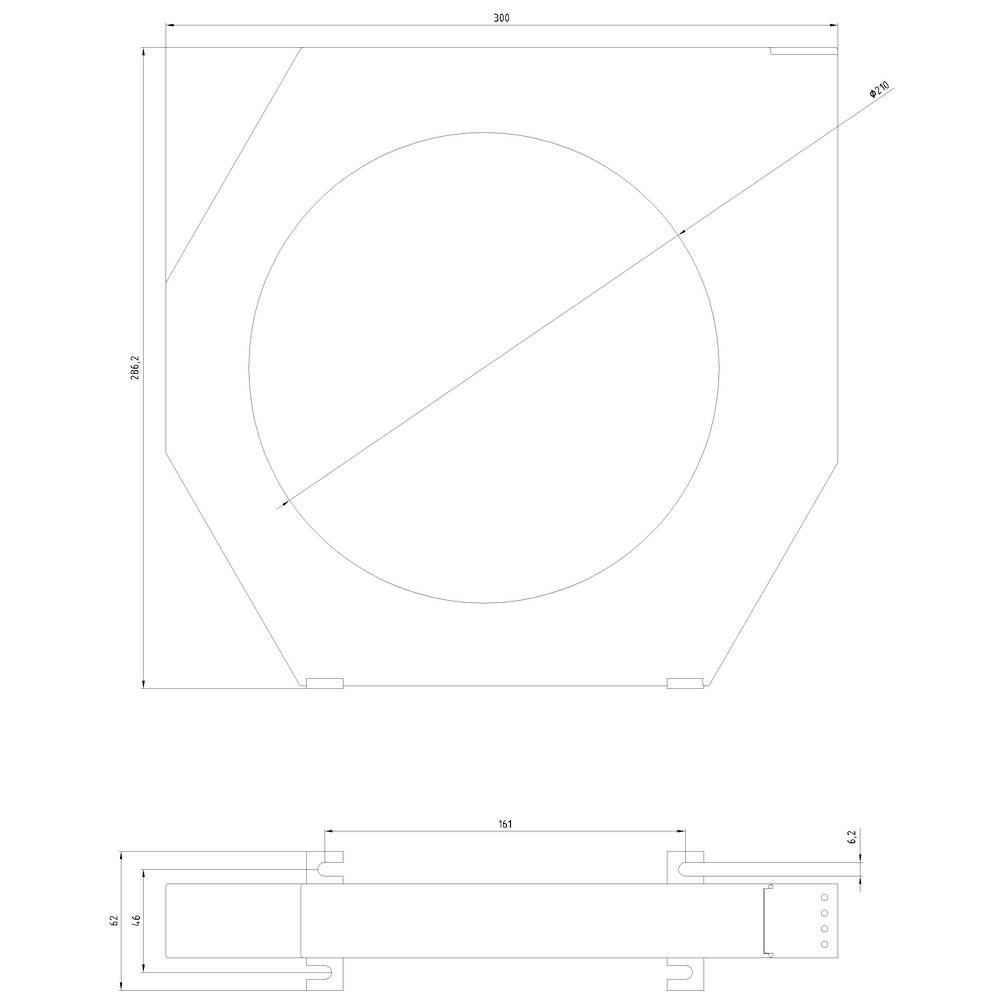

Technical drawing of a square component with a central, circular cutout. Dimensions and perspective are shown.

1/4

Image similar

Siemens

Datasheet (PDF)

Show alternatives

Sales and shipping:

Number

Piece(s)

Total (€ 542.02 / piece)

€

Report legal concerns

Highlights & Details

MCCB_IEC_FS100_100A_3P_55KA_ETU3_LSI

Line feed-through diameter 210 mm

Technical specifications

Ambient temperature: -25 °C to +60 °C
Operating voltage 1000 V

Type: 3UL2307-1A

Dim: (L x W x H) 286 x 300 x 62 mm

Weight: 1.817 kg

Height: 62 mm

Length: 286 mm

Width: 300 mm

Line feed-through diameter: 210 mm

Fitting type: Screw-fit

: 210 mm

: 40 A

: FALSE

: TRUE

Product type: LVDT

Documents & Downloads

Datasheet

Datasheet 1750483 Siemens 3UL2307-1A 3UL23071A LVDT Line feed-through diameter:210 mm Screw-fit 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1750483 Siemens 3UL2307-1A 3UL23071A LVDT Line feed-through diameter:210 mm Screw-fit 1 pc(s)

Description

circuit breaker 3VA2 IEC frame 100 breaking capacity class M Icu=55kA @ 415 V 3-pole, line protection ETU350, LSI, In=100A overload protection ir=40A ...100A short circuit protection Isd=1,5... 10 x Ir, iI=12 x In busbar connection shunt trip (stl) 110-127 V DC, AC 50/60 Hz 2 Auxiliary switch HQ 1 trip alarm switch HQ
