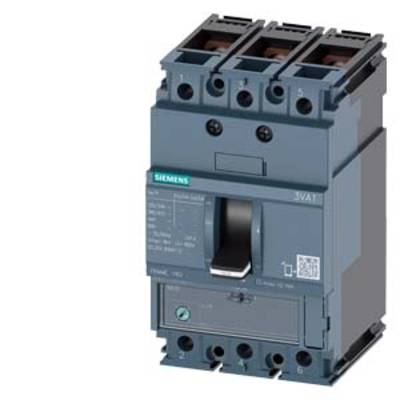

Siemens 3VA1125-5EE32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 18 - 25 A Switching voltage (max.): 690
EAN:
Part number:
Item no:
Product type
Circuit breaker
Amperage adjustment range (max.)
25 A
Connection
Screws
Type
3VA1125-5EE32-0AA0
Amperage adjustment range (min.)
18 A
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 284.87 / piece)
€
Technical specifications
- Design: System Protection
- Power loss: 2.83 W
- Weight: 0.9 kg
- Mechanical life: 20000
- Electrical life: 8000
- Isolation voltage: 800 V
- Mains frequency: 50/60 Hz.
- Product type
Circuit breaker
- Type
3VA1125-5EE32-0AA0
- Amperage adjustment range (min.)
18 A
- Amperage adjustment range (max.)
25 A
- Adjustment range (amperage)
18 - 25 A
- No. of pins
3-pin
- Switching voltage (max.)
690 V AC
- Mounting type
Fixed
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Breaking capacity rating
M
- OCR type
TM220
- Connection
Screws
IP40
- Depth
70 mm
- Width
76.2 mm
- Height
130 mm

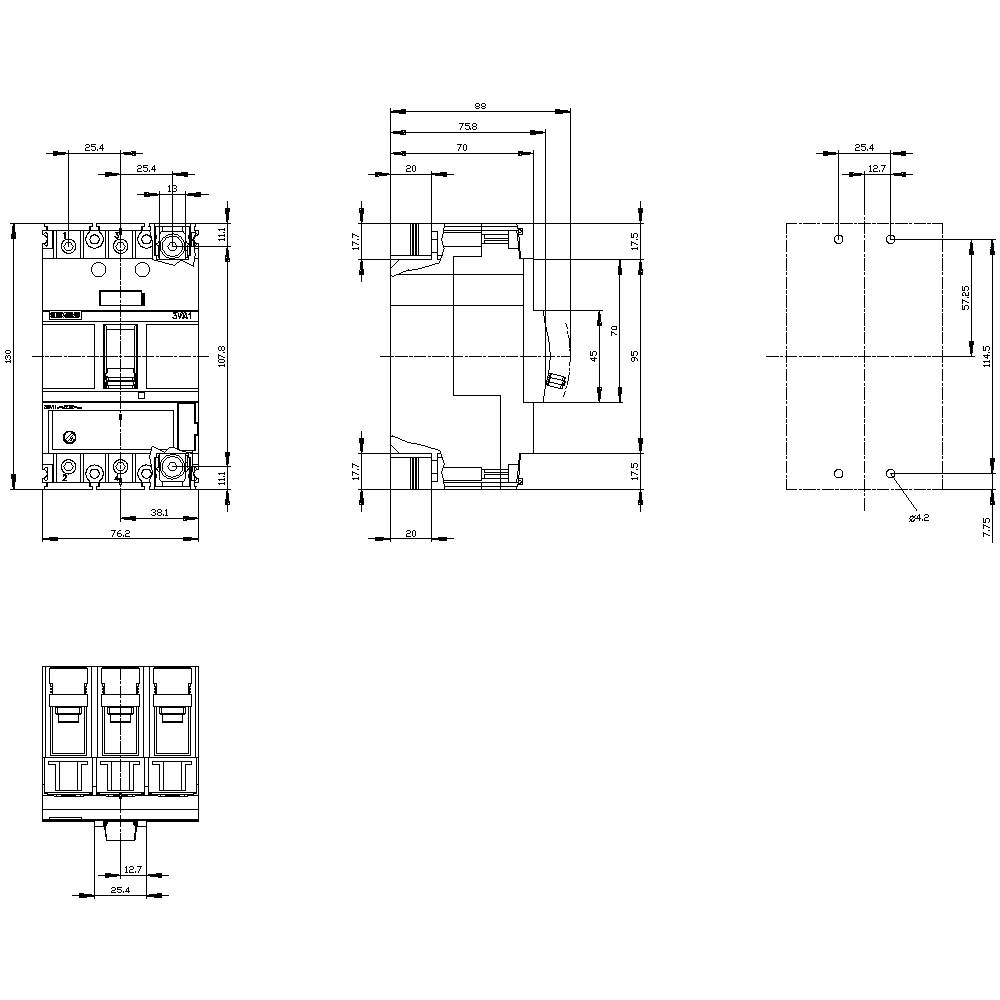

- Dim
(W x H x D) 76.2 x 130 x 70 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
0
0
25 A
3
0
8.5 W
IP40
Front side
FALSE
Screw connection
Rocker lever
55 kA
TRUE
FALSE
TRUE
Built-in device fixed built-in technique
TRUE
TRUE
Documents & Downloads
Datasheet
Datasheet 1730499 Siemens 3VA1125-5EE32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 18 - 25 A Switching voltage (max.): 690
Datasheet 1730499 Siemens 3VA1125-5EE32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 18 - 25 A Switching voltage (max.): 690
User & Safety Instructions
User & Safety Instructions 1730499 Siemens 3VA1125-5EE32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 18 - 25 A Switching voltage (max.): 690
Description
circuit breaker 3VA2 IEC frame 400 breaking capacity class H Icu=85kA @ 415 V 3-pole, line protection ETU850, LSI, In=400A overload protection Ir=160A ...400A short circuit protection Isd=0,6... 10 x In, iI=1,5 x In neutral protection optional with ext. ct, upto 160 busbar connection shunt trip (stl) 220-250 V DC 208-277 v ac 2 Auxiliary switch HQ 1 trip alarm switch HQ
