Siemens 3VA2580-6HK32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 320 - 800 A Switching voltage (max.): 69
EAN:
Part number:
Item no:
Product type
Circuit breaker
Amperage adjustment range (max.)
800 A
Connection
Screws
Type
3VA2580-6HK32-0AA0
Amperage adjustment range (min.)
320 A
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 3,738.66 / piece)
€
Technical specifications
- Design: System Protection
- Power loss: 45 W
- Mechanical life: 10000
- Electrical life: 5000
- Isolation voltage: 800 V
- Mains frequency: 50/60 Hz.
- Product type
Circuit breaker
- Type
3VA2580-6HK32-0AA0
- Amperage adjustment range (min.)
320 A
- Amperage adjustment range (max.)
800 A
- Adjustment range (amperage)
320 - 800 A
- No. of pins
3-pin
- Switching voltage (max.)
690 V AC
- Mounting type
Fixed
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Breaking capacity rating
H
- OCR type
ETU340
- Connection
Screws
IP40

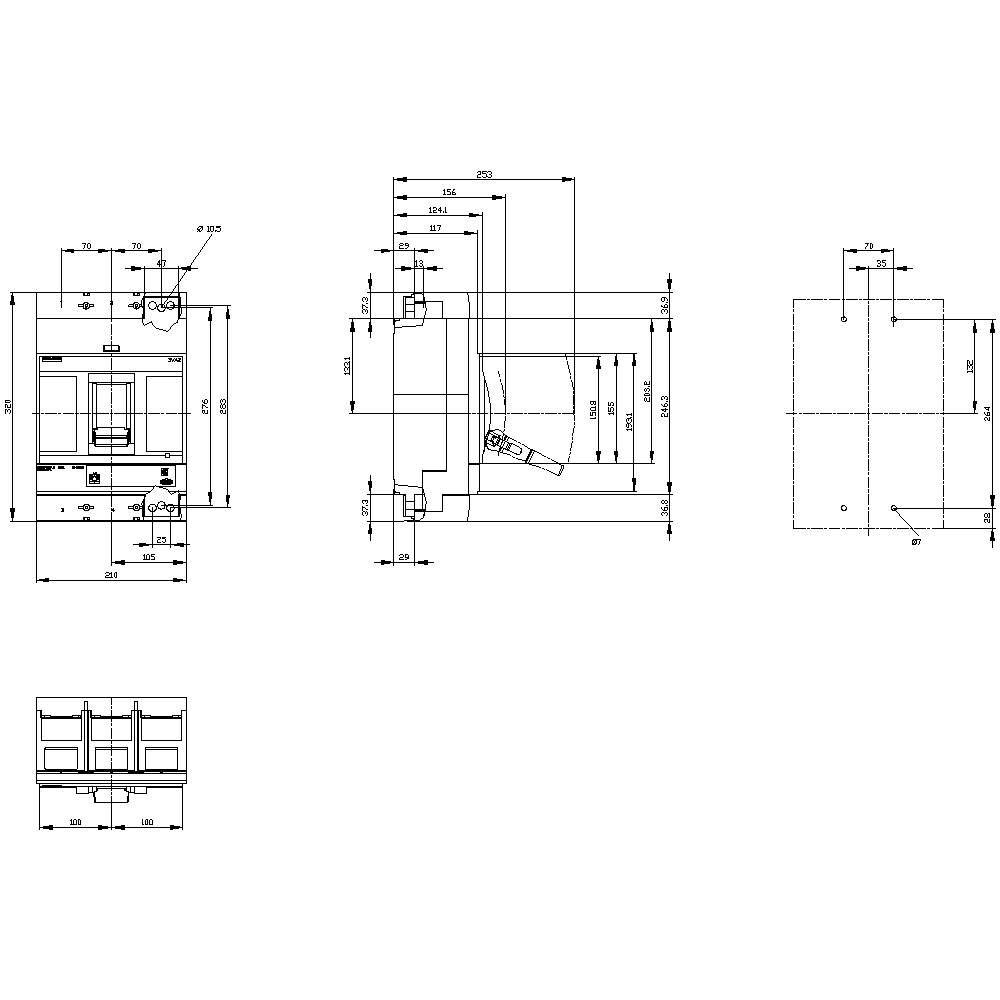

- Depth
120 mm
- Width
210 mm
- Height
320 mm
- Dim
(W x H x D) 210 x 320 x 120 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
0
0
800 A
3
320-800 A
0
690-690 V
231 W
IP40
Front side
FALSE
Screw connection
Rocker lever
FALSE
85 kA
8000-8000 A
TRUE
FALSE
FALSE
Built-in device fixed built-in technique
TRUE
TRUE
Documents & Downloads
Datasheet
Datasheet 1726047 Siemens 3VA2580-6HK32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 320 - 800 A Switching voltage (max.): 69
User & Safety Instructions
User & Safety Instructions 1726047 Siemens 3VA2580-6HK32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 320 - 800 A Switching voltage (max.): 69
Description
circuit breaker 3VA2 IEC frame 1000 breaking capacity class H Icu=85kA @ 415V 4-pole, line protection ETU860, LSIG, In=800A overload protection ir=320A ...800A short circuit protection Isd=0,6..10x In, iI=1,5..12x In neutral protection adjustable (off, upto 160%) ground-fault, switchable ig=0,2... 1 x In, tg=0,05-0,8s busbar connection
