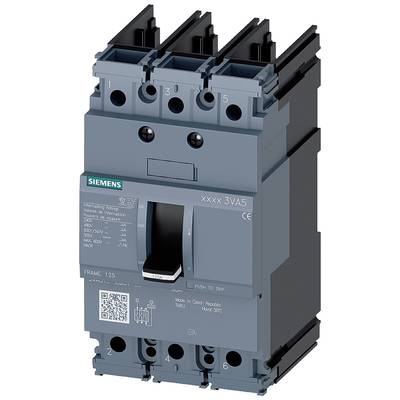

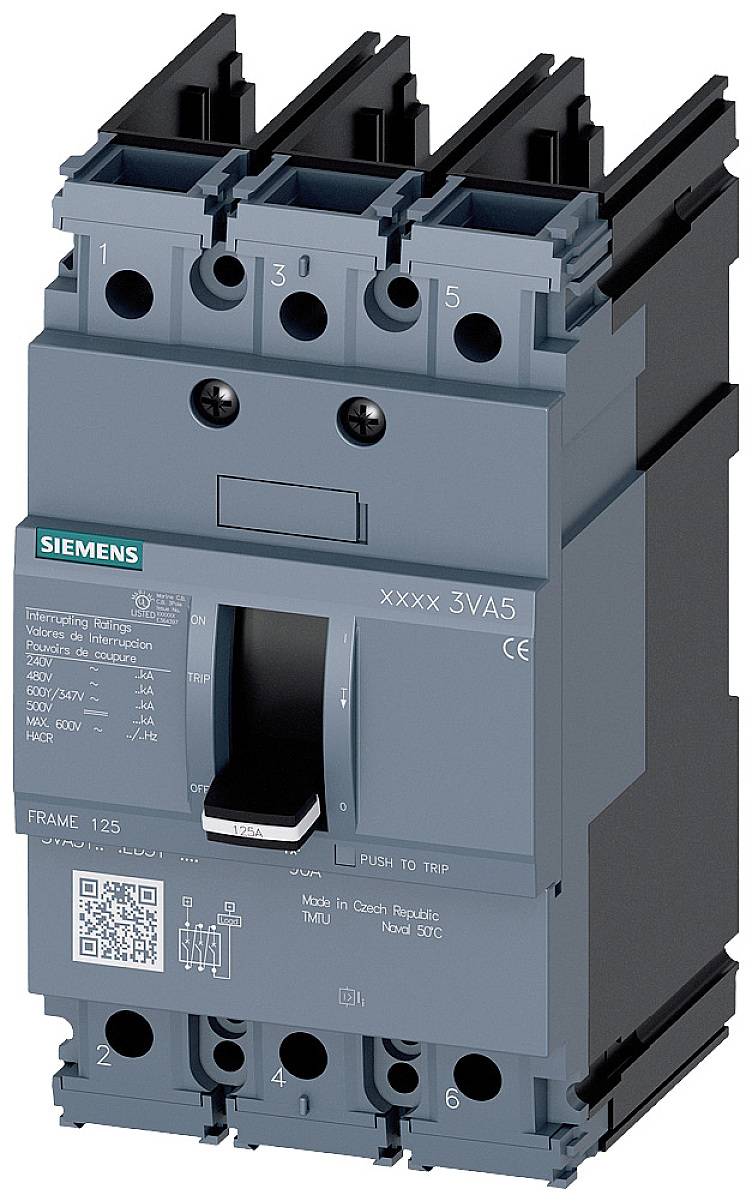

Siemens 3VA5110-6ED31-1AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 100 - 100 A Switching voltage (max.): 27
EAN:
Part number:
Item no:
Product type
Circuit breaker
Amperage adjustment range (max.)
100 A
Type
3VA5110-6ED31-1AA0
Amperage adjustment range (min.)
100 A
Adjustment range (amperage)
100 - 100 A
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 432.77 / piece)
€
Technical specifications
- Design: System Protection
- Power loss: 7.6 W
- Weight: 0.88 kg
- Mechanical life: 15000
- Electrical life: 8000
- Mains frequency: 50/60 Hz.
- Product type
Circuit breaker
- Type
3VA5110-6ED31-1AA0
- Amperage adjustment range (min.)
100 A
- Amperage adjustment range (max.)
100 A
- Adjustment range (amperage)
100 - 100 A
- No. of pins
3-pin
- Switching voltage (max.)
277 V AC
- Mounting type
Fixed
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Breaking capacity rating
H
- OCR type
TM210
IP40

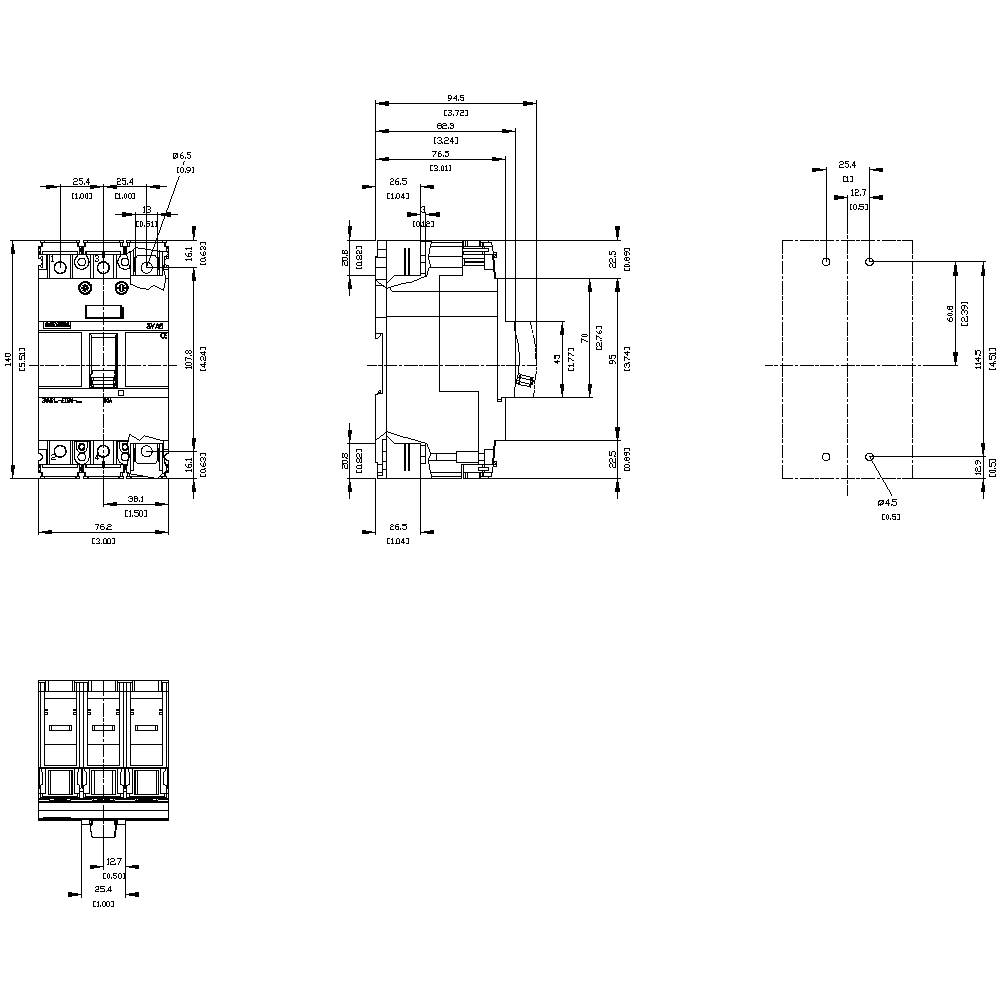

- Depth
76.5 mm
- Width
76.2 mm
- Height
140 mm
- Dim
(W x H x D) 76.2 x 140 x 76.5 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
0
0
100 A
3
100-100 A
0
22.8 W
IP40
Other
FALSE
Other
Rocker lever
1000-1000 A
TRUE
FALSE
TRUE
Built-in device fixed built-in technique
TRUE
TRUE
Documents & Downloads
Datasheet
Datasheet 1726880 Siemens 3VA5110-6ED31-1AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 100 - 100 A Switching voltage (max.): 27
User & Safety Instructions
User & Safety Instructions 1726880 Siemens 3VA5110-6ED31-1AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 100 - 100 A Switching voltage (max.): 27
Description
circuit breaker 3VA6 UL frame 250 breaking capacity class M 35kA @ 480V 3-pole, line protection ETU330, LIG, In=250A overload protection ir=100A ...250A short circuit protection iI=1,5...10 x In ground-fault-protection ig=0,2... 1 x In, tg=0,1/0,3s w/o connection
