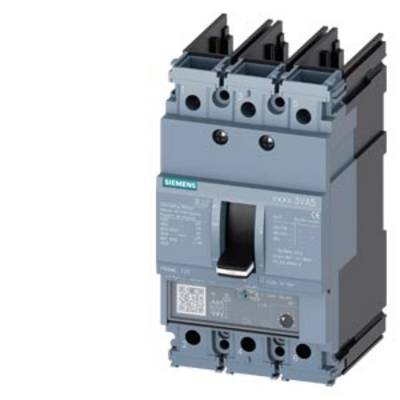

Siemens 3VA5112-6EC31-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 125 - 125 A Switching voltage (max.): 69
EAN:
Part number:
Item no:
Product type
Circuit breaker
Amperage adjustment range (max.)
125 A
Type
3VA5112-6EC31-0AA0
Amperage adjustment range (min.)
125 A
Adjustment range (amperage)
125 - 125 A
Datasheet (PDF)
Technical specifications
- Design: System Protection
- Power loss: 9.7 W
- Weight: 1.01 kg
- Mechanical life: 15000
- Electrical life: 8000
- Isolation voltage: 800 V
- Mains frequency: 50/60 Hz.
- Product type
Circuit breaker
- Type
3VA5112-6EC31-0AA0
- Amperage adjustment range (min.)
125 A
- Amperage adjustment range (max.)
125 A
- Adjustment range (amperage)
125 - 125 A
- No. of pins
3-pin
- Switching voltage (max.)
690 V AC
- Mounting type
Fixed
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Breaking capacity rating
H
- OCR type
TM230
IP40
- Depth
76.5 mm
- Width
76.2 mm
- Height
140 mm

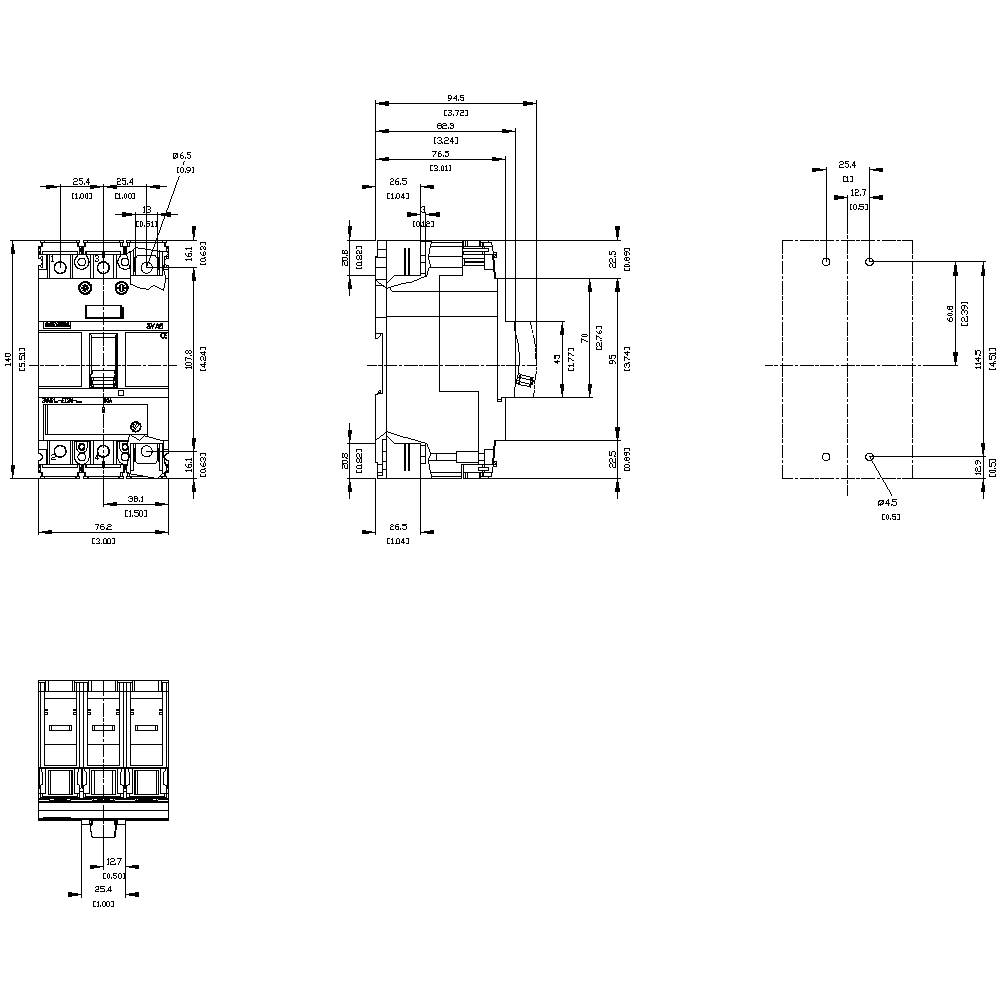

- Dim
(W x H x D) 76.2 x 140 x 76.5 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
0
0
125 A
3
125-125 A
0
690-690 V
30.1 W
IP40
Other
FALSE
Other
Rocker lever
70 kA
625-1250 A
TRUE
FALSE
TRUE
Built-in device fixed built-in technique
TRUE
TRUE
Documents & Downloads
Datasheet
Datasheet 1726909 Siemens 3VA5112-6EC31-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 125 - 125 A Switching voltage (max.): 69
User & Safety Instructions
User & Safety Instructions 1726909 Siemens 3VA5112-6EC31-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 125 - 125 A Switching voltage (max.): 69
Description
Handle with masking frame standard with tolerance compensation with door opening position Accessory for: 3VM 100/160/250 3VA1/2 100/160/250 3VA5/6 125/150/250
